Menu - Standardsortiment

Adapter

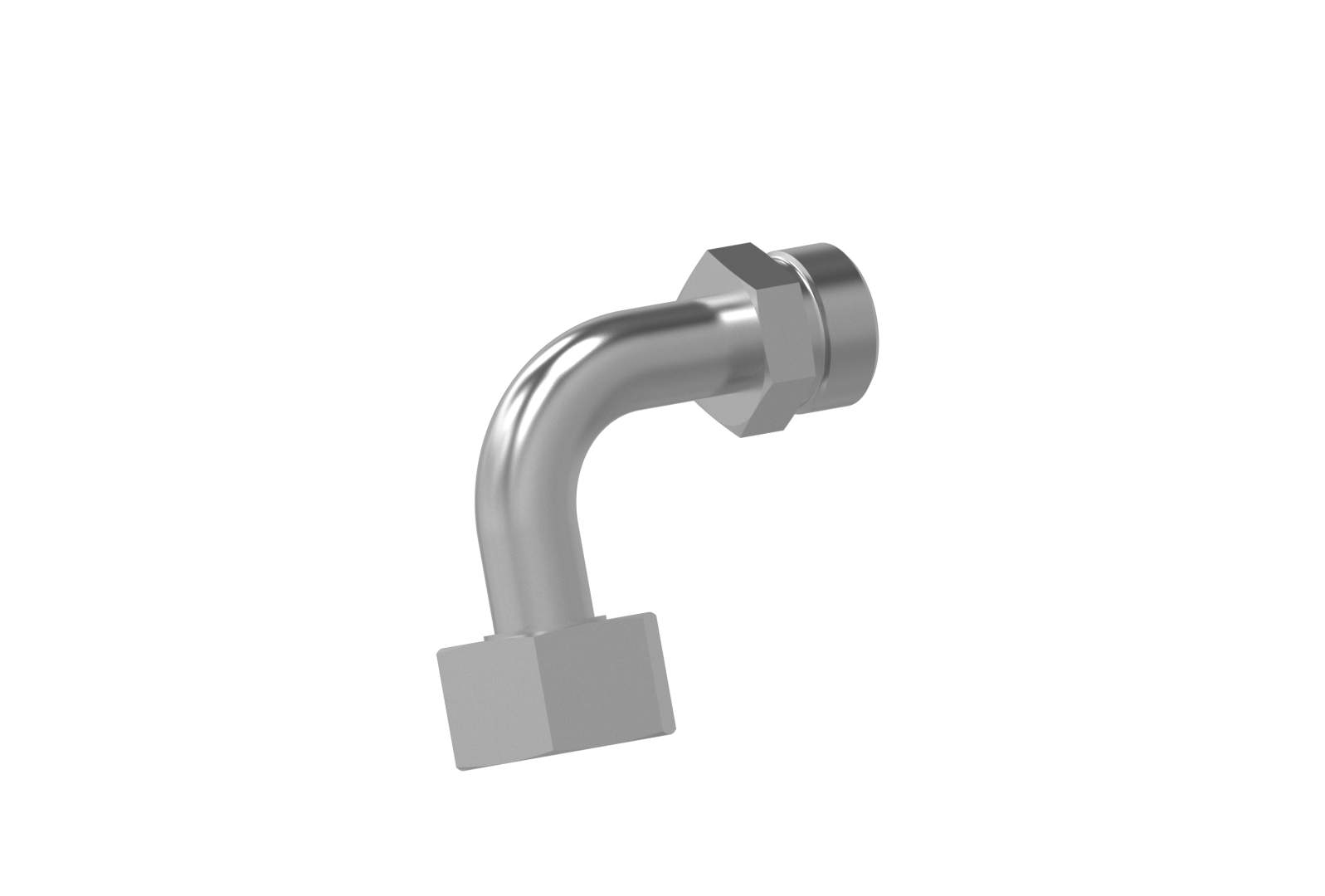

KOVO 90°

Anschluss einseitig: Dichtkopf 24° Außenkonus O-Ring-dichtend mit metrischer Mutter L / S-Reihe
anderseitig: metrisches Außengewinde mit 24° Innenkonus und Rohranschluss L / S-Reihe
Werkstoff Stahl
Oberfläche galvanisch verzinkt
Zubehör O-Ring DKOL/DKOS
Optionen abweichende Längen und Winkel auf Anfrage
Bestell-Nr. RA1 RA2 T1 T2 SW1 in mm SW2 in mm A±3 in mm B±3 in mm
90KOVO 6-L/ 6-L 6-L 6-L M 12x1.5 M 12x1.5 14 12 26 30
90KOVO 6-S/ 6-S 6-S 6-S M 14x1.5 M 14x1.5 17 14 26 33
90KOVO 8-L/ 8-L 8-L 8-L M 14x1.5 M 14x1.5 17 14 30 32
90KOVO 8-S/ 8-S 8-S 8-S M 16x1.5 M 16x1.5 19 17 32 35
90KOVO 10-L/10-L 10-L 10-L M 16x1.5 M 16x1.5 19 17 34 40
90KOVO 10-S/10-S 10-S 10-S M 18x1.5 M 18x1.5 22 19 35 38
90KOVO 12-L/12-L 12-L 12-L M 18x1.5 M 18x1.5 22 19 34 36
90KOVO 12-S/12-S 12-S 12-S M 20x1.5 M 20x1.5 24 22 36 40
90KOVO 14-S/14-S 14-S 14-S M 22x1.5 M 22x1.5 27 22 37 41
90KOVO 15-L/15-L 15-L 15-L M 22x1.5 M 22x1.5 27 22 43 49
90KOVO 16-S/16-S 16-S 16-S M 24x1.5 M 24x1.5 30 24 45 49
90KOVO 18-L/18-L 18-L 18-L M 26x1.5 M 26x1.5 32 27 52 54
90KOVO 20-S/20-S 20-S 20-S M 30x2 M 30x2 36 30 54 59
90KOVO 22-L/22-L 22-L 22-L M 30x2 M 30x2 36 30 62 68
90KOVO 25-S/25-S 25-S 25-S M 36x2 M 36x2 46 36 65 77
90KOVO 28-L/28-L 28-L 28-L M 36x2 M 36x2 41 36 71 77
90KOVO 30-S/30-S 30-S 30-S M 42x2 M 42x2 50 46 76 90
90KOVO 35-L/35-L 35-L 35-L M 45x2 M 45x2 50 46 84 91
90KOVO 38-S/38-S 38-S 38-S M 52x2 M 52x2 60 55 87 96
90KOVO 42-L/42-L 42-L 42-L M 52x2 M 52x2 60 55 90 100

Produktinformationen zuletzt aktualisiert am: 14.09.2023 13:40:27
