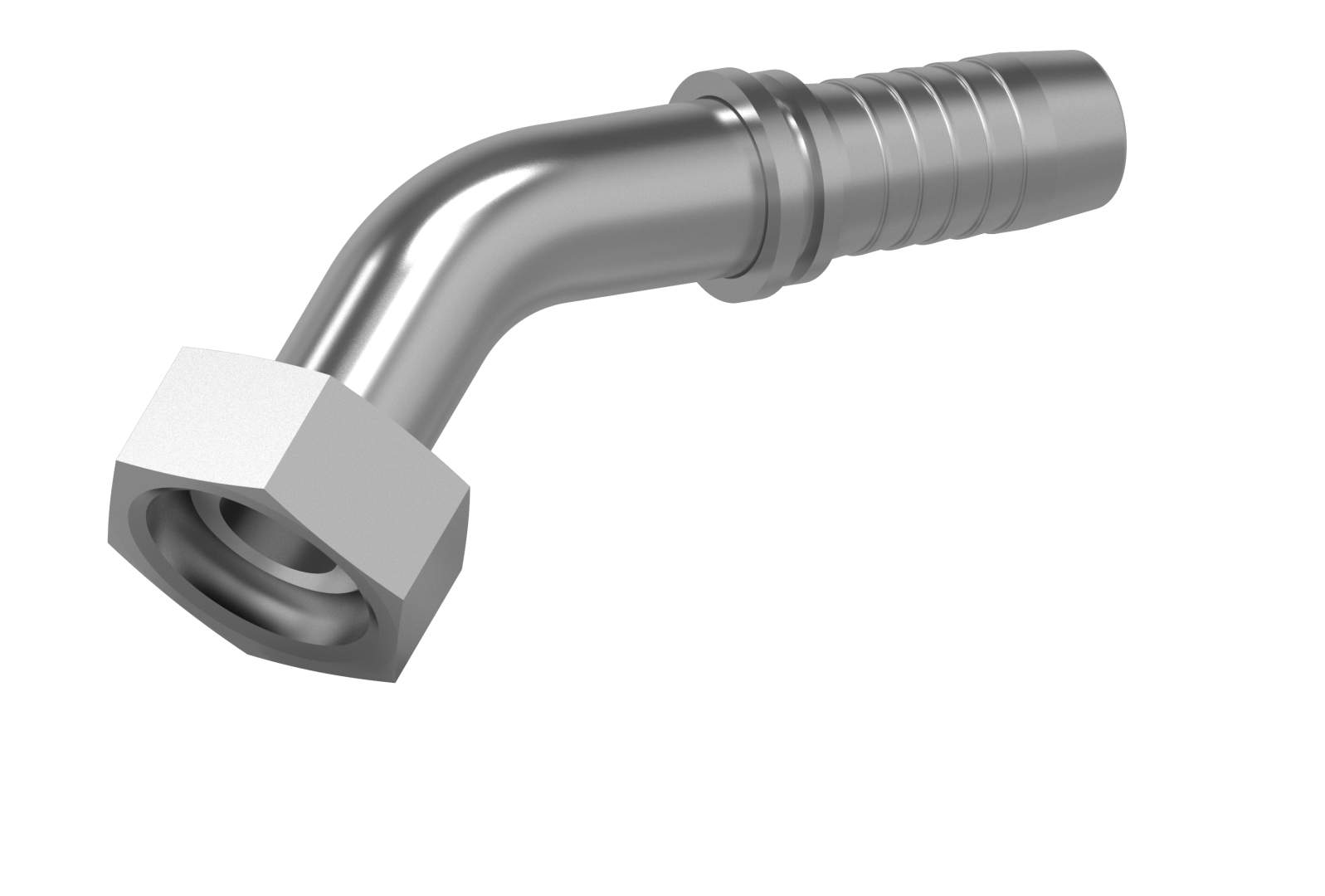

DKOS 45°

Anschluss Dichtkopf 24° Außenkonus O-Ring-dichtend mit metrischer Mutter S-Reihe
Norm ISO 8434-1
Anwendung TE / SN / SC / SN-K / PTFE Schläuche
Werkstoff Stahl
Oberfläche galvanisch verzinkt
Hinweis a) nicht nach ISO 8434-1

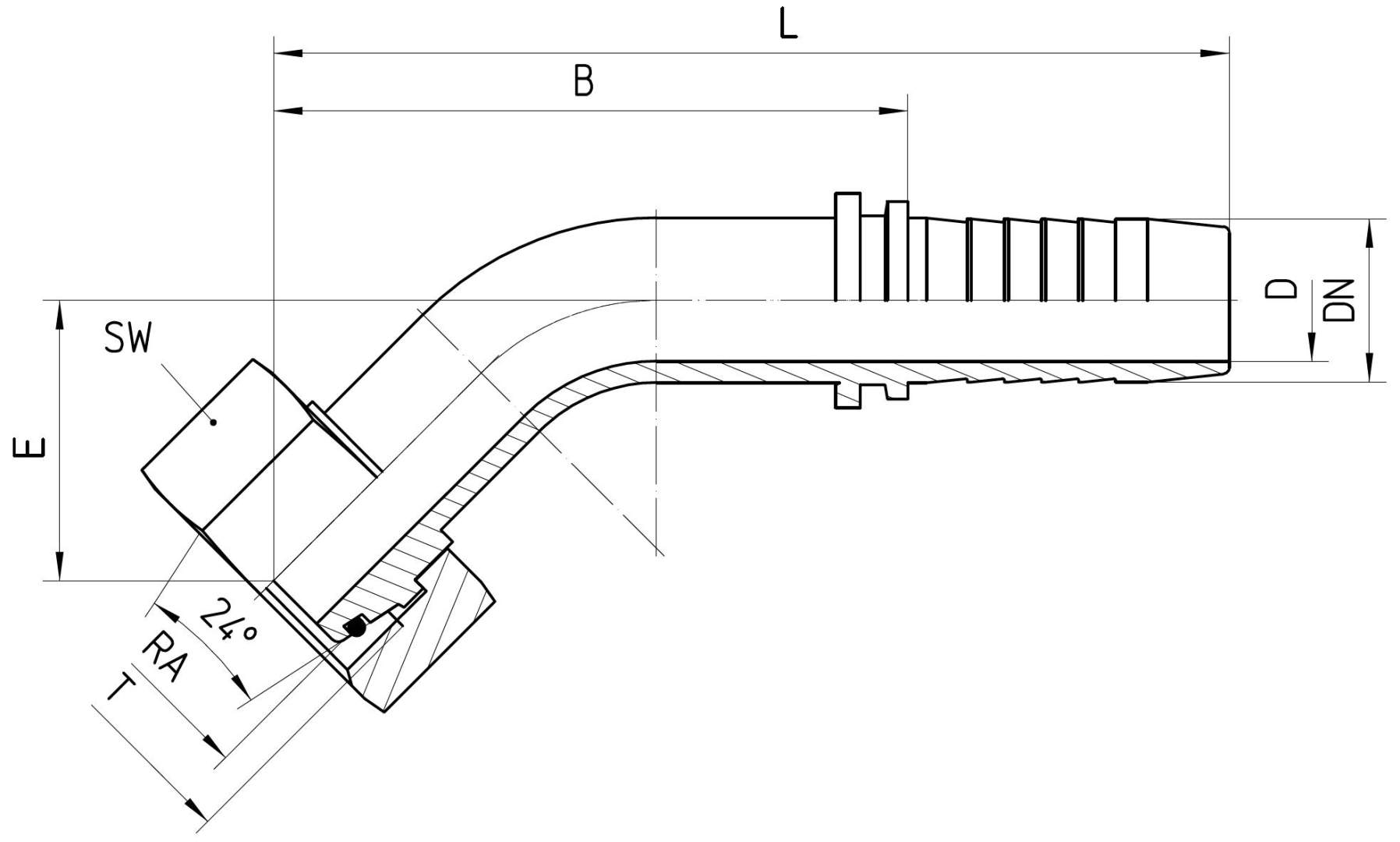

Bestell-Nr. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm Hinweis
1.085-03-04 06 8S M 16x1.5 19 4,0 18 38 65
1.085-04-04 06 10S M 18x1.5 22 4,0 18 39 66
1.085-05-04 06 12S M 20x1.5 24 4,0 19 39 66
1.085-04-05 08 10S M 18x1.5 22 5,5 19 42 69
1.085-05-05 08 12S M 20x1.5 24 5,5 19 42 69
1.085-06-05 08 14S M 22x1.5 27 5,5 20 43 70
1.085-05-06 10 12S M 20x1.5 24 7,0 18 41 71
1.085-06-06 10 14S M 22x1.5 27 7,0 20 41 71
1.085-08-06 10 16S M 24x1.5 30 7,0 20 41 71
1.085-06-08 12 14S M 22x1.5 27 7,0 24 54 85
1.085-08-08 12 16S M 24x1.5 30 10,0 24 54 85
1.085-10-08 12 20S M 30x2.0 36 10,0 29 68 99
1.085-08-10 16 16S M 24x1.5 30 10,0 29 65 99
1.085-10-10 16 20S M 30x2.0 36 12,6 30 66 100
1.085-12-10/SW41 16 25S M 36x2.0 41 12,6 31 67 101 a
1.085-12-10/SW46 16 25S M 36x2.0 46 12,6 31 67 101
1.085-10-12 19 20S M 30x2.0 36 13,0 34 78 117
1.085-12-12/SW41 19 25S M 36x2.0 41 14,8 36 79 118 a
1.085-12-12/SW46 19 25S M 36x2.0 46 14,8 36 79 118
1.085-16-12 19 30S M 42x2.0 50 14,8 34 74 113
1.085-12-16/SW46 25 25S M 36x2.0 46 14,8 40 89 135
1.085-16-16 25 30S M 42x2.0 50 21,0 40 88 134
1.085-20-16 25 38S M 52x2.0 60 21,1 41 83 129
1.085-16-20 31 30S M 42x2.0 50 21,0 42 112 166
1.085-20-20 31 38S M 52x2.0 60 26,5 40 109 163
1.085-20-24 38 38S M 52x2.0 60 27,0 54 118 175
1.085-24-24 38 50S M 68x2.0 80 32,8 49 117 174
