Adapters

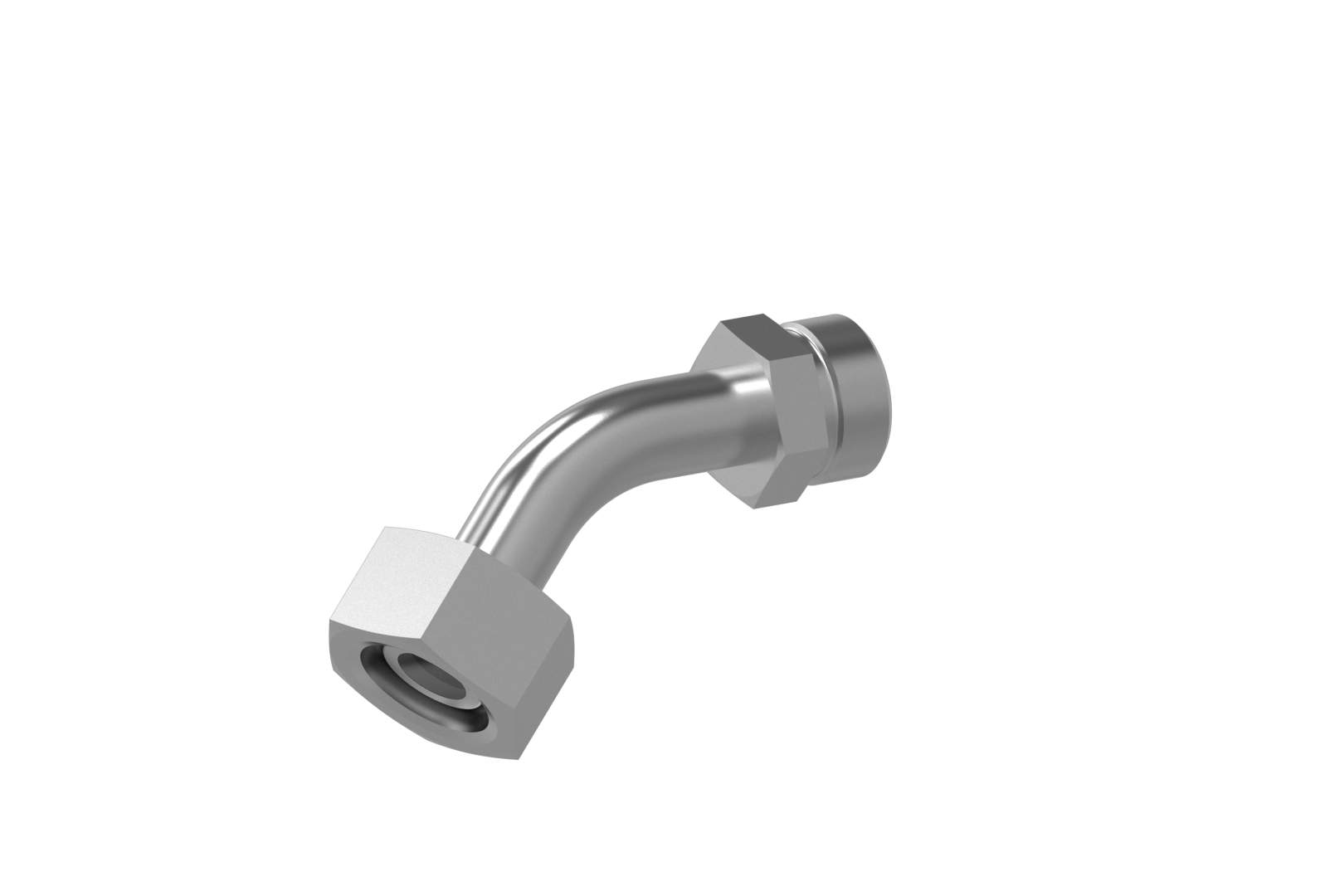

KOVO 45°

connection
both sides: 24° cone O-ring sealing with metric nut L/S series
metric external thread with 24° internal cone and pipe connection L/S series

Material
Steel

Surface protection
Zinc-electroplated

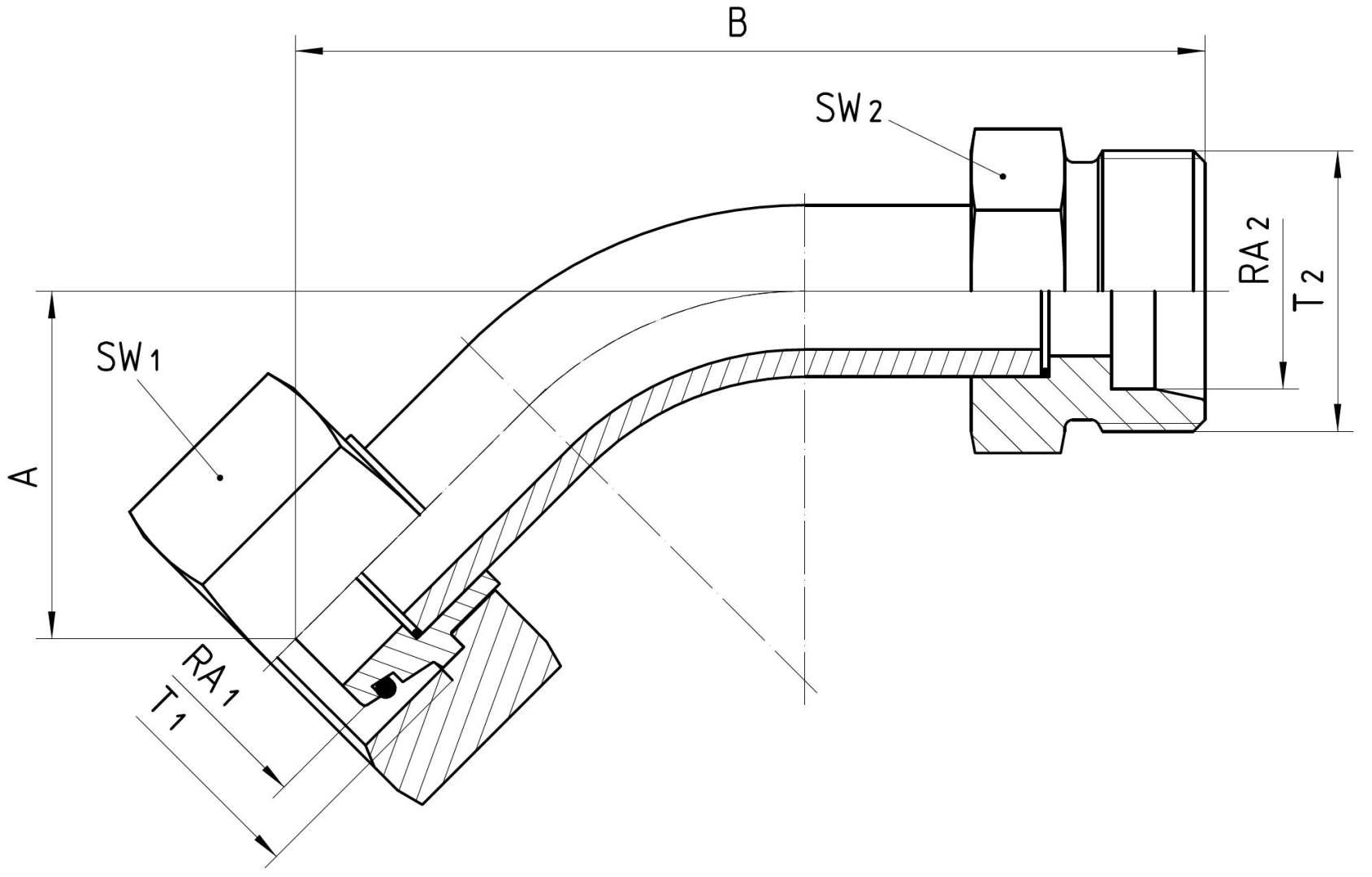

Order no. RA1 RA2 T1 T2 SW1 in mm SW2 in mm A±3 in mm B±3 in mm Note
45KOVO 6-L/ 6-L 6-L 6-L M 12x1.5 M 12x1.5 14 12 17 53
45KOVO 6-S/ 6-S 6-S 6-S M 14x1.5 M 14x1.5 17 14 16 53
45KOVO 8-L/ 8-L 8-L 8-L M 14x1.5 M 14x1.5 17 14 19 54
45KOVO 8-S/ 8-S 8-S 8-S M 16x1.5 M 16x1.5 19 17 19 56
45KOVO 10-L/10-L 10-L 10-L M 16x1.5 M 16x1.5 19 17 23 63
45KOVO 10-S/10-S 10-S 10-S M 18x1.5 M 18x1.5 22 19 22 55
45KOVO 12-L/12-L 12-L 12-L M 18x1.5 M 18x1.5 22 19 20 64
45KOVO 12-S/12-S 12-S 12-S M 20x1.5 M 20x1.5 24 22 20 57
45KOVO 14-S/14-S 14-S 14-S M 22x1.5 M 22x1.5 27 22 22 63
45KOVO 15-L/15-L 15-L 15-L M 22x1.5 M 22x1.5 27 22 23 70
45KOVO 16-S/16-S 16-S 16-S M 24x1.5 M 24x1.5 30 24 24 70
45KOVO 18-L/18-L 18-L 18-L M 26x1.5 M 26x1.5 32 27 24 68
45KOVO 20-S/20-S 20-S 20-S M 30x2,0 M 30x2,0 36 30 27 76
45KOVO 22-L/22-L 22-L 22-L M 30x2,0 M 30x2,0 36 30 32 82
45KOVO 25-S/25-S 25-S 25-S M 36x2,0 M 36x2,0 46 36 34 91
45KOVO 28-L/28-L 28-L 28-L M 36x2,0 M 36x2,0 41 36 32 81
45KOVO 30-S/30-S 30-S 30-S M 42x2,0 M 42x2,0 50 46 33 93
45KOVO 35-L/35-L 35-L 35-L M 45x2,0 M 45x2,0 50 46 34 89
45KOVO 38-S/38-S 38-S 38-S M 52x2,0 M 52x2,0 60 55 45 125
45KOVO 42-L/42-L 42-L 42-L M 52x2,0 M 52x2,0 60 55 38 99 *

Accessories
3437309

Optionen
deviating angle and dimensions on request

Product information last updated on 23.11.2018 09:28:50
