Hydraulic hoses

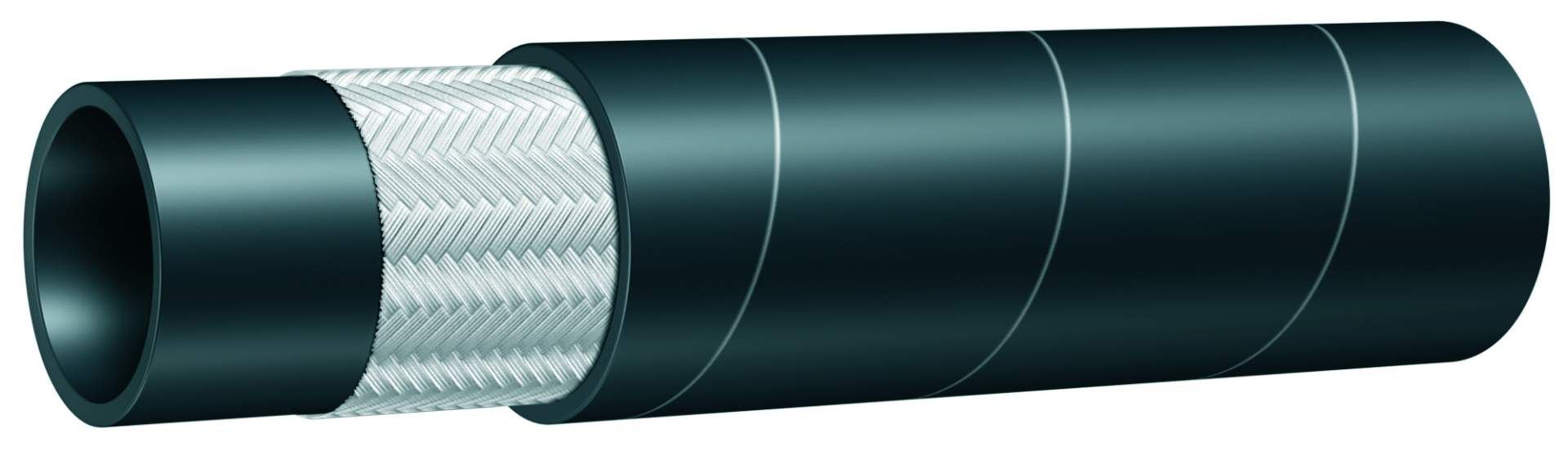

2 TE

Tube
oil and water resistant synthetic rubber

Reinforcement
several texile netting inserts

Cover
synthetic rubber with oil and water resistance

Temperature
-40°C to + 100°C

Standard
DIN EN 854

Order no. DN mm internal Ø in mm external Ø in mm working pressure in mm brust pressure in bar min.bending radius R in mm weight in kg/m
05-04 6 6,4 13,4 75 300 40 0,16
05-05 8 7,9 14,3 68 272 50 0,20
05-06 10 9,5 16,5 63 252 60 0,21
05-08 12 12,7 19,7 58 232 70 0,27
05-10 16 15,9 23,9 50 200 90 0,37
05-12 19 19,0 27,0 45 180 110 0,44
05-16 25 25,4 34,4 40 160 150 0,62

Product information last updated on 20.06.2018 12:01:48


Request this product
Are you interested in this product? Our contact partners are happy to answer any questions you may have about our products.

Individual customisations?
Do you require special sizes, different angles or complete customisation? We provide solutions tailored to your specific requirements.

24 hours Immediate service

Order today by 4 pm. If stock is available, dispatch will be on the same day.
