Pressure fittings

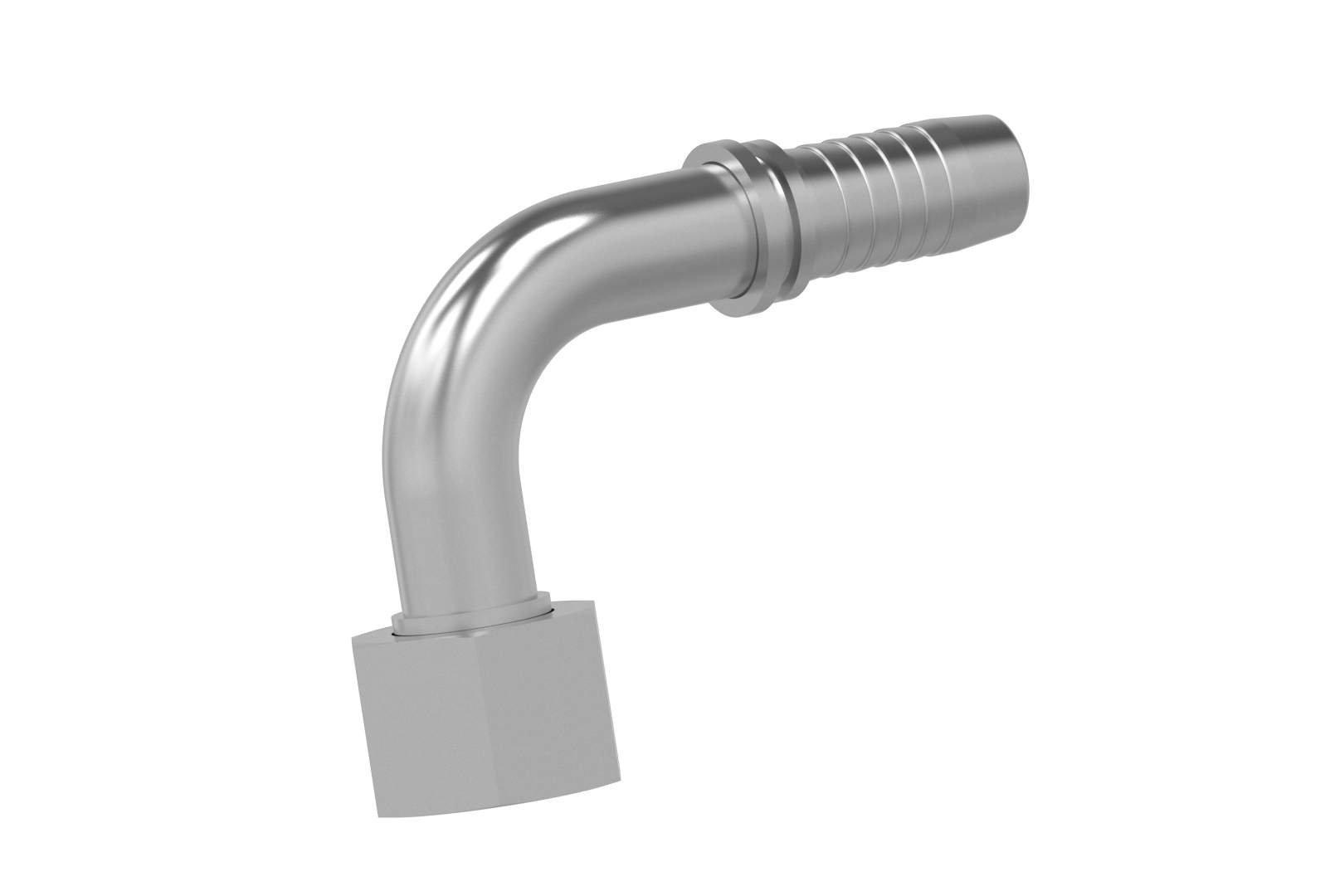

ORFS 90°

Connection Flat sealing head with UN nut
Standard ISO 8434-3
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

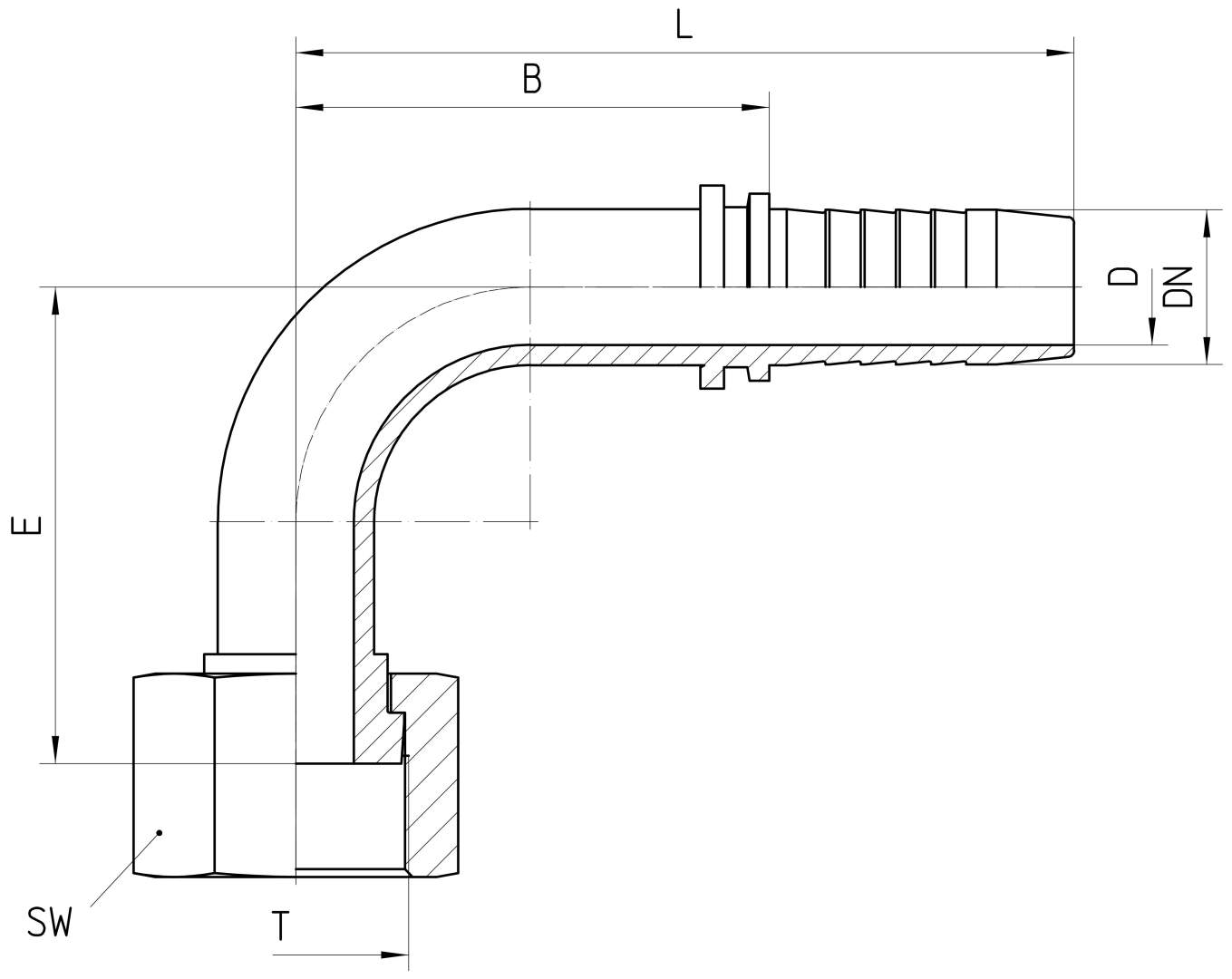

Order no. DN in mm T in UNF/UN/UNS SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.355-04-04 06 9/16-18 UNF 17 4,0 27 26 53
1.355-06-04 06 11/16-16 UN 22 4,0 27 26 53
1.355-06-05 08 11/16-16 UN 22 5,5 28 30 57
1.355-04-06 10 9/16-18 UNF 17 4,0 30 43 73
1.355-06-06 10 11/16-16 UN 22 6,6 29 30 60
1.355-08-06 10 13/16-16 UN 24 7,0 30 30 60
1.355-06-08 12 11/16-16 UN 22 6,6 45 49 80
1.355-08-08 12 13/16-16 UN 24 10,0 39 42 73
1.355-10-08 12 1-14 UNS 30 10,0 39 42 73
1.355-08-10 16 13/16-16 UN 24 10,0 40 52 86
1.355-10-10 16 1-14 UNS 30 12,6 49 52 86
1.355-12-10 16 1 3/16-12 UN 36 12,6 51 52 86
1.355-12-12 19 1 3/16-12 UN 36 14,8 61 60 99
1.355-16-12 19 1 7/16-12 UN 41 14,8 62 60 99
1.355-16-16 25 1 7/16-12 UN 41 21,0 67 68 114
1.355-20-16 25 1 11/16-12 UN 50 21,1 70 68 114
1.355-20-20 31 1 11/16-12 UN 50 26,5 85 94 148
1.355-24-20 31 2-12 UN 60 26,5 105 94 148
1.355-24-24 38 2-12 UN 60 32,8 104 105 162
