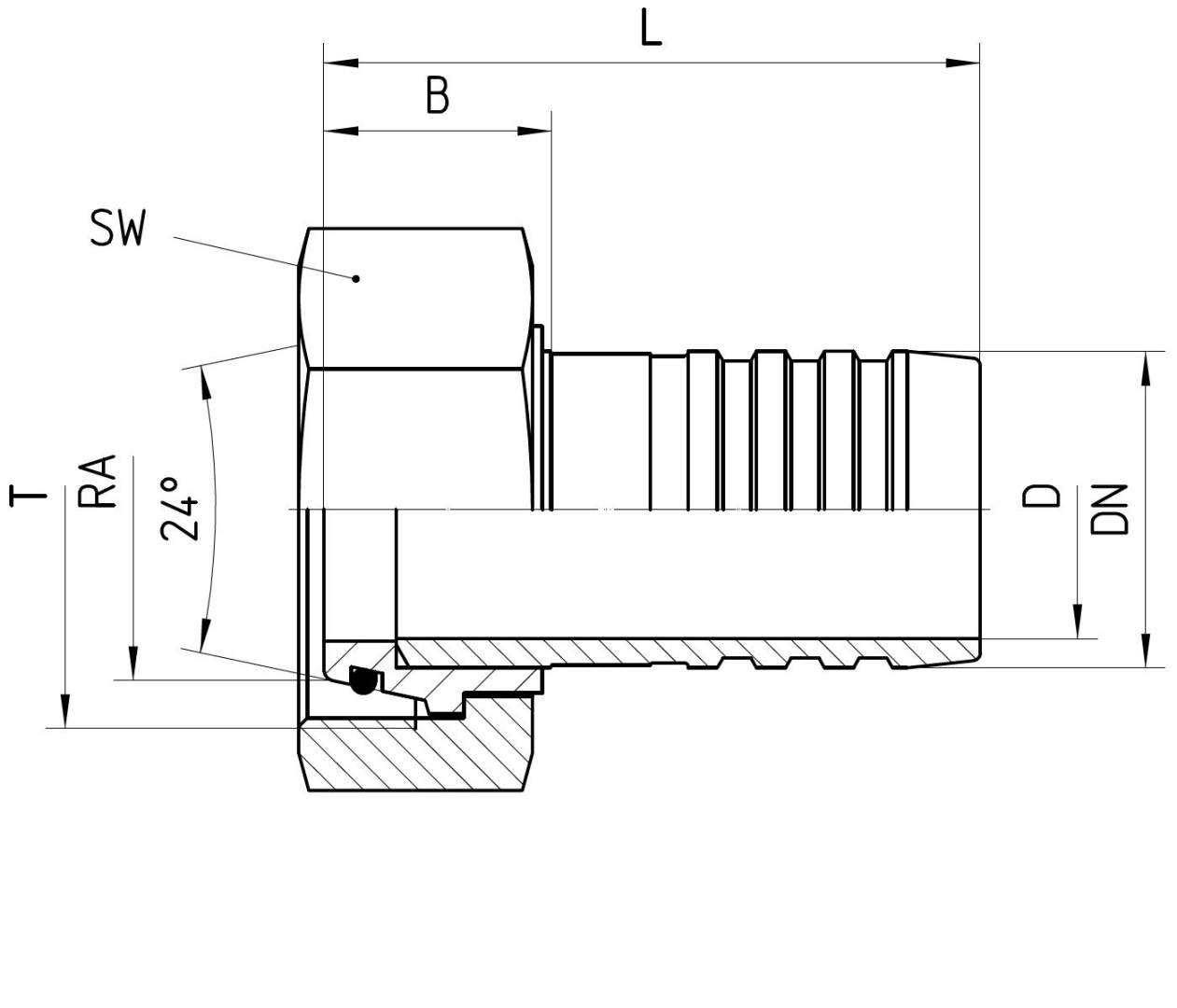

Connection | Sealing head 24° outside cone O-ring sealing with metric nut L series |
Standard | ISO 8434-1 |
Application | 14A / 17A flexible tubes |
Material | Steel |
Surface protection | Zinc-electroplated |
Order no. | DN in mm | RA | T | SW in mm | D in mm | B±3 in mm | L±3 in mm | Order No. | B±3 in mm | L±3 in mm |
---|---|---|---|---|---|---|---|---|---|---|
17.051-10-12 | 19 | 18L | M26x1.5 | 32 | 14 | 28 | 108 | 17.051K-10-12 | 23 | 67 |
17.051-12-12 | 19 | 22L | M30x2.0 | 36 | 14 | 28 | 108 | 17.051K-12-12 | 24 | 68 |
17.051-16-12 | 19 | 28L | M36x2.0 | 41 | 14 | 28 | 108 | 17.051K-16-12 | 24 | 68 |
17.051-12-16 | 25 | 22L | M30x2.0 | 36 | 19 | 28 | 108 | 17.051K-12-16 | 46 | 90 |
17.051-16-16 | 25 | 28L | M36x2.0 | 41 | 19 | 28 | 108 | 17.051K-16-16 | 24 | 68 |
17.051-20-16 | 25 | 35L | M45x2.0 | 50 | 19 | 30 | 110 | 17.051K-20-16 | 26 | 70 |
17.051-24-16 | 25 | 42L | M52x2.0 | 60 | 19 | 30 | 110 | 17.051K-24-16 | 26 | 70 |
17.051-12-20 | 31 | 22L | M30x2.0 | 36 | 26 | 72 | 152 | 17.051K-12-20 | 44 | 88 |
17.051-16-20 | 31 | 28L | M36x2.0 | 41 | 26 | 45 | 125 | 17.051K-16-20 | 41 | 85 |
17.051-20-20 | 31 | 35L | M45x2.0 | 50 | 26 | 30 | 110 | 17.051K-20-20 | 26 | 70 |
17.051-24-20 | 31 | 42L | M52x2.0 | 60 | 26 | 38 | 118 | 17.051K-24-20 | 26 | 70 |
17.051-12-24 | 38 | 22L | M30x2.0 | 36 | 32 | 63 | 143 | 17.051K-12-24 | 56 | 100 |
17.051-16-24 | 38 | 28L | M36x2.0 | 41 | 32 | 65 | 145 | 17.051K-16-24 | 46 | 90 |
17.051-20-24 | 38 | 35L | M45x2.0 | 50 | 32 | 47 | 127 | 17.051K-20-24 | 43 | 87 |
17.051-24-24 | 38 | 42L | M52x2.0 | 60 | 32 | 30 | 110 | 17.051K-24-24 | 26 | 70 |
17.051-16-32 | 51 | 28L | M36x2.0 | 41 | 44 | 68 | 160 | 17.051K-16-32 | 70 | 115 |
17.051-20-32 | 51 | 35L | M45x2.0 | 50 | 44 | 67 | 159 | 17.051K-20-32 | 55 | 100 |
17.051-24-32 | 51 | 42L | M52x2.0 | 60 | 44 | 69 | 161 | 17.051K-24-32 | 58 | 103 |
17.051-20-36 | 60 | 35L | M45x2.0 | 50 | 53 | 63 | 155 | 17.051K-20-36 | 70 | 115 |
17.051-24-36 | 60 | 42L | M52x2.0 | 60 | 53 | 63 | 155 | 17.051K-24-36 | 70 | 115 |
