Suction and low-pressure fittings

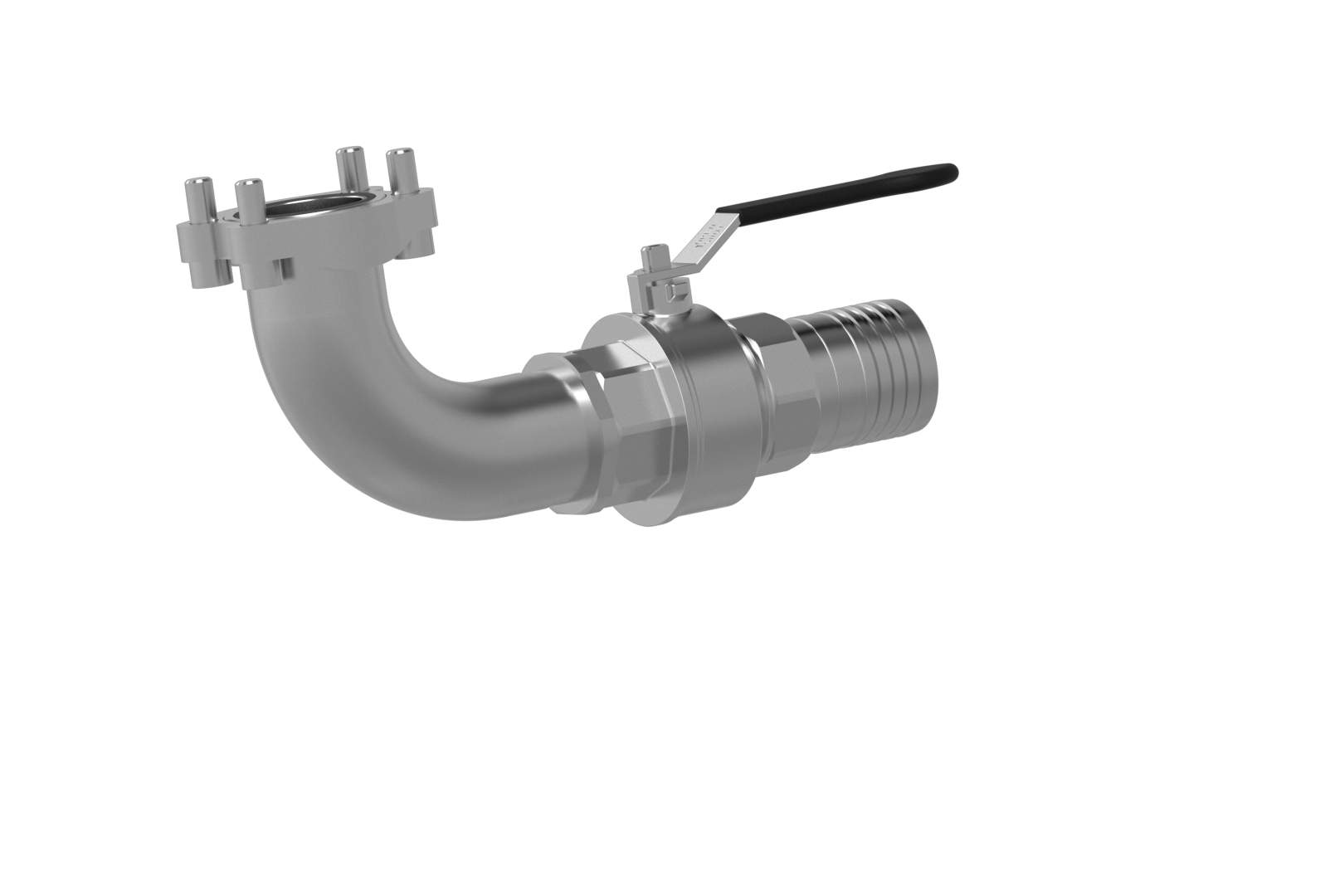

Ball valves SAE flange connection 90° 1st variant

Material
Ball valve: casing: nickelized brass; fittings:steel
Ball: hard chromium plated brass
sealing: teflon

Surface protection
DIN 50979 Fe//Zn8//Cn//T2

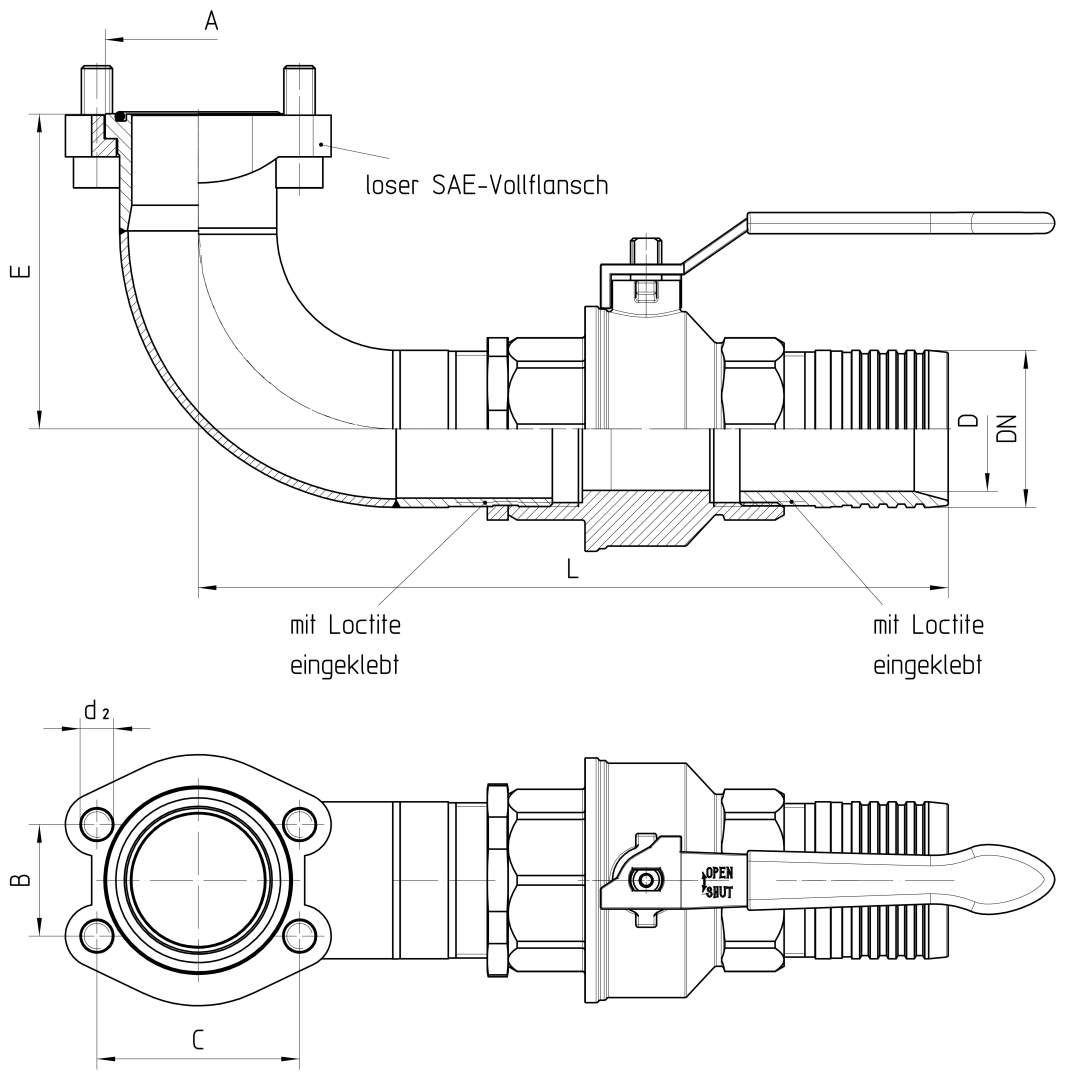

Order no. DN in mm Ball valve in inch flange in inch d1 (inside diameter Ball valve) E±3 in mm L±5 in mm A in mm B in mm C in mm d2 in mm
33.3/4-12/90-16 25 3/4 3/4 20 59,0 206 38,10 22,2 47,6 10,5
33.1-16/90-20 31 1 1 25 70,0 233 44,45 26,2 52,4 10,5
33.1 1/4-20/90-24 38 1 1/4 1 1/4 32 85,0 255 50,80 30,2 58,7 12,0
33.1 1/2-24/90-32 51 1 1/2 1 1/2 38 102,0 287 60,33 35,7 69,9 13,5
33.2-32/90-36 60 2 2 48 121,0 326 71,42 42,9 77,8 13,5
33.2 1/2-40/90-48 76 2 1/2 2 1/2 64 145,0 378 84,12 50,8 88,9 13,5
33.3-48/90-56 90 3 3 74 166,0 424 101,60 61,90 106,4 16,8
33.4-64/90-64 102 4 4 98 201,0 530 127,0 77,80 130,2 17,0

Note
Extent of supply: incl. full flange, O-ring, screws

Product information last updated on 01.08.2018 14:11:35
