Suction and low-pressure fittings

AGR cylindrical straight

Connection
BSPP male thread (G) with 60° inner cone

Standard
ISO 8434-6

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

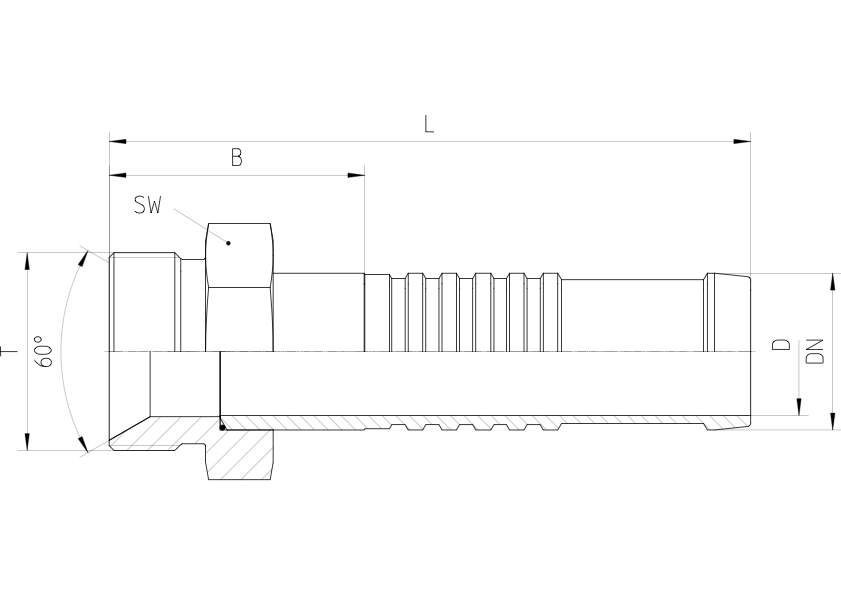

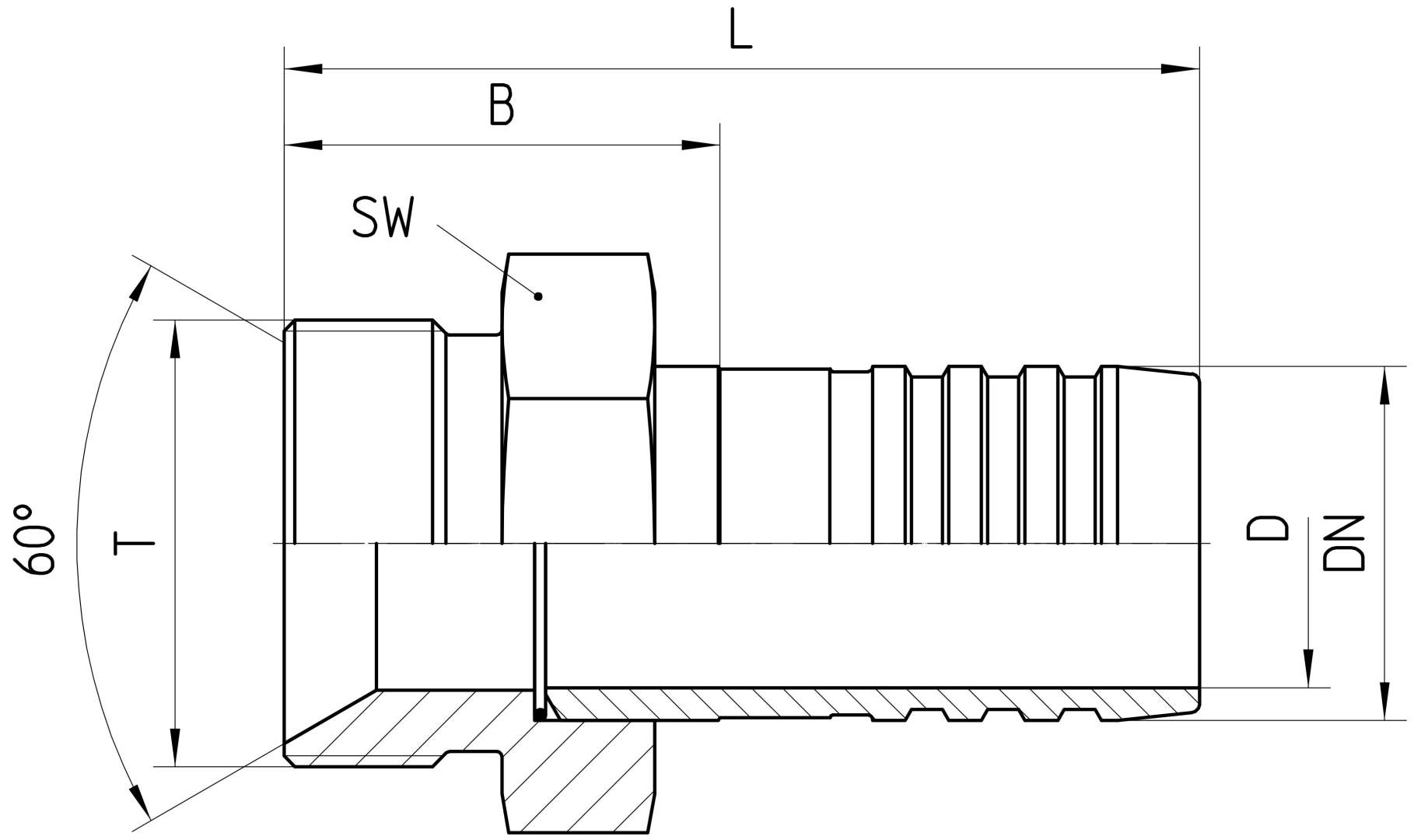

Order no. DN in mm T in inch SW in mm D in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.260-08-12 19 G 1/2 22 14 40 120 17.260K-08-12 36 80
17.260-12-12 19 G 3/4 27 14 40 120 17.260K-12-12 36 80
17.260-16-12 19 G 1 36 14 52 132 17.260K-16-12 48 92
17.260-12-16 25 G 3/4 27 19 40 120 17.260K-12-16 36 80
17.260-16-16 25 G 1 36 19 40 120 17.260K-16-16 36 80
17.260-20-16 25 G 1 1/4 46 19 53 133 17.260K-20-16 49 93
17.260-12-20 31 G 3/4 27 26 53 133 17.260K-12-20 49 93
17.260-16-20 31 G 1 36 26 53 133 17.260K-16-20 36 80
17.260-20-20 31 G 1 1/4 46 26 40 120 17.260K-20-20 36 80
17.260-24-20 31 G 1 1/2 50 26 63 143 17.260K-24-20 59 103
17.260-12-24 38 G 3/4 27 32 60 140 17.260K-12-24 73 117
17.260-16-24 38 G 1 36 32 60 140 17.260K-16-24 49 93
17.260-20-24 38 G 1 1/4 46 32 45 125 17.260K-20-24 42 86
17.260-24-24 38 G 1 1/2 50 32 45 125 17.260K-24-24 45 89
17.260-32-24 38 G 2 65 32 72 152 17.260K-32-24 68 112
17.260-16-32 51 G 1 36 44 84 176 17.260K-16-32 70 115
17.260-20-32 51 G 1 1/4 46 44 79 171 17.260K-20-32 63 108
17.260-24-32 51 G 1 1/2 50 44 46 138 17.260K-24-32 66 111
17.260-32-32 51 G 2 65 44 48 140 17.260K-32-32 50 95
17.260-40-32 51 G 2 1/2 80 44 58 150 17.260K-40-32 50 95
17.260-20-36 60 G 1 1/4 46 53 80 172 17.260K-20-36 88 133
17.260-24-36 60 G 1 1/2 50 53 81 173 17.260K-24-36 88 133
17.260-32-36 60 G 2 65 53 58 150 17.260K-32-36 55 100
17.260-40-36 60 G 2 1/2 80 53 58 150 17.260K-40-36 70 115
17.260-48-36 60 3 90 53 63 155 17.260K-48-36 70 115
17.260-40-48 76 G 2 1/2 80 60 59 151 17.260K-40-48 66 111
17.260-48-48 76 G 3 90 60 55 147 17.260K-48-48 62 107

Product information last updated on 20.06.2018 12:01:48
