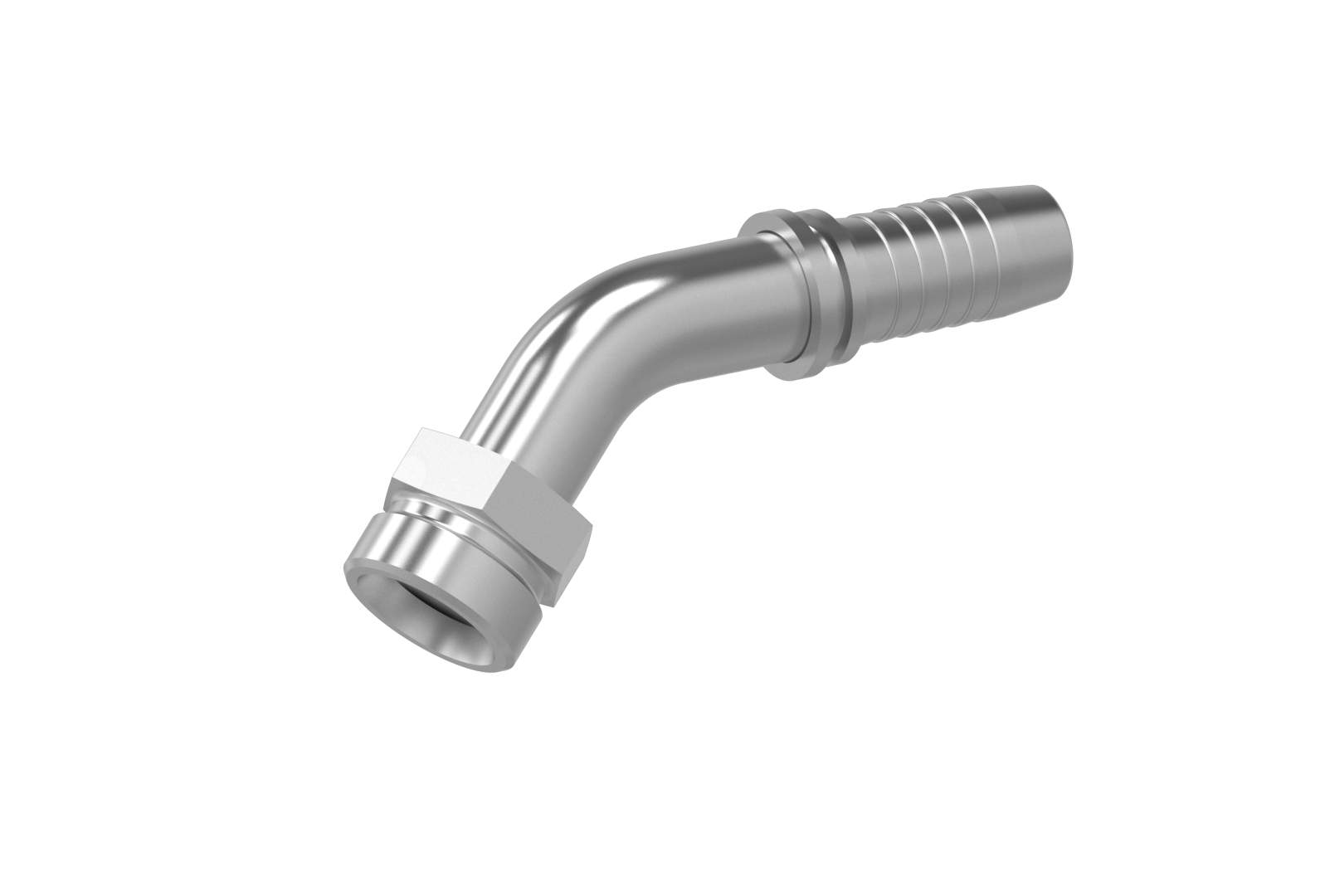

CEL 45°

Connection Metric male thread 24° with inner cone and pipe connection L series
Standard ISO 8434-1
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

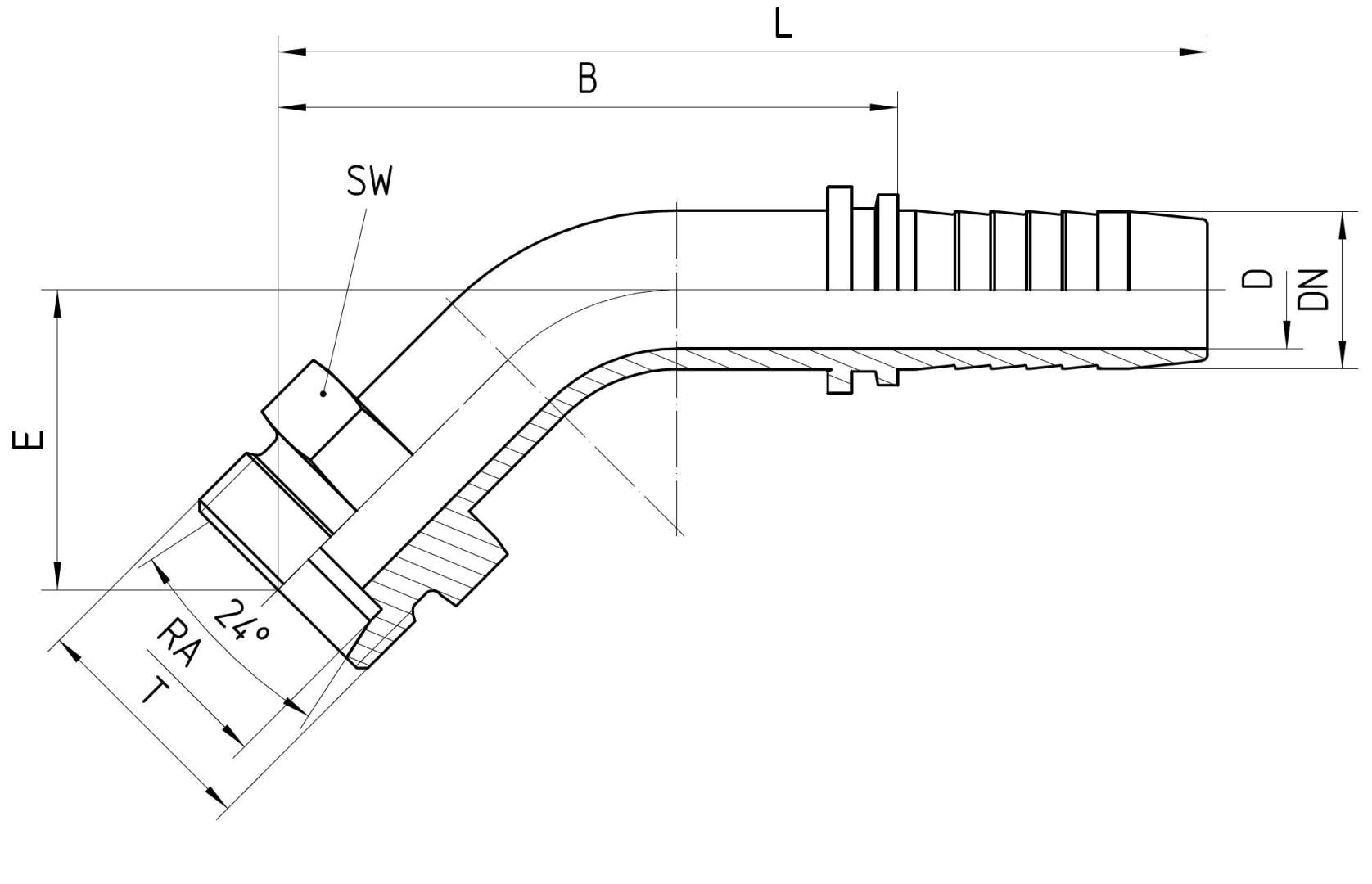

Order no. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.175-03-04 06 6L M 12x1.5 14 4,0 17 41 68
1.175-04-04 06 8L M 14x1.5 14 4,0 19 40 67
1.175-05-04 06 10L M 16x1.5 17 4,0 17 40 67
1.175-04-05 08 8L M 14x1.5 14 5,5 17 46 73
1.175-05-05 08 10L M 16x1.5 17 5,5 20 44 71
1.175-06-05 08 12L M 18x1.5 19 5,5 20 45 72
1.175-05-06 10 10L M 16x1.5 17 7,0 20 43 73
1.175-06-06 10 12L M 18x1.5 19 7,0 20 43 73
1.175-08-06 10 15L M 22x1.5 22 7,0 21 42 72
1.175-06-08 12 12L M 18x1.5 19 10,0 23 57 88
1.175-08-08 12 15L M 22x1.5 22 10,0 26 53 84
1.175-10-08 12 18L M 26x1.5 27 10,0 25 54 85
1.175-08-10 16 15L M 22x1.5 22 12,6 32 68 102
1.175-10-10 16 18L M 26x1.5 27 12,6 30 68 102
1.175-12-10 16 22L M 30x2.0 30 12,6 32 69 103
1.175-10-12 19 18L M 26x1.5 27 14,8 36 80 119
1.175-12-12 19 22L M 30x2.0 32 14,8 39 80 119
1.175-16-12 19 28L M 36x2.0 36 14,8 38 80 119
1.175-12-16 25 22L M 30x2.0 30 16,6 38 86 132
1.175-16-16 25 28L M 36x2.0 36 21,1 34 83 129
1.175-20-16 25 35L M 45x2.0 46 21,1 38 86 132
1.175-16-20 31 28L M 36x2.0 36 22,5 47 116 170
1.175-20-20 31 35L M 45x2.0 46 26,5 47 116 170
1.175-20-24 38 35L M 45x2.0 46 29,0 50 120 177
1.175-24-24 38 42L M 52x2.0 55 32,8 52 121 178
