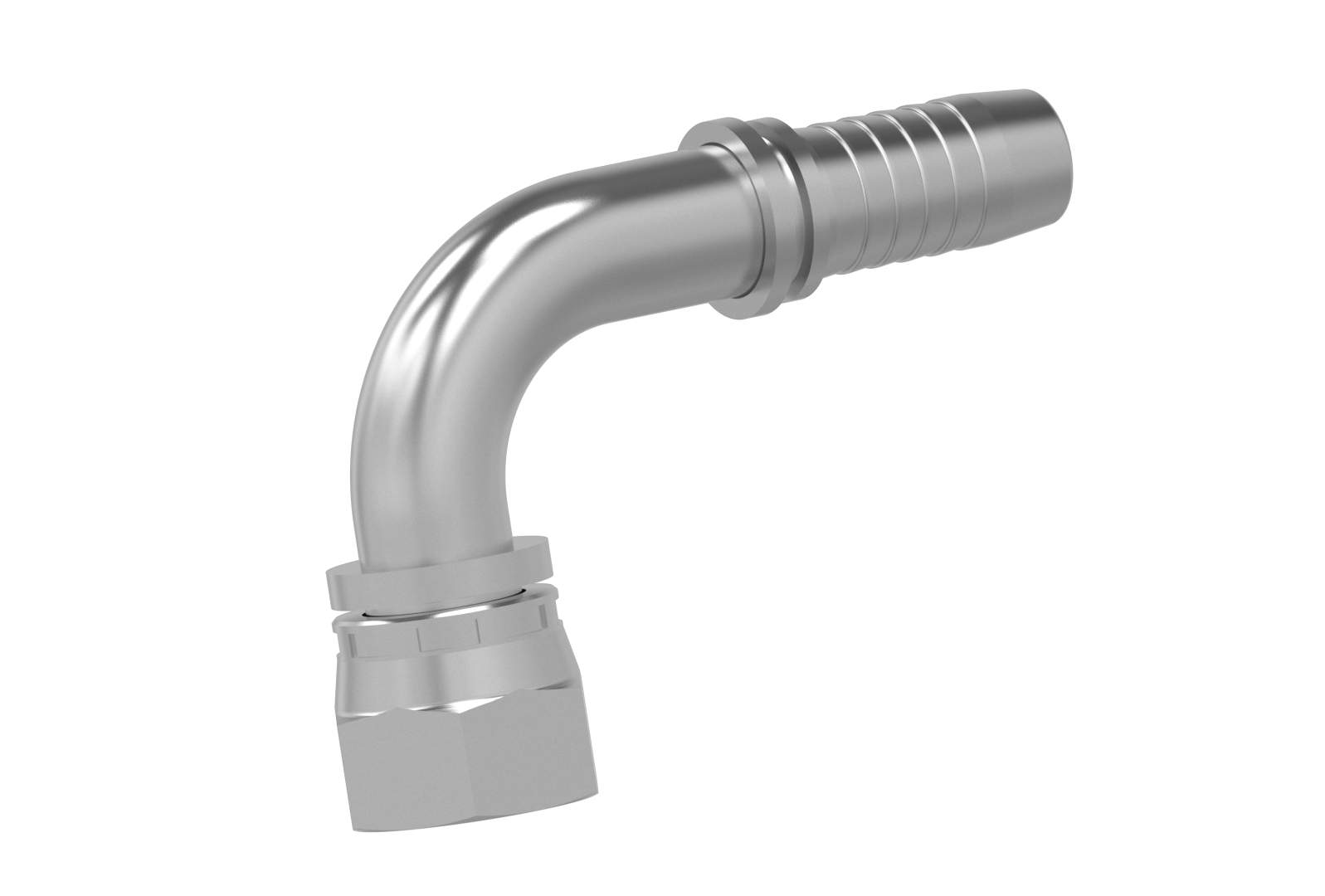

DKJ 90°

Connection Sealing head 74° inner cone with UN nut
Standard ISO 8434-2
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

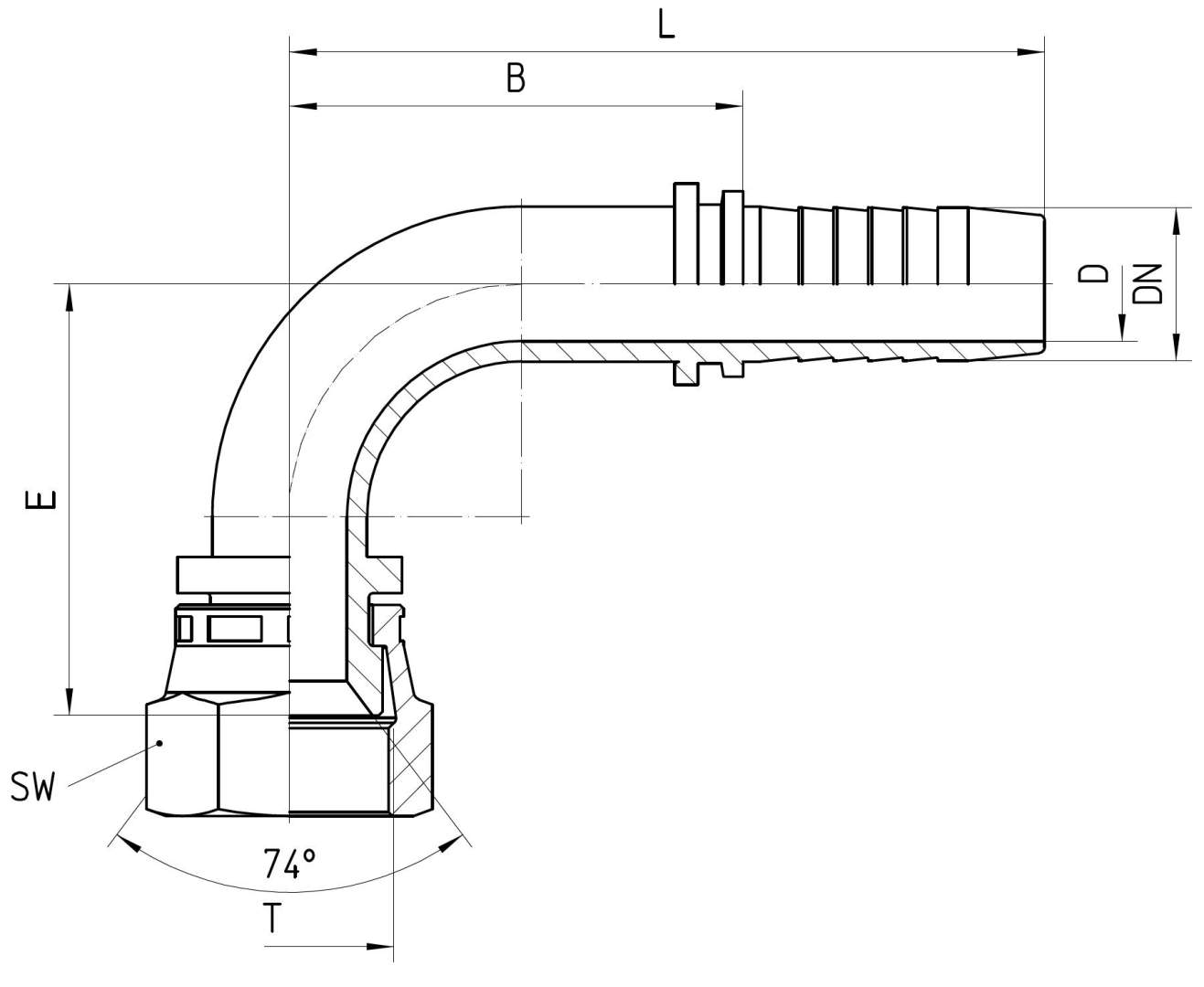

Order no. DN in mm T in UNF/UN SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.353-04-04 06 7/16-20 UNF 15 4,0 24 25 53
1.353-05-04 06 1/2-20 UNF 17 4,0 25 25 53
1.353-04-05 08 7/16-20 UNF 17 4,0 37 30 57
1.353-05-05 08 1/2-20 UNF 17 4,0 30 29 57
1.353-06-05 08 9/16-18 UNF 19 4,0 31 29 57
1.353-05-06 10 1/2-20 UNF 17 4,0 37 30 60
1.353-06-06 10 9/16-18 UNF 19 7,0 32 31 61
1.353-08-06 10 3/4-16 UNF 22 7,0 30 30 60
1.353-06-08 12 9/16-18 UNF 19 6,0 49 42 73
1.353-08-08 12 3/4-16 UNF 24 9,0 50 42 73
1.353-10-08 12 7/8-14 UNF 27 10,0 41 42 73
1.353-08-10 16 3/4-16 UNF 24 9,0 53 52 86
1.353-10-10 16 7/8-14 UNF 27 12,0 58 52 86
1.353-12-10 16 1 1/16-12 UN 32 12,0 66 52 86
1.353-10-12 19 7/8-14 UN 27 12,0 60 60 99
1.353-12-12 19 1 1/16-12 UN 32 15,0 55 56 96
1.353-16-12 19 1 5/16-12 UN 38 15,0 60 56 96
1.353-12-16 25 1 1/16-12 UN 32 15,0 88 68 114
1.353-16-16 25 1 5/16-12 UN 41 21,0 81 68 114
1.353-20-16 25 1 5/8-12 UN 55 21,0 74 68 114
1.353-16-20 31 1 5/16-12 UN 41 21,0 75 94 148
1.353-20-20 31 1 5/8-12 UN 55 26,5 91 91 145
1.353-24-20 31 1 7/8-12 UN 60 27,0 103 112 166
1.353-24-24 38 1 7/8-12 UN 60 32,0 101 94 162
1.353-32-32 51 2 1/2-12 UN 75 44,5 132 132 205

Product information last updated on 24.05.2022 14:32:49
