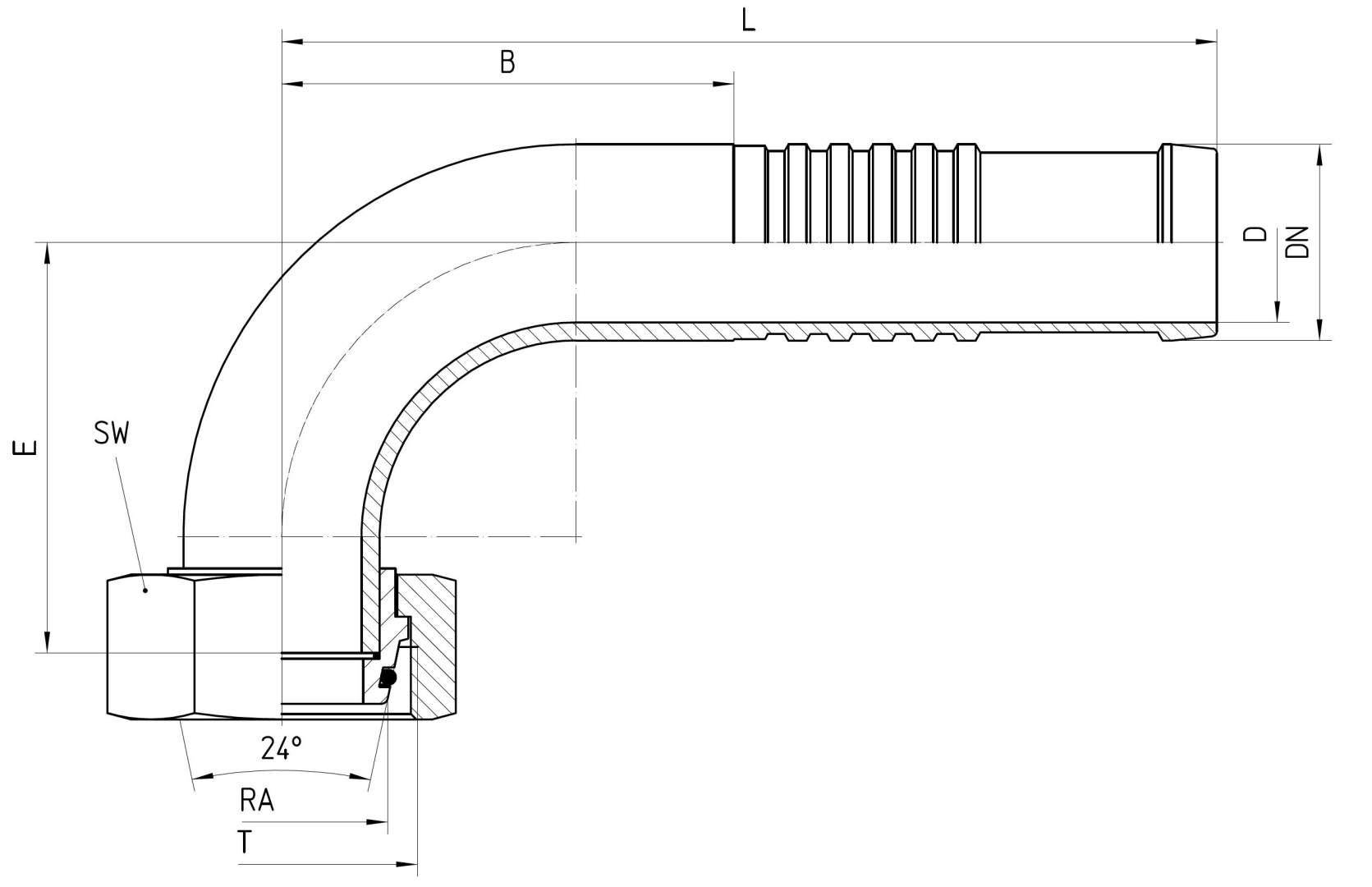

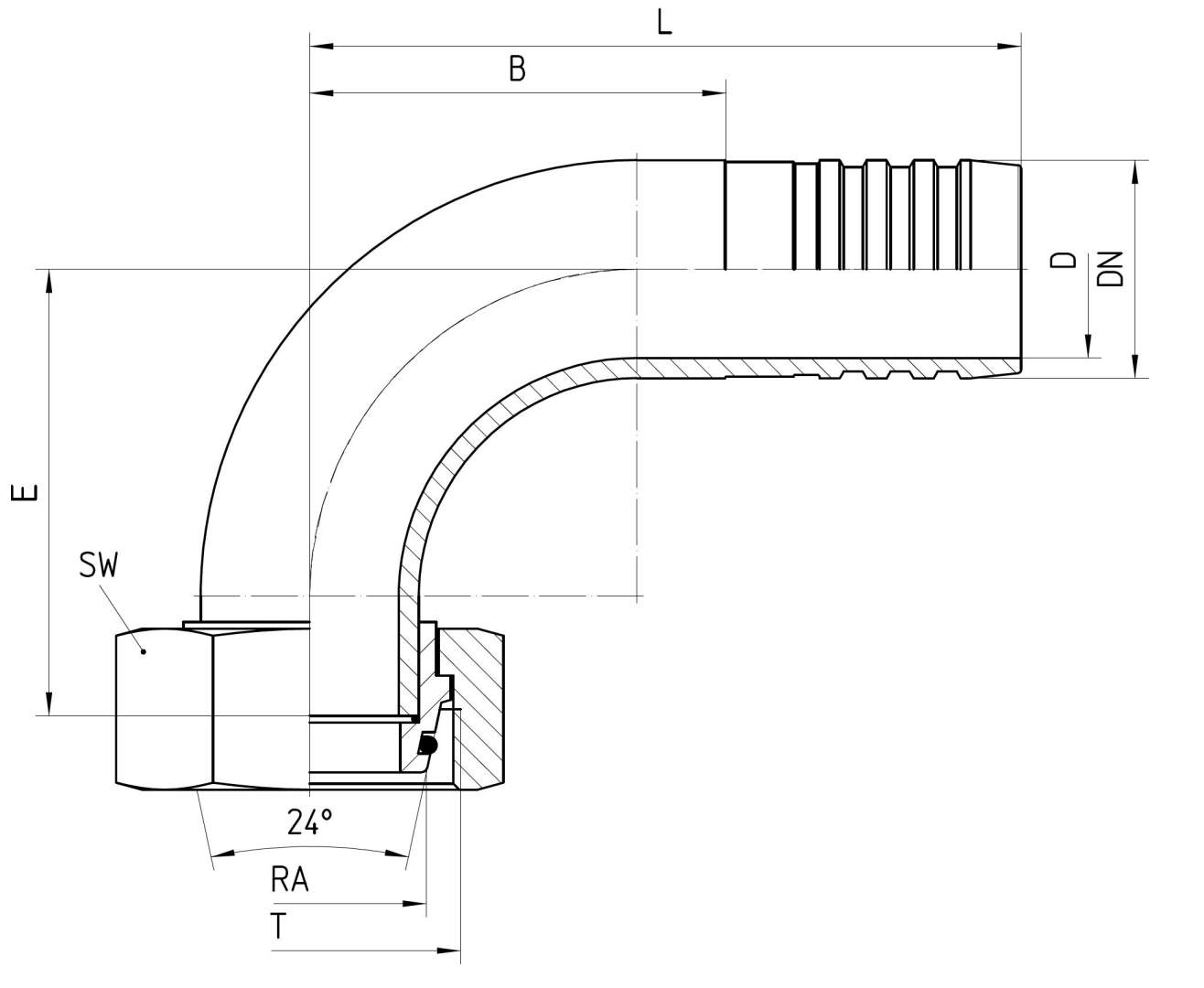

DKOL 90°

Connection
Sealing head 24° outside cone O-ring sealing with metric nut L series

Standard
ISO 8434-1

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

Order no. DN in mm RA T SW in mm D in mm E±3 in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.059-10-12 19 18L M26x1.5 32 14 53 47 127 17.059K-10-12 50 94
17.059-12-12 19 22L M30x2.0 36 14 51 47 127 17.059K-12-12 50 94
17.059-16-12 19 28L M36x2.0 41 14 54 47 127 17.059K-16-12 50 94
17.059-12-16 25 22L M30x2.0 36 19 67 59 139 17.059K-12-16 56 100
17.059-16-16 25 28L M36x2.0 41 19 65 59 139 17.059K-16-16 56 100
17.059-20-16 25 35L M45x2.0 50 19 66 59 139 17.059K-20-16 56 100
17.059-24-16 25 42L M52x2.0 60 19 65 59 139 17.059K-24-16 56 100
17.059-12-20 31 22L M30x2.0 36 26 80 75 155 17.059K-12-20 62 106
17.059-16-20 31 28L M36x2.0 41 26 82 75 155 17.059K-16-20 62 106
17.059-20-20 31 35L M45x2.0 50 26 75 75 155 17.059K-20-20 62 106
17.059-24-20 31 42L M52x2.0 60 26 75 75 155 17.059K-24-20 62 106
17.059-12-24 38 22L M30x2.0 36 32 118 90 170 17.059K-12-24 71 115
17.059-16-24 38 28L M36x2.0 41 32 93 90 170 17.059K-16-24 71 115
17.059-20-24 38 35L M45x2.0 50 32 91 90 170 17.059K-20-24 71 115
17.059-24-24 38 42L M52x2.0 60 32 90 90 170 17.059K-24-24 71 115
17.059-16-32 51 28L M36x2.0 41 44 152 128 220 17.059K-16-32 121 166
17.059-20-32 51 35L M45x2.0 50 44 113 128 220 17.059K-20-32 121 166
17.059-24-32 51 42L M52x2.0 60 44 112 128 220 17.059K-24-32 121 166
17.059-20-36 60 35L M45x2.0 50 53 128 89 181 17.059K-20-36 96 141
17.059-24-36 60 42L M52x2 60 53 127 89 181 17.059K-24-36 96 141

Product information last updated on 20.06.2018 12:01:48
