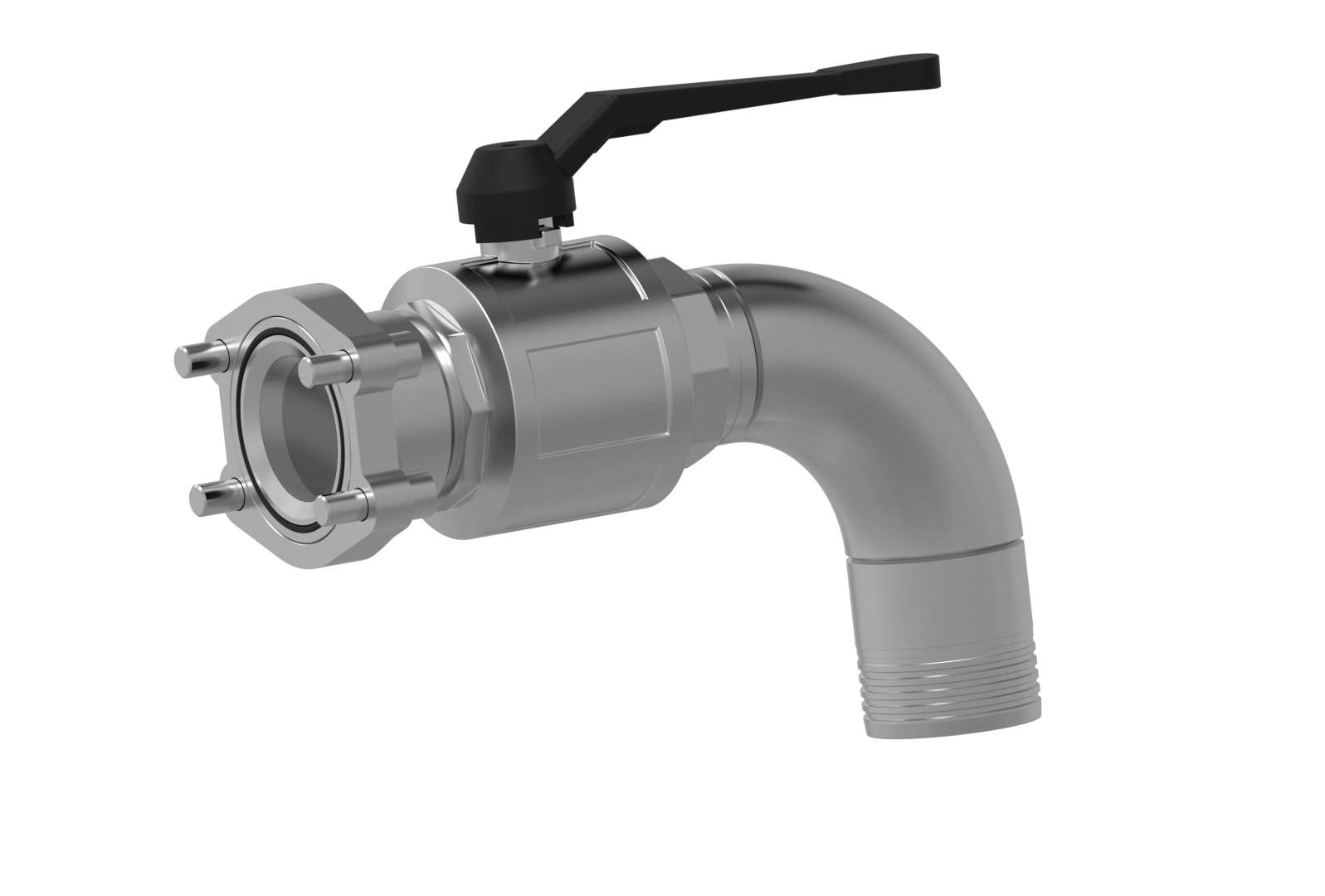

Ball valves with SAE flange connection 90° 2nd variant

Order no. DN in mm Ball valve flange in inch d1 (inside diameter Ball valve) L±5 in mm E±3 in mm A in mm B in mm C in mm d2 in mm
33.3/4-16-16/90 25 3/4 1 20 132 89 44,45 26,2 52,4 10,5
33.1-20-20/90 31 1 1 1/4 25 154 98 50,80 30,2 58,7 12,0
33.1 1/4-24-24/90 38 1 1/4 1 1/2 32 177 108 60,33 35,7 69,9 13,5
33.1 1/2-40-32/90 51 1 1/2 2 1/2 38 205 122 84,12 50,8 88,9 13,5
33.2-48-36/90 60 2 3 48 236 141 101,60 61,9 106,4 16,8
33.2 1/2-64-48/90 76 2 1/2 4 64 277 175 127,00 77,8 130,2 17,0
33.3-80-56/90 90 3 5 74 320 205 152,40 92,1 152,4 17,0
33.4-80-64/90 102 4 5 98 409 248 152,00 92,1 152,4 17,0

Product information last updated on 13.12.2018 11:21:44
