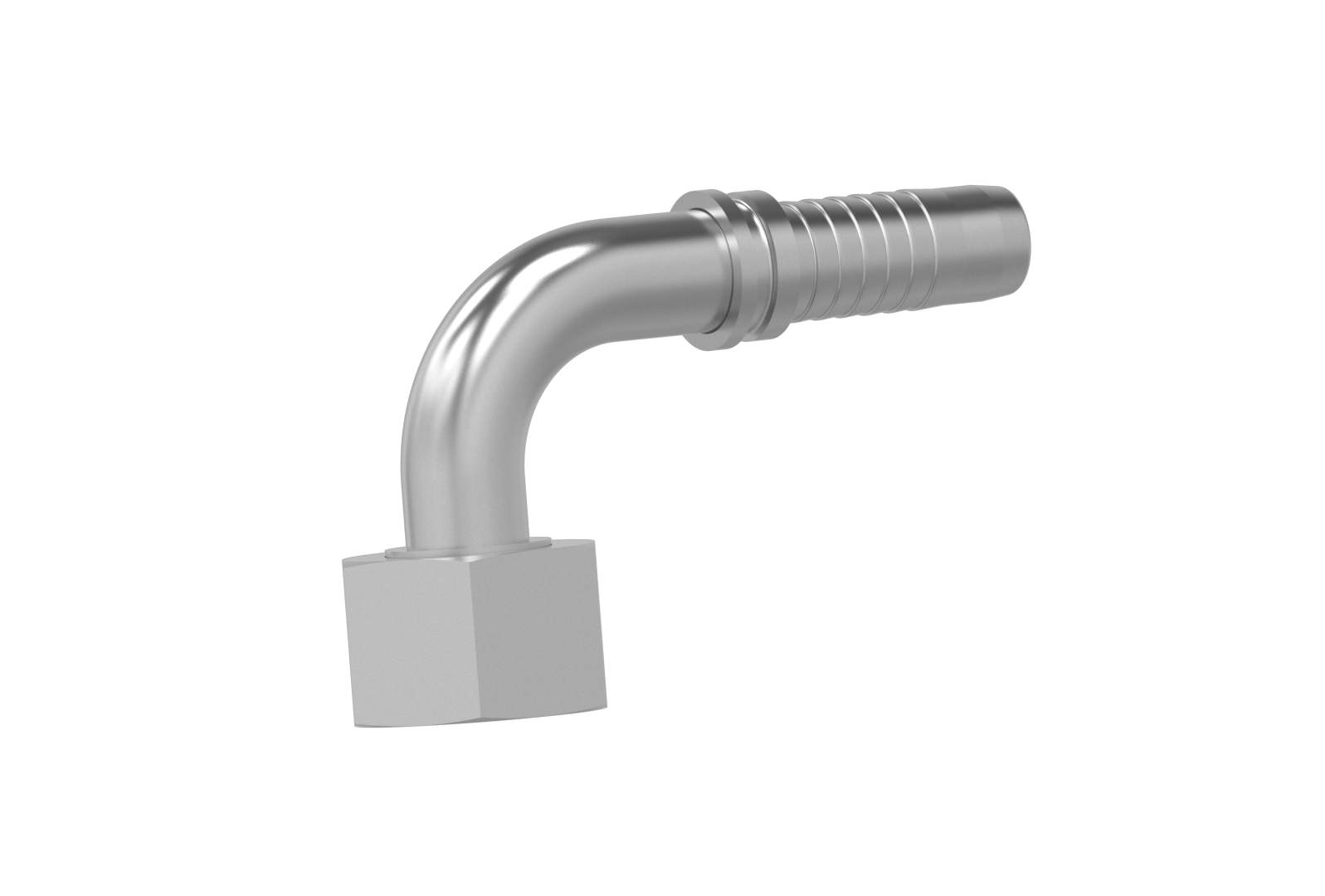

DKOS 90°

Connection Sealing head 24° outside cone O-ring sealing with metric nut S series
Standard ISO 8434-1
Application 3SPC / 4SP hoses / 4SH19 / 4SH25
Material Steel
Surface protection Zinc-electroplated
Note a) not according to ISO 8434-1
Order no. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm Note
4.089-03-04 06 8S M 16x1.5 19 4,0 33 27 61
4.089-04-04 06 10S M 18x1.5 22 4,0 33 27 61
4.089-05-04 06 12S M 20x1.5 24 4,0 32 27 61
4.089-05-06 10 12S M 20x1.5 24 7,0 35 31 65
4.089-06-06 10 14S M 22x1.5 27 7,0 36 31 65
4.089-08-06 10 16S M 24x1.5 30 7,0 36 31 65
4.089-06-08 12 14S M 22x1.5 27 7,0 45 43 81
4.089-08-08 12 16S M 24x1.5 30 9,0 46 42 80
4.089-10-08 12 20S M 30x2.0 36 9,0 47 43 81
4.089-08-10 16 16S M 24x1.5 30 10,0 56 52 94
4.089-10-10 16 20S M 30x2.0 36 12,0 57 53 95
4.089-12-10/SW41 16 25S M 36x2.0 41 12,0 59 51 93 a
4.089-12-10/SW46 16 25S M 36x2.0 46 12,0 59 51 93
4.089-10-12 19 20S M 30x2.0 36 13,0 65 58 104
4.089-12-12/SW41 19 25S M 36x2.0 41 14,8 65 60 106 a
4.089-12-12/SW46 19 25S M 36x2.0 46 14,8 65 60 106
4.089-16-12 19 30S M 42x2.0 50 14,8 65 60 106
4.089-12-16/SW46 25 25S M 36x2.0 46 13,5 78 65 120
4.089-16-16 25 30S M 42x2.0 50 19,9 76 67 122
4.089-20-16 25 38S M 52x2.0 60 19,9 76 65 120

Product information last updated on 24.05.2022 14:32:49
