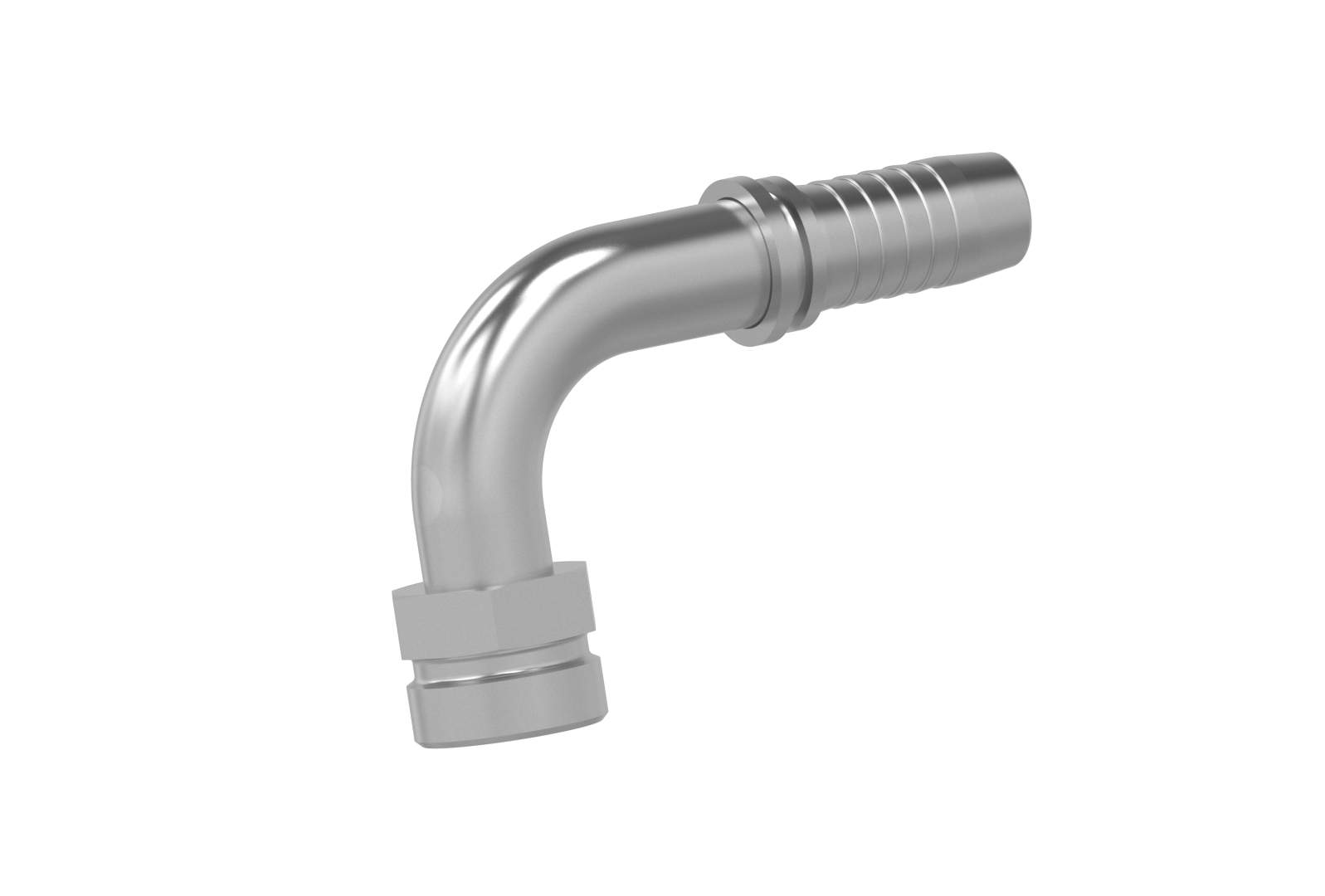

CES 90°

Connection Metric male thread 24° with inner cone, dan pipe connection S series
Standard ISO 8434-1
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

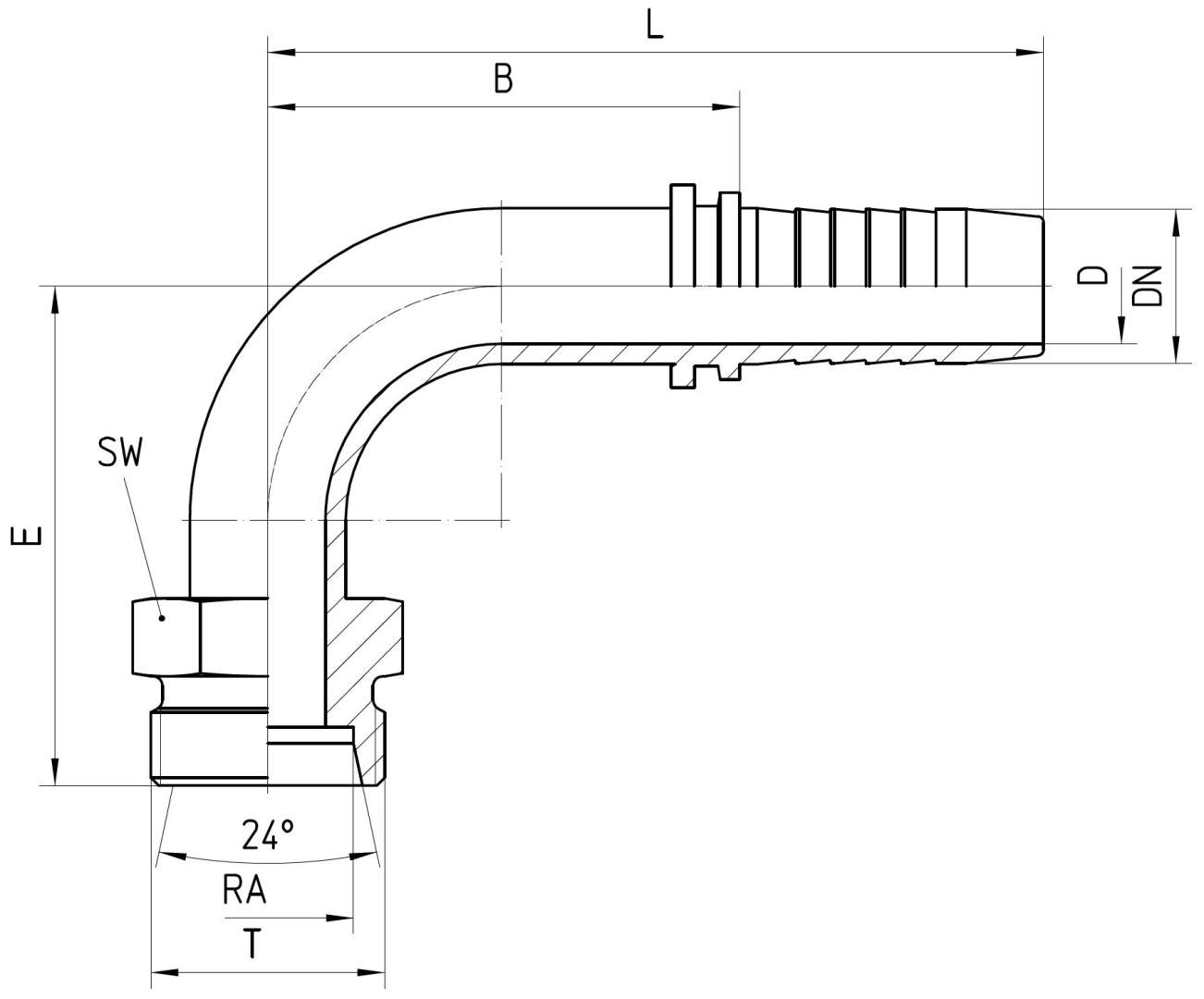

Order no. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.189-03-04 06 8S M 16x1.5 17 4,0 37 26 53
1.189-04-04 06 10S M 18x1.5 19 4,0 36 26 53
1.189-05-04 06 12S M 20x1.5 22 4,0 36 26 53
1.189-04-05 08 10S M 18x1.5 19 5,5 36 30 57
1.189-05-05 08 12S M 20x1.5 22 5,5 38 32 59
1.189-06-05 08 14S M 22x1.5 22 5,5 38 32 59
1.189-05-06 10 12S M 20x1.5 22 7,0 37 31 61
1.189-06-06 10 14S M 22x1.5 22 7,0 40 31 61
1.189-08-06 10 16S M 24x1.5 24 7,0 41 30 60
1.189-06-08 12 14S M 22x1.5 22 10,0 50 42 73
1.189-08-08 12 16S M 24x1.5 24 10,0 47 42 73
1.189-10-08 12 20S M 30x2.0 30 10,0 50 42 73
1.189-08-10 16 16S M 24x1.5 24 12,6 58 52 86
1.189-10-10 16 20S M 30x2.0 30 12,6 60 52 86
1.189-12-10 16 25S M 36x2.0 36 12,6 62 52 86
1.189-10-12 19 20S M 30x2.0 30 14,8 72 61 100
1.189-12-12 19 25S M 36x2.0 41 14,8 73 60 99
1.189-16-12 19 30S M 42x2.0 46 14,8 73 60 99
1.189-12-16 25 25S M 36x2.0 36 21,1 83 68 114
1.189-16-16 25 30S M 42x2.0 46 21,1 82 68 114
1.189-20-16 25 38S M 52x2.0 55 21,1 95 68 114
1.189-16-20 31 30S M 42x2.0 46 26,1 97 94 148
1.189-20-20 31 38S M 52x2.0 55 26,5 95 94 148
1.189-20-24 38 38S M 52x2.0 55 32,5 112 105 162
