Suction and low-pressure fittings

DKOL 45°

Connection
Sealing head 24° outside cone O-ring sealing with metric nut L series

Standard
ISO 8434-1

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

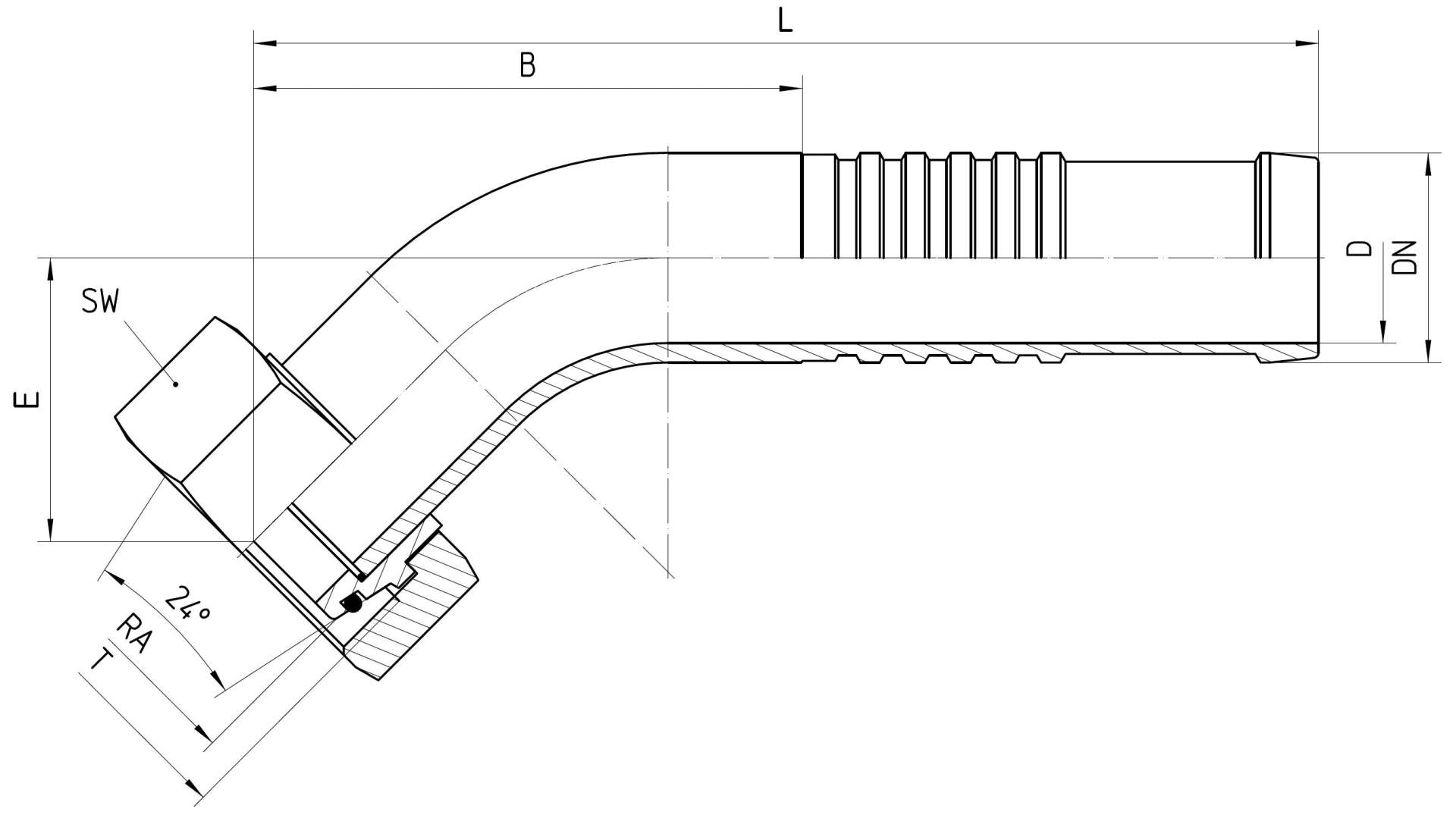

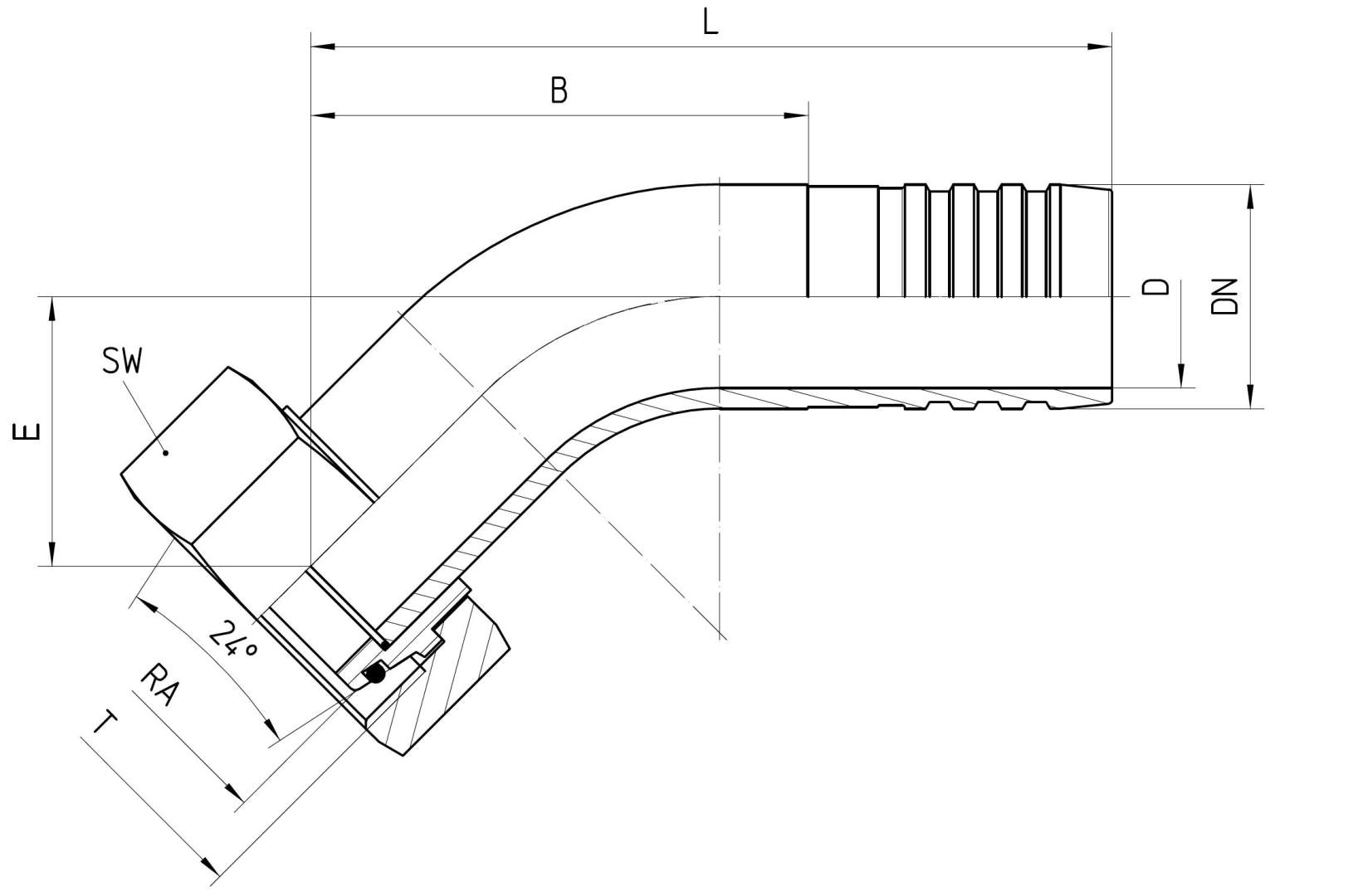

Order no. DN in mm RA T SW in mm D in mm E±3 in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.055-10-12 19 18L M26x1.5 32 14 27 60 140 17.055K-10-12 56 100
17.055-12-12 19 22L M30x2.0 36 14 27 60 140 17.055K-12-12 56 100
17.055-16-12 19 28L M36x2.0 41 14 27 60 140 17.055K-16-12 56 100
17.055-12-16 25 22L M30x2.0 36 19 34 70 150 17.055K-12-16 61 105
17.055-16-16 25 28L M36x2.0 41 19 34 70 150 17.055K-16-16 61 105
17.055-20-16 25 35L M45x2.0 51 19 34 71 151 17.055K-20-16 61 105
17.055-24-16 25 42L M52x2.0 60 19 34 71 151 17.055K-24-16 61 105
17.055-12-20 31 22L M30x2.0 36 26 46 80 160 17.055K-12-20 76 120
17.055-16-20 31 28L M36x2.0 41 26 46 89 169 17.055K-16-20 76 120
17.055-20-20 31 35L M45x2.0 50 26 45 86 166 17.055K-20-20 78 122
17.055-24-20 31 42L M52x2.0 60 26 45 82 162 17.055K-24-20 78 122
17.055-12-24 38 22L M30x2.0 36 32 70 115 195 17.055K-12-24 111 155
17.055-16-24 38 28L M36x2.0 41 32 53 115 195 17.055K-16-24 88 132
17.055-20-24 38 35L M45x2.0 50 32 53 115 195 17.055K-20-24 106 150
17.055-24-24 38 42L M52x2.0 60 32 53 115 195 17.055K-24-24 96 140
17.055-16-32 51 28L M36x2.0 41 44 57 131 223 17.055K-16-32 124 169
17.055-20-32 51 35L M45x2.0 50 44 57 131 223 17.055K-20-32 124 169
17.055-24-32 51 42L M52x2.0 60 44 57 131 223 17.055K-24-32 124 169
17.055-20-36 60 35L M45x2.0 50 53 63 113 205 17.055K-20-36 120 165
17.055-24-36 60 42L M52x2.0 60 53 61 113 205 17.055K-24-36 120 165

Product information last updated on 20.06.2018 12:01:48
