Pressure fittings

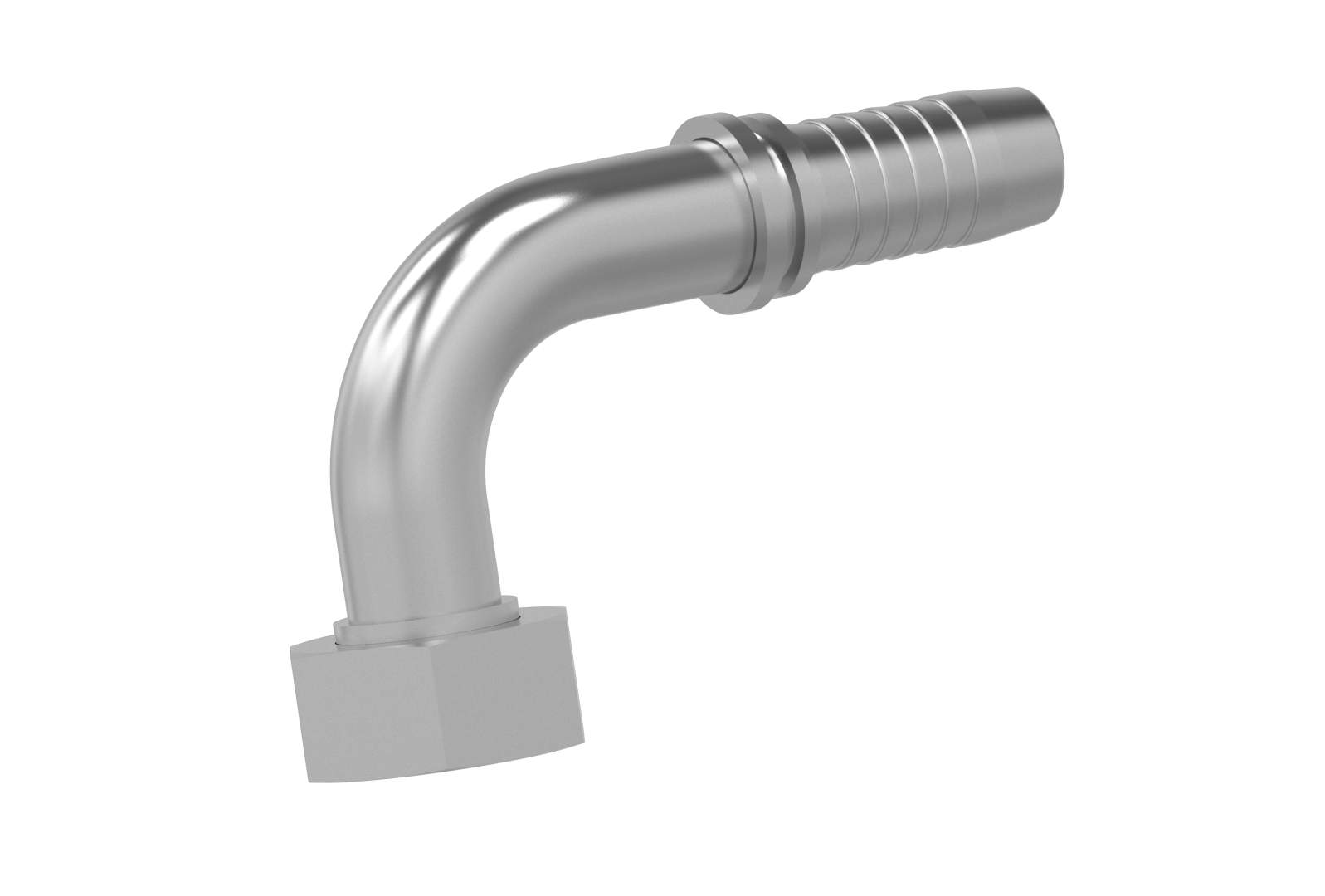

DKM 90°

Connection
Sealing head 60° outside cone with nut LL series

Standard
DIN 3863

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

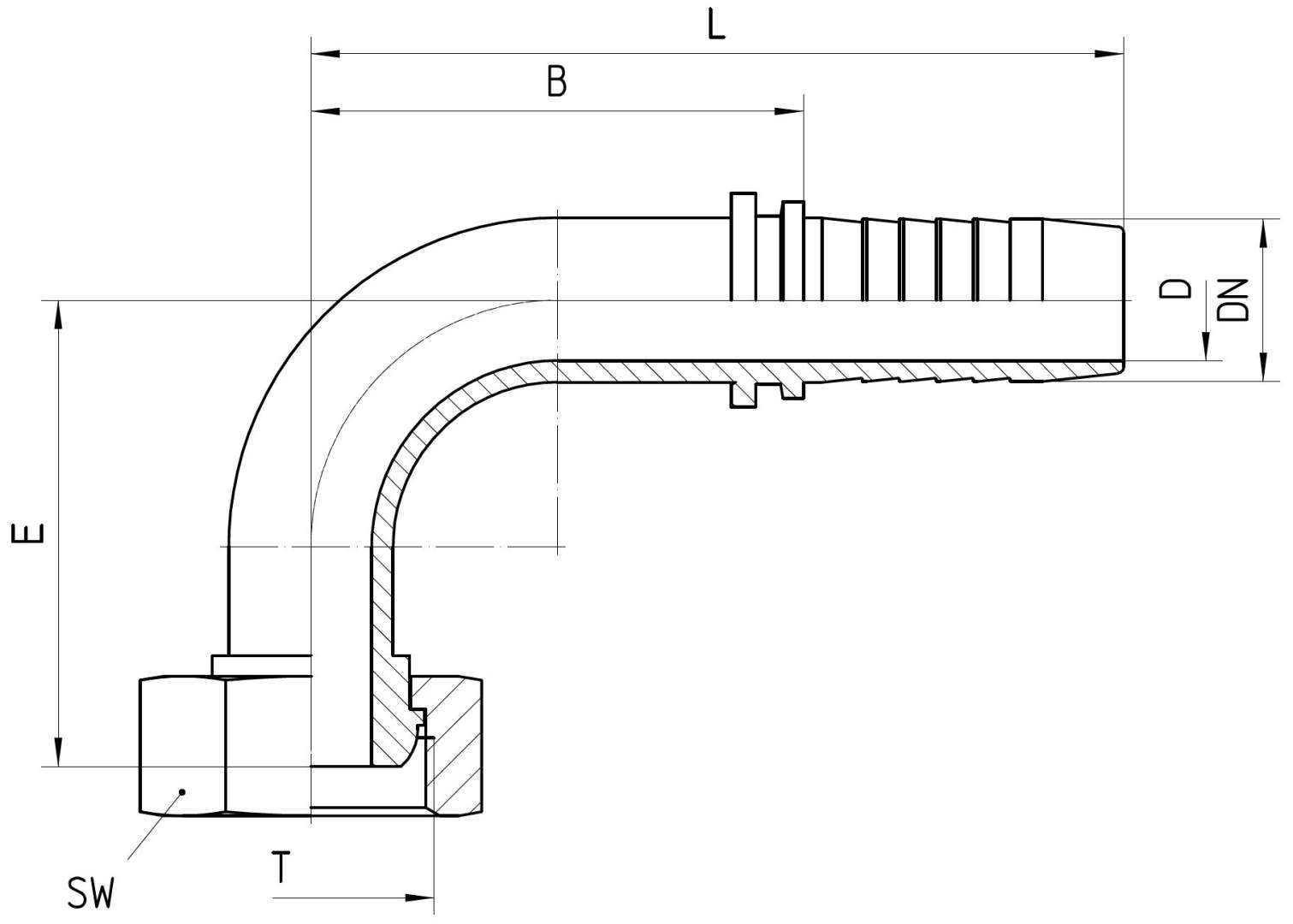

Order no. DN in mm T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.019-12-12 19 M 30x1.5 36 14,8 61 60 99
1.019-16-12 19 M 38x1.5 46 14,8 61 60 99
1.019-12-16 25 M 30x1.5 36 15,0 60 68 114
1.019-16-16 25 M 38x1.5 46 21,0 69 68 114
1.019-20-16 25 M 45x1.5 55 21,0 70 68 114
1.019-16-20 31 M 38x1.5 46 20,0 84 94 148
1.019-20-20 31 M 45x1.5 55 26,5 82 94 148
1.019-24-20 31 M 52x1.5 60 26,5 83 94 148
1.019-20-24 38 M 45x1.5 55 27,0 104 105 162
1.019-24-24 38 M 52x1.5 60 32,8 101 105 162
1.019-32-24 38 M 65x2.0 75 32,8 103 105 162
1.019-24-32 51 M 52x1.5 60 33,0 114 130 205
1.019-32-32 51 M 65x2.0 75 44,5 112 130 205
1.019-40-32 51 M 78x2.0 90 44,5 117 130 205
1.019-32-36 60 M 65x2.0 75 44,5 129 173 253
1.019-40-36 60 M 78x2.0 90 52,0 129 173 253
1.019-48-36 60 M 90x2.0 100 52,0 129 173 253
1.019-40-40 63 M 78x2.0 90 52,0 128 157 237
1.019-40-48 76 M 78x2.0 90 53,0 142 150 225
1.019-48-48 76 M 90x2.0 100 68,0 131 150 225
1.019-56-48 76 M 100x2.0 100 68,0 131 150 225

Note
this version is also available for 4SP hoses

Ferrule
no-skive (101) // skive (100 / 110 / 120)

Options
O-ring version on request (DKOM)
