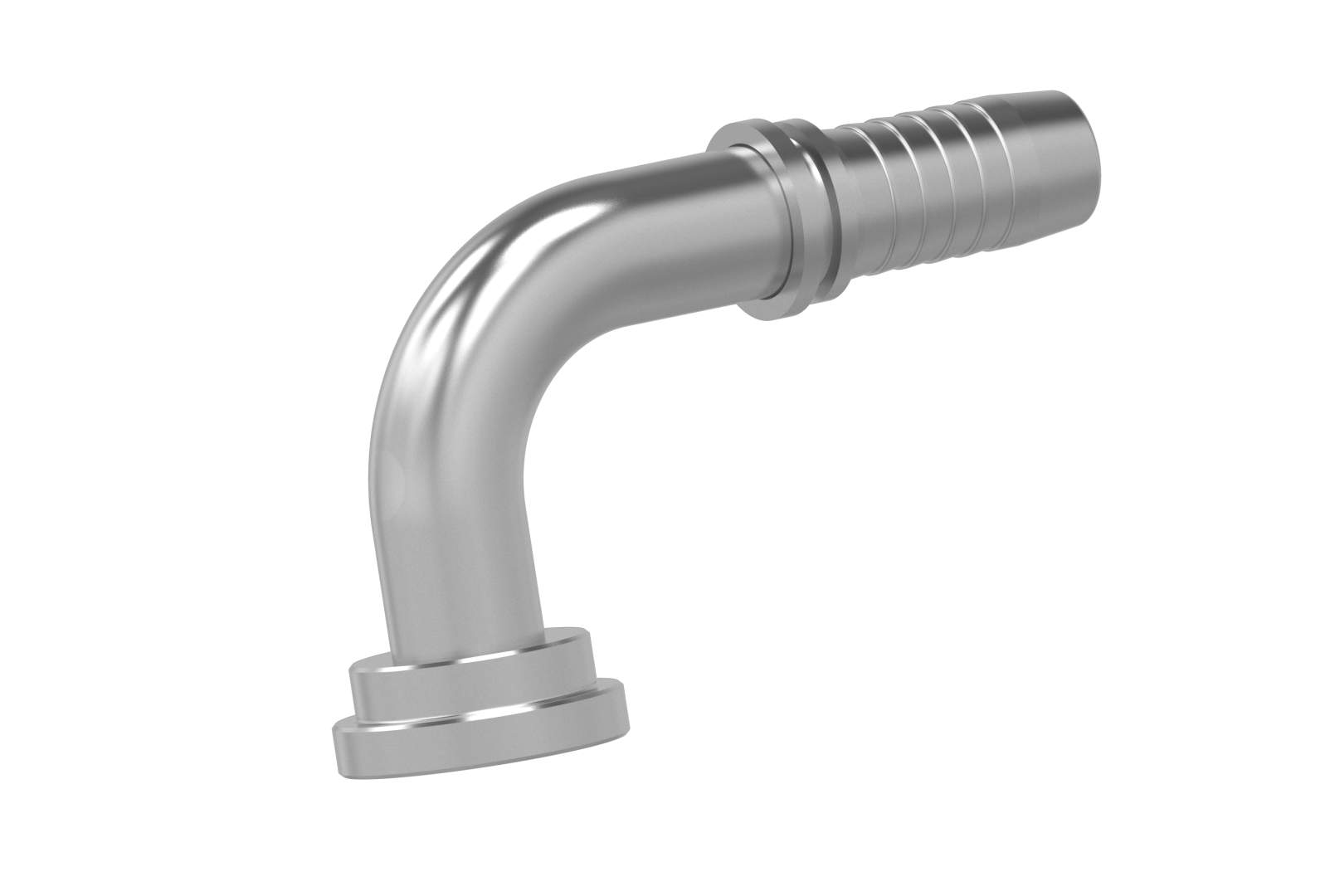

SFS 90°

Connection SAE flange 6000PSI (S series)
Standard ISO 6162-2
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

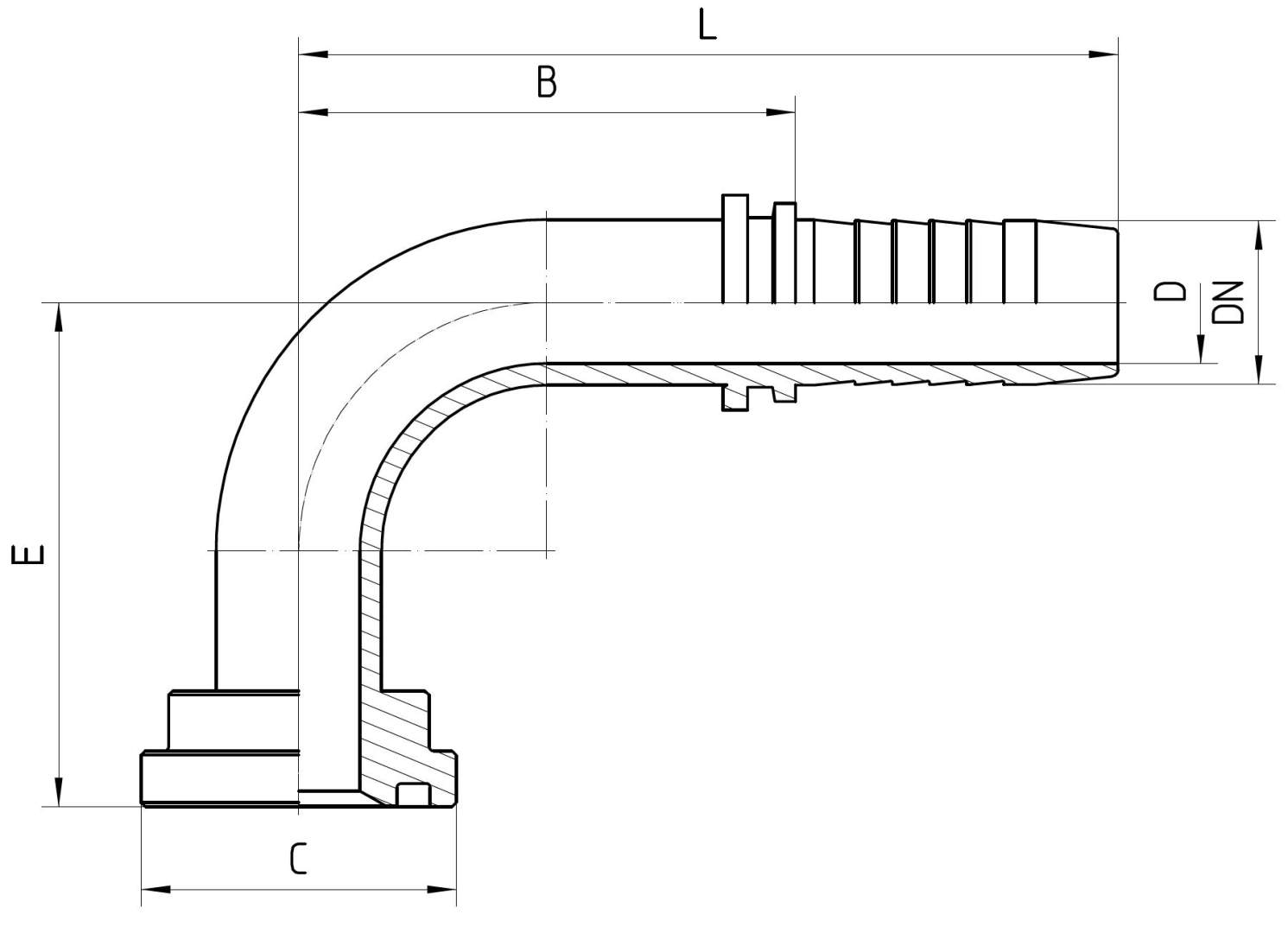

Order no. DN in mm flange in inch C in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.471-08-08 12 1/2 31,7 10,0 41 42 73
1.471-12-08 12 3/4 41,3 10,0 42 40 71
1.471-08-10 16 1/2 31,7 12,6 50 53 87
1.471-12-10 16 3/4 41,3 12,6 52 52 86
1.471-08-12 19 1/2 31,7 14,0 64 60 99
1.471-12-12 19 3/4 41,3 14,8 62 60 99
1.471-16-12 19 1 47,6 14,8 65 60 99
1.471-12-16 25 3/4 41,3 20,0 72 68 114
1.471-16-16 25 1 47,6 21,1 73 68 114
1.471-20-16 25 1 1/4 54,0 21,1 71 68 114
1.471-16-20 31 1 47,6 26,5 86 94 148
1.471-20-20 31 1 1/4 54,0 26,5 88 94 148
1.471-24-20 31 1 1/2 63,5 26,5 88 94 148
1.471-20-24 38 1 1/4 54,0 32,5 104 105 162
1.471-24-24 38 1 1/2 63,5 32,8 104 105 162
1.471-32-24 38 2 79,4 32,8 104 105 162
1.471-24-32 51 1 1/2 63,5 32,5 124 130 205
1.471-32-32 51 2 79,4 44,5 124 130 205

Product information last updated on 24.05.2022 14:32:49
