Pressure fittings

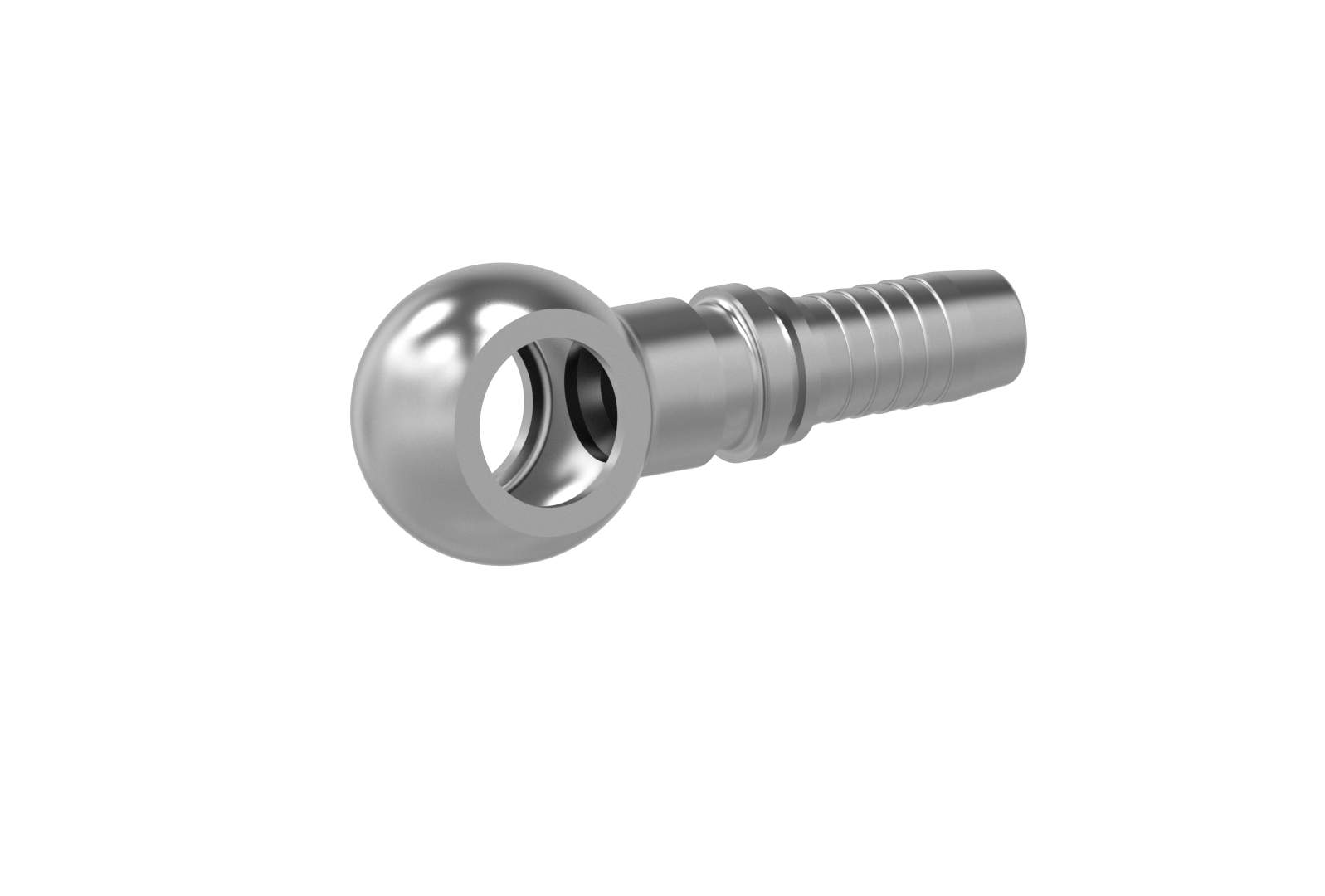

Banjo fitting metric

Connection
Ring fitting for metric hollow screws (M)

Standard
DIN 7642

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

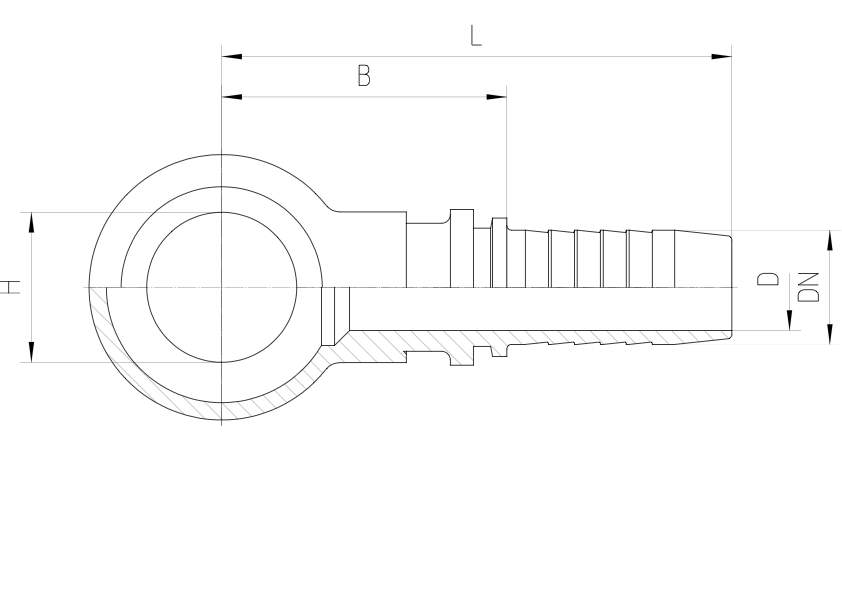

Order no. DN in mm resp. banjo bolt acc. to DIN 7643 H H in mm min. D in mm B±3 in mm L±3 in mm
1.090-10-04 06 M 10x1.0 10,2 3,5 30 57
1.090-12-04 06 M 12x1.5 12,2 4,0 32 59
1.090-14-04 06 M 14x1.5 14,2 4,0 33 61
1.090-10-05 08 M 10x1.0 10,2 4,0 29 57
1.090-12-05 08 M 12x1.5 12,2 5,5 31 59
1.090-14-05 08 M 14x1.5 14,2 5,5 33 61
1.090-16-05 08 M 16x1.5 16,2 5,5 35 63
1.090-12-06 10 M 12x1.5 12,2 5,5 31 61
1.090-14-06 10 M 14x1.5 14,2 7,0 33 63
1.090-16-06 10 M 16x1.5 16,2 7,0 35 65
1.090-18-06 10 M 18x1.5 18,2 7,0 37 67
1.090-14-08 12 M 14x1.5 14,2 7,0 35 67
1.090-16-08 12 M 16x1.5 16,2 7,0 37 69
1.090-18-08 12 M 18x1.5 18,2 10,0 39 71
1.090-22-08 12 M 22x1.5 22,2 10,0 42 74
1.090-16-10 16 M 16x1.5 16,2 7,0 39 73
1.090-18-10 16 M 18x1.5 18,2 10,0 41 75
1.090-22-10 16 M 22x1.5 22,2 13,0 44 78
1.090-26-10 16 M 26x1.5 26,2 13,0 47 81
1.090-18-12 19 M 18x1.5 18,2 10,0 44 83
1.090-22-12 19 M 22x1.5 22,2 13,0 47 86
1.090-26-12 19 M 26x1.5 26,2 15,0 50 89
1.090-22-16 25 M 22x1.5 22,2 15,0 50 97
1.090-26-16 25 M 26x1.5 26,2 15,0 53 100
1.090-26-20 31 M 26x1.5 26,2 15,0 56 111
1.090-30-20 31 M 30x1.5 30,2 21,0 60 115

Product information last updated on 11.06.2019 12:00:09
