Suction and low-pressure fittings

weld-on nipple 45°

Connection
Schlaunippel mit Rohr zum Anschweißen

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
without

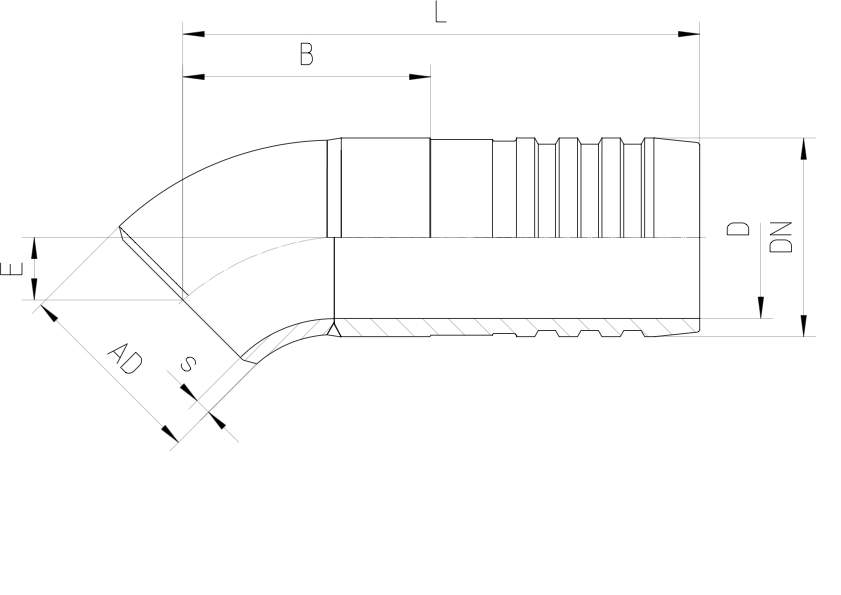

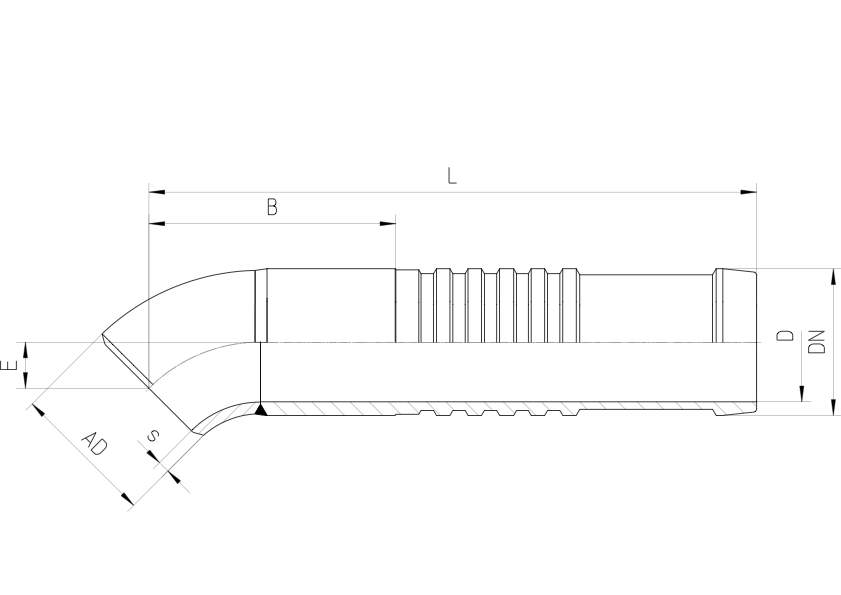

Order no. DN in mm Tube bend DIN2605/3S AD x s D in mm E±3 in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.005-12 19 21,3 x 2,0 14,0 7 26 120 17.005K-12 36 80
17.005-16 25 26,9 x 2,3 19,0 10 30 125 17.005K-16 41 85
17.005-20 31 31,8 x 2,6 26,0 14 34 135 17.005K-20 51 95
17.005-24 38 38,0 x 2,6 32,0 17 60 140 17.005K-24 56 100
17.005-32 51 51,0 x 3,2 44,5 20 78 170 17.005K-32 85 130
17.005-36 60 60,3 x 2,9 53,0 23 68 160 17.005K-36 75 120
17.005-48 76 76,1 x 2,9 69,0 29 59 190 17.005K-48 105 150
17.005-56 90 88,9 x 3,2 82,0 35 75 205 17.005K-56 120 165
17.005-64 102 101,6 x 3,6 94,0 45 75 215 17.005K-64 127 175
17.005-96 152 139,0 x4,0 131,0 62 112 290 17.005K-96 170 250
