Pressure fittings

SFL 45°

Connection SAE-flange 3000PSI (L series)
Standard ISO 6162-1
Application 3SPC / 4SP hoses / 4SH19 / 4SH25
Material Steel
Surface protection Zinc-electroplated
Order no. DN in mm flange in inch C in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
4.450-08-08 12 1/2 30,2 9,0 23 44 89
4.450-12-08 12 3/4 38,1 9,0 23 45 87
4.450-08-10 16 1/2 30,2 12,0 27 66 108
4.450-12-10 16 3/4 38,1 12,0 28 66 108
4.450-08-12 19 1/2 30,2 13,5 29 74 120
4.450-12-12 19 3/4 38,1 14,8 33 74 120
4.450-16-12 19 1 44,5 14,8 31 73 119
4.450-12-16 25 3/4 38,1 19,9 32 76 131
4.450-16-16 25 1 44,5 19,9 32 82 137
4.450-20-16 25 1 1/4 50,8 19,9 31 72 127

Product information last updated on 24.05.2022 14:32:49

Request this product

Are you interested in this product? Our contact partners are happy to answer any questions you may have about our products.

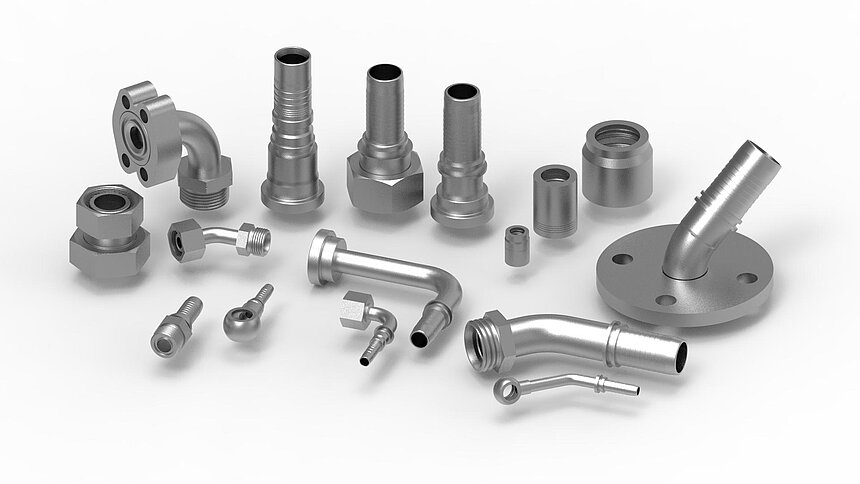

Individual customisations?
