Pressure fittings

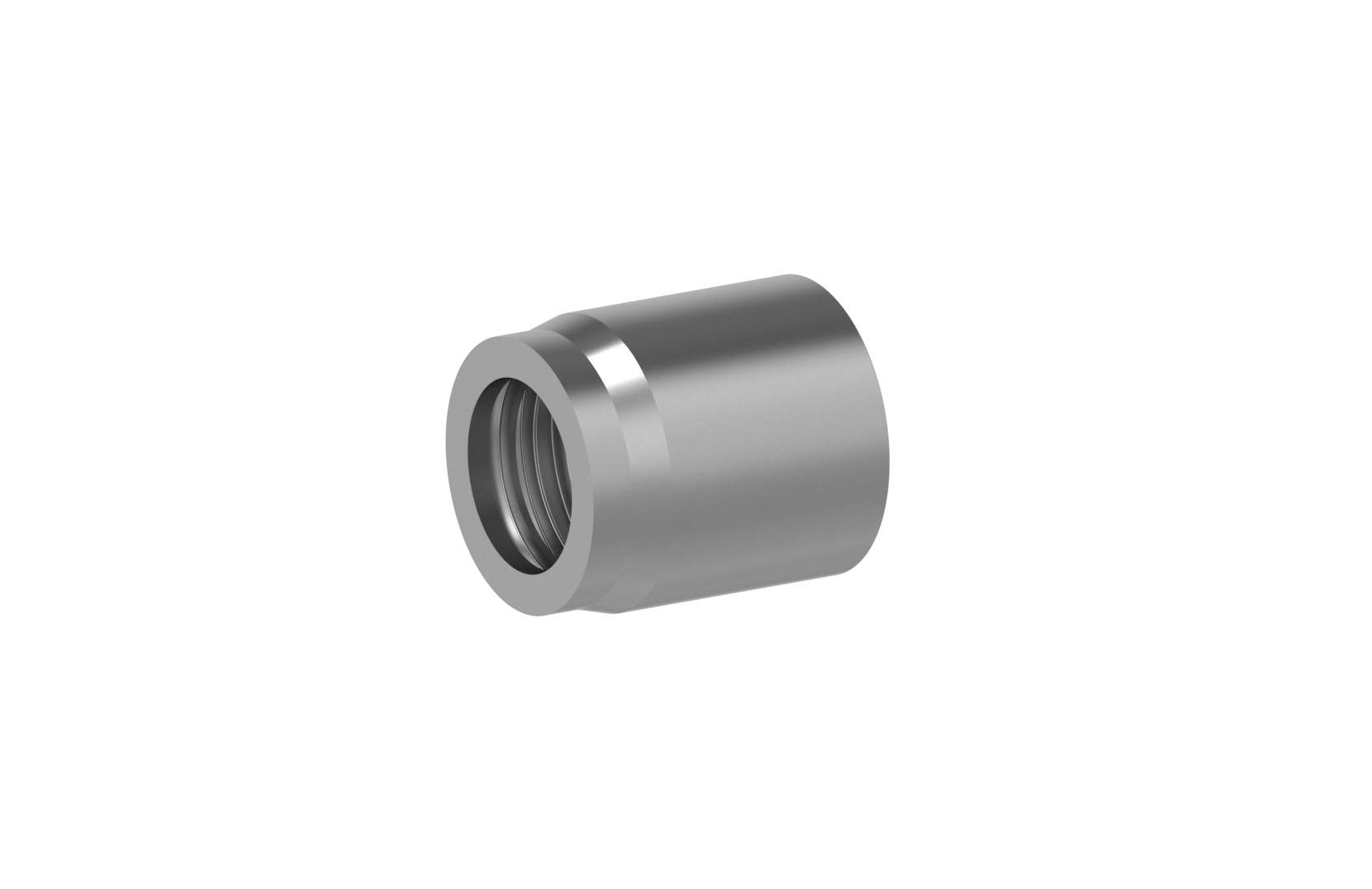

Combi NO-SKIVE (101)

Connection
Combination NO-SKIVE press holder for dH1000

Application
dH1000
SN / SC / SN-K flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

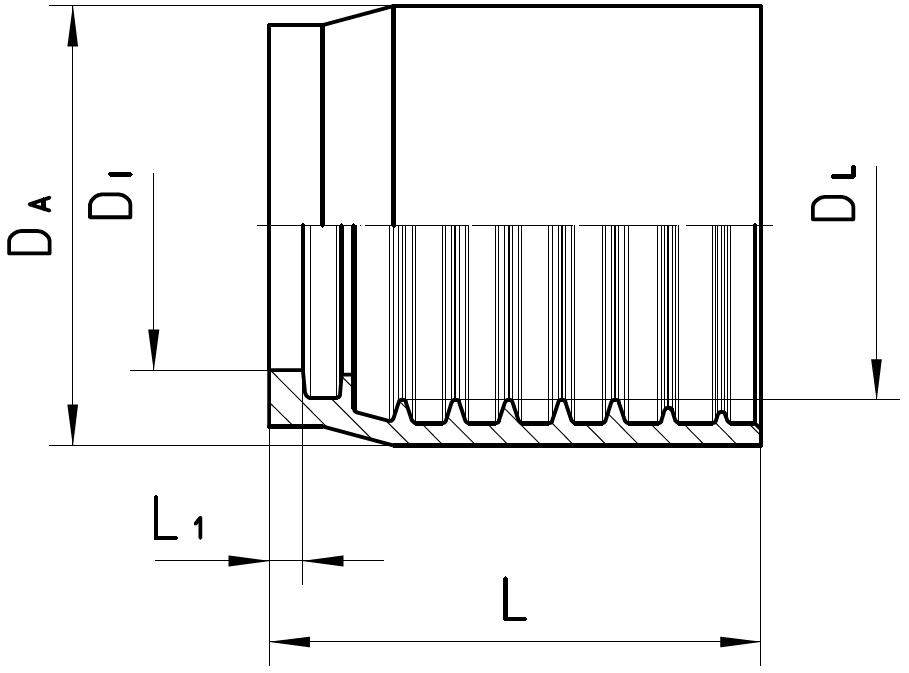

Order no. DN in mm DA in mm DI in mm DL in mm L in mm L1 in mm Note
101-04 06 22,0 11,3 15,5 30,0 2,4 *
101-05 08 24,0 13,0 17,5 30,0 2,4 *
101-06 10 27,0 14,5 19,6 32,0 2,4 *
101-08 12 30,0 19,0 22,9 34,0 2,5 **
101-10 16 34,0 21,5 26,1 37,0 2,5 **
101-12 19 38,0 24,8 30,1 42,5 2,9 **
101-16 25 48,0 30,7 39,0 51,0 3,8 *
101-20 31 60,0 38,5 49,7 53,0 3,9 *
101-24 38 67,0 44,0 56,0 57,0 4,2 *
101-32 51 81,0 57,0 68,8 72,0 5,0 *

Note
* only for 1SN /2SN hoses acc. to DIN EN 853 and 2SC hoses acc. to DIN EN 857
** for 1SN/2SN hoses acc. to DIN EN 853 and for 1SC/2SC hoses acc. to DIN EN 857
