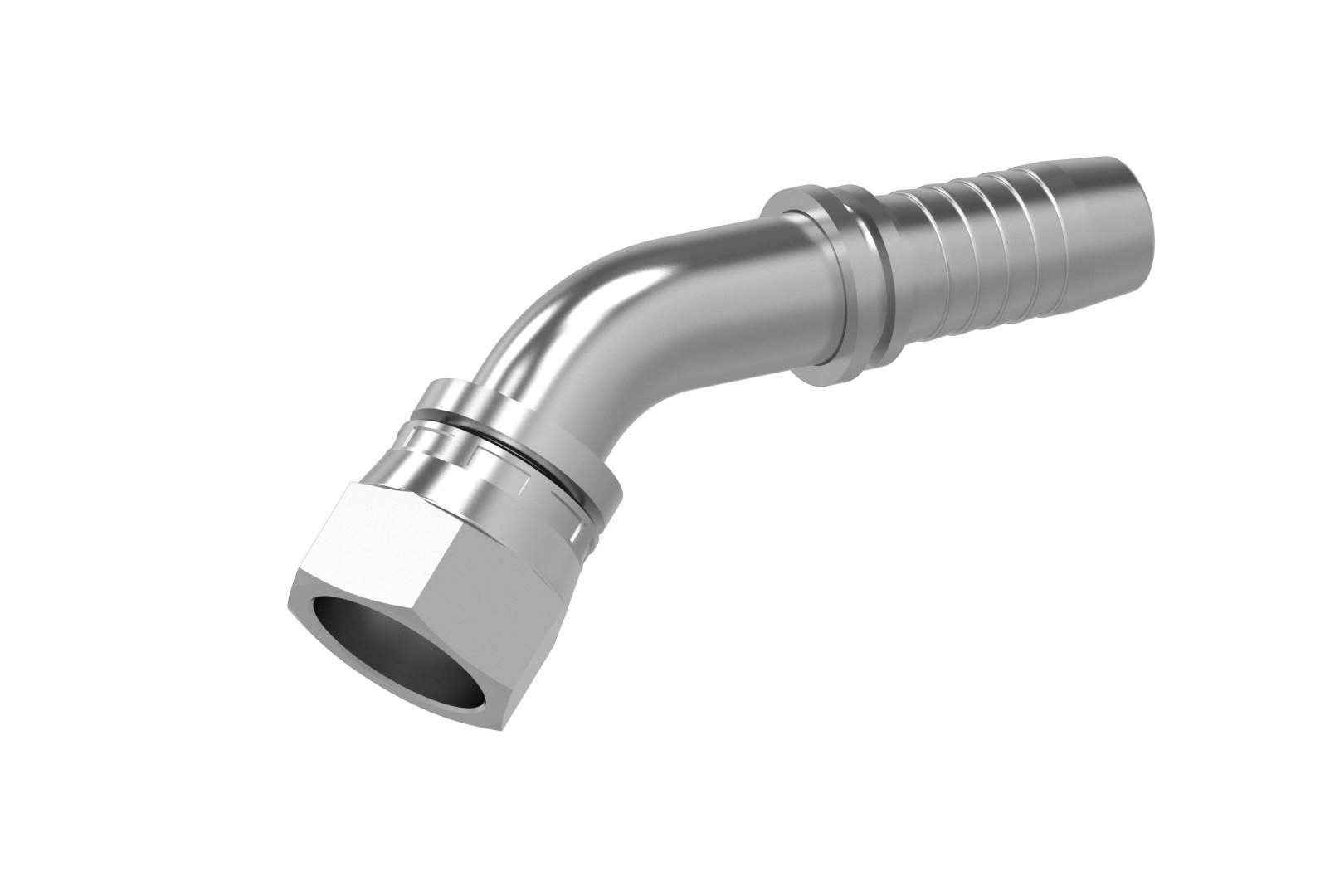

DKJ 45°

Connection Sealing head 74° inner cone with UN nut
Standard ISO 8434-2
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

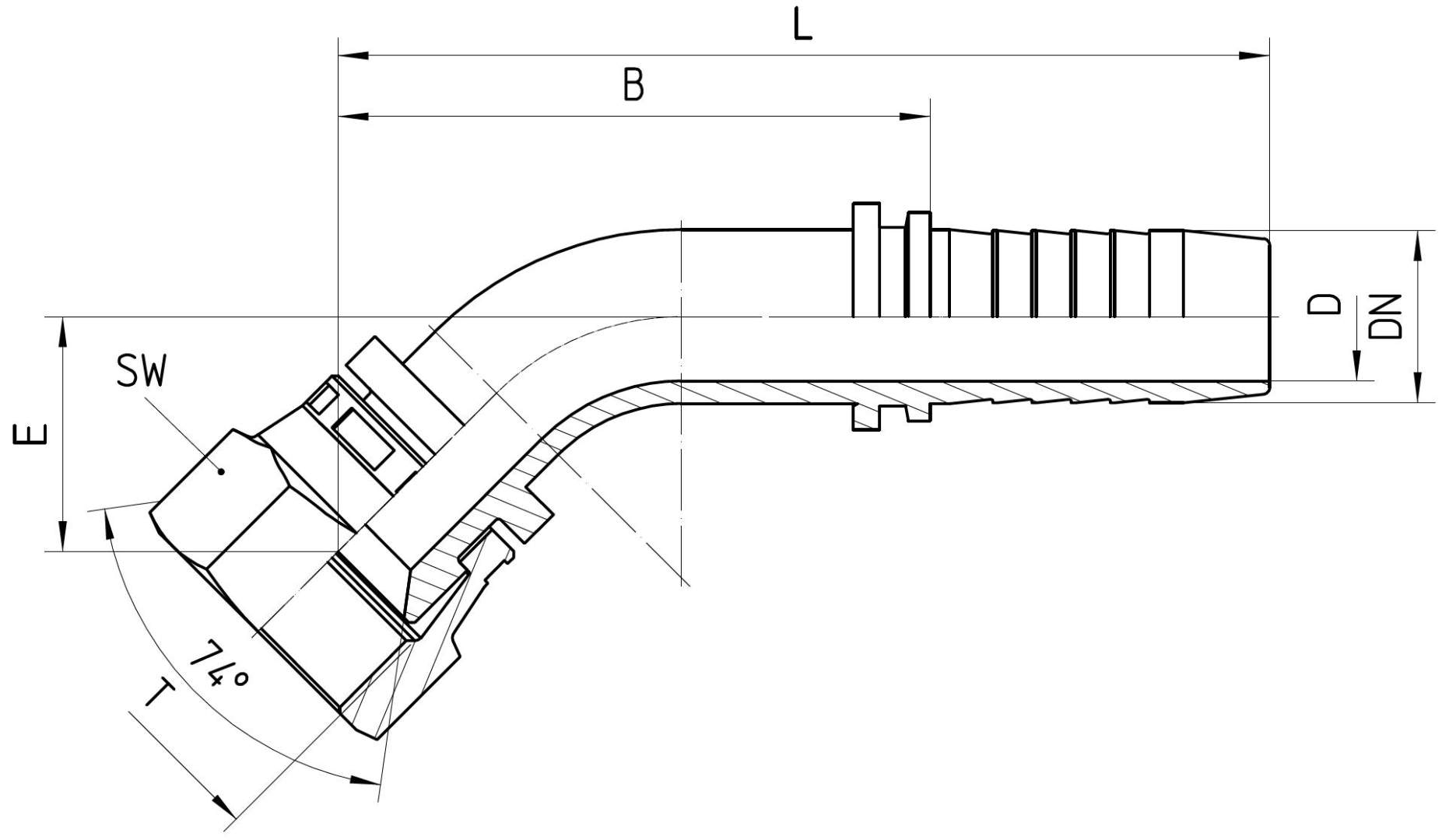

Order no. DN in mm T in UNF/UN SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.343-04-04 06 7/16-20 UNF 15 4,0 13 38 66
1.343-05-04 06 1/2-20 UNF 17 4,0 14 40 68
1.343-04-05 08 7/16-20 UNF 17 4,0 20 44 71
1.343-05-05 08 1/2-20 UNF 17 5,5 17 46 74
1.343-06-05 08 9/16-18 UNF 19 5,5 18 47 75
1.343-05-06 10 1/2-20 UNF 17 4,0 21 42 72
1.343-06-06 10 9/16-18 UNF 19 7,0 19 51 81
1.343-08-06 10 3/4-16 UNF 22 7,0 15 51 81
1.343-06-08 12 9/16-18 UNF 19 6,0 25 55 86
1.343-08-08 12 3/4-16 UNF 24 9,0 27 57 88
1.343-10-08 12 7/8-14 UNF 27 10,0 21 51 82
1.343-08-10 16 3/4-16 UNF 24 9,0 30 71 105
1.343-10-10 16 7/8-14 UNF 27 12,0 35 68 102
1.343-12-10 16 1 1/16-12 UN 32 12,0 40 73 107
1.343-10-12 19 7/8-14 UNF 27 12,0 34 81 120
1.343-12-12 19 1 1/16-12 UN 32 15,0 27 67 107
1.343-16-12 19 1 5/16-12 UN 38 15,0 30 72 112
1.343-12-16 25 1 1/16-16 UN 32 15,0 45 96 142
1.343-16-16 25 1 5/16-12 UN 41 21,0 41 82 128
1.343-20-16 25 1 5/8-12 UNF 55 21,0 50 100 147
1.343-16-20 31 1 5/16-20 UN 41 21,0 37 114 168
1.343-20-20 31 1 5/8-12 UN 55 26,5 44 114 168
1.343-24-20 31 1 7/8-12 UN 60 27,0 51 133 187
1.343-24-24 38 1 7/8-12 UN 60 32,8 47 116 173
1.343-32-32 51 2 1/2-12 UN 75 44,5 61 128 202
