Suction and low-pressure fittings

AGR conical straight

Connection
BSPT male thread (R) coned sealing

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

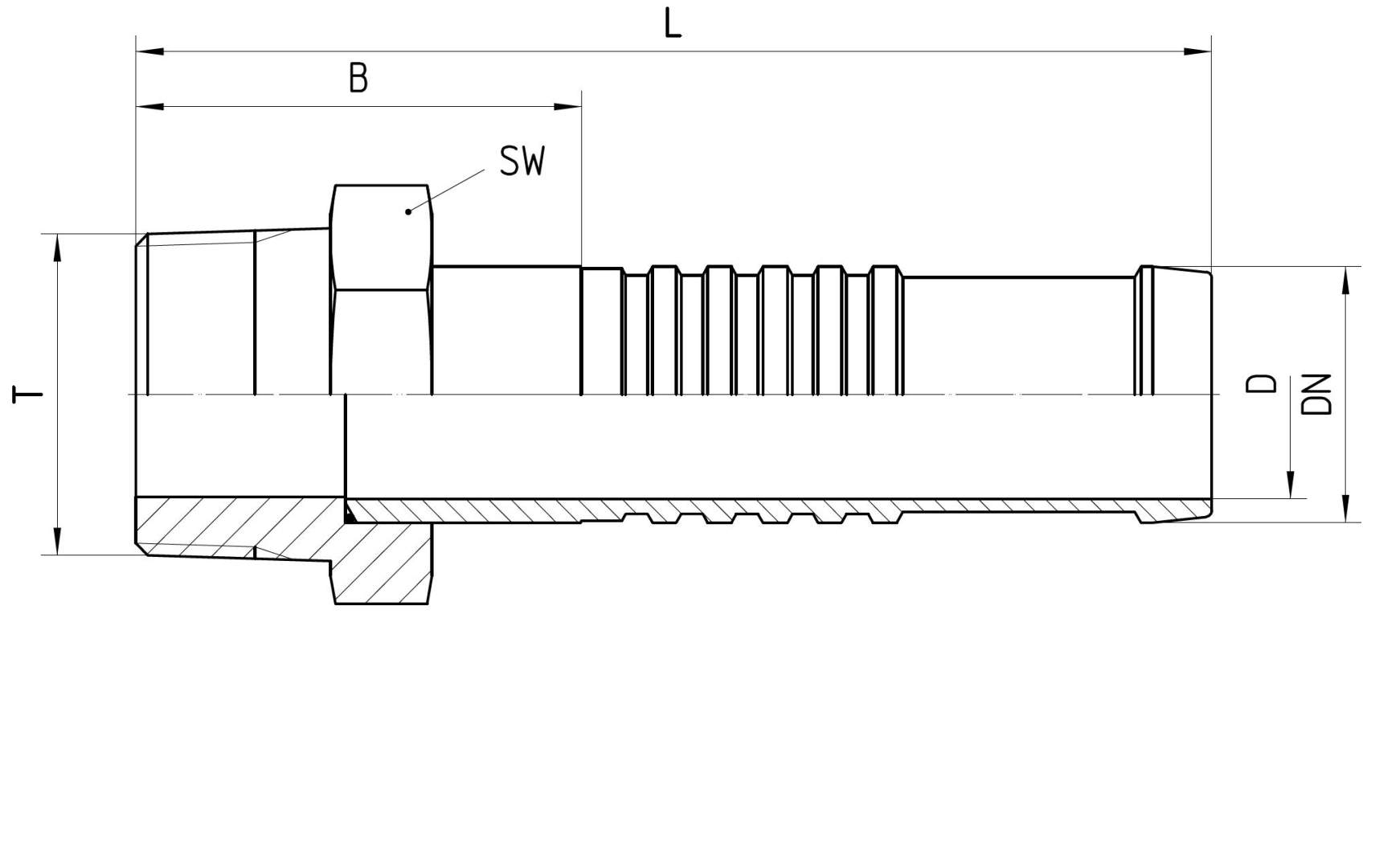

Order no. DN in mm T in inch SW in mm D in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.301-08-12 19 R 1/2 22 14 30 110 17.301K-08-12 37 81
17.301-12-12 19 R 3/4 30 14 42 122 17.301K-12-12 38 82
17.301-16-12 19 R 1 41 14 46 126 17.301K-16-12 42 86
17.301-12-16 25 R 3/4 27 19 40 120 17.301K-12-16 36 80
17.301-16-16 25 R 1 41 19 35 115 17.301K-16-16 41 85
17.301-20-16 25 R 1 1/4 46 19 47 127 17.301K-20-16 56 100
17.301-12-20 31 R 3/4 27 26 52 132 17.301K-12-20 36 80
17.301-16-20 31 R 1 41 26 56 136 17.301K-16-20 36 80
17.301-20-20 31 R 1 1/4 46 26 57 137 17.301K-20-20 49 93
17.301-24-20 31 R 1 1/2 50 26 57 137 17.301K-24-20 53 97
17.301-12-24 38 R 3/4 27 32 48 128 17.301K-12-24 44 88
17.301-16-24 38 R 1 41 32 44 124 17.301K-16-24 44 88
17.301-20-24 38 R 1 1/4 46 32 47 127 17.301K-20-24 43 87
17.301-24-24 38 R 1 1/2 50 32 47 127 17.301K-24-24 52 96
17.301-32-24 38 R 2 65 32 66 146 17.301K-32-24 62 106
17.301-16-32 51 R 1 41 44 73 165 17.301K-16-32 70 115
17.301-20-32 51 R 1 1/4 46 44 78 170 17.301K-20-32 71 116
17.301-24-32 51 R 1 1/2 50 44 78 170 17.301K-24-32 65 110
17.301-32-32 51 R 2 65 44 61 153 17.301K-32-32 68 113
17.301-40-32 51 R 2 1/2 80 44 63 155 17.301K-40-32 70 115
17.301-20-36 60 R 1 1/4 46 53 82 174 17.301K-20-36 71 116
17.301-24-36 60 R 1 1/2 50 53 82 174 17.301K-24-36 72 117
17.301-32-36 60 R 2 65 53 58 150 17.301K-32-36 77 122
17.301-40-36 60 R 2 1/2 80 53 63 155 17.301K-40-36 70 115
17.301-48-36 60 R 3 90 53 73 165 17.301K-48-36 80 125
17.301-32-48 76 R 2 65 69 92 184 17.301K-32-48 78 123
17.301-40-48 76 R 2 1/2 80 69 82 174 17.301K-40-48 69 114
17.301-48-48 76 R 3 90 69 85 177 17.301K-48-48 72 117
17.301-40-56 90 G 2 1/2 80 82 81 173 17.301K-40-56 88 133
17.301-48-56 90 G 3 90 82 78 170 17.301K-48-56 95 140
17.301-48-64 102 G 3 90 94 123 215 17.301K-48-64 104 152

Product information last updated on 20.06.2018 12:01:48
