Pressure fittings

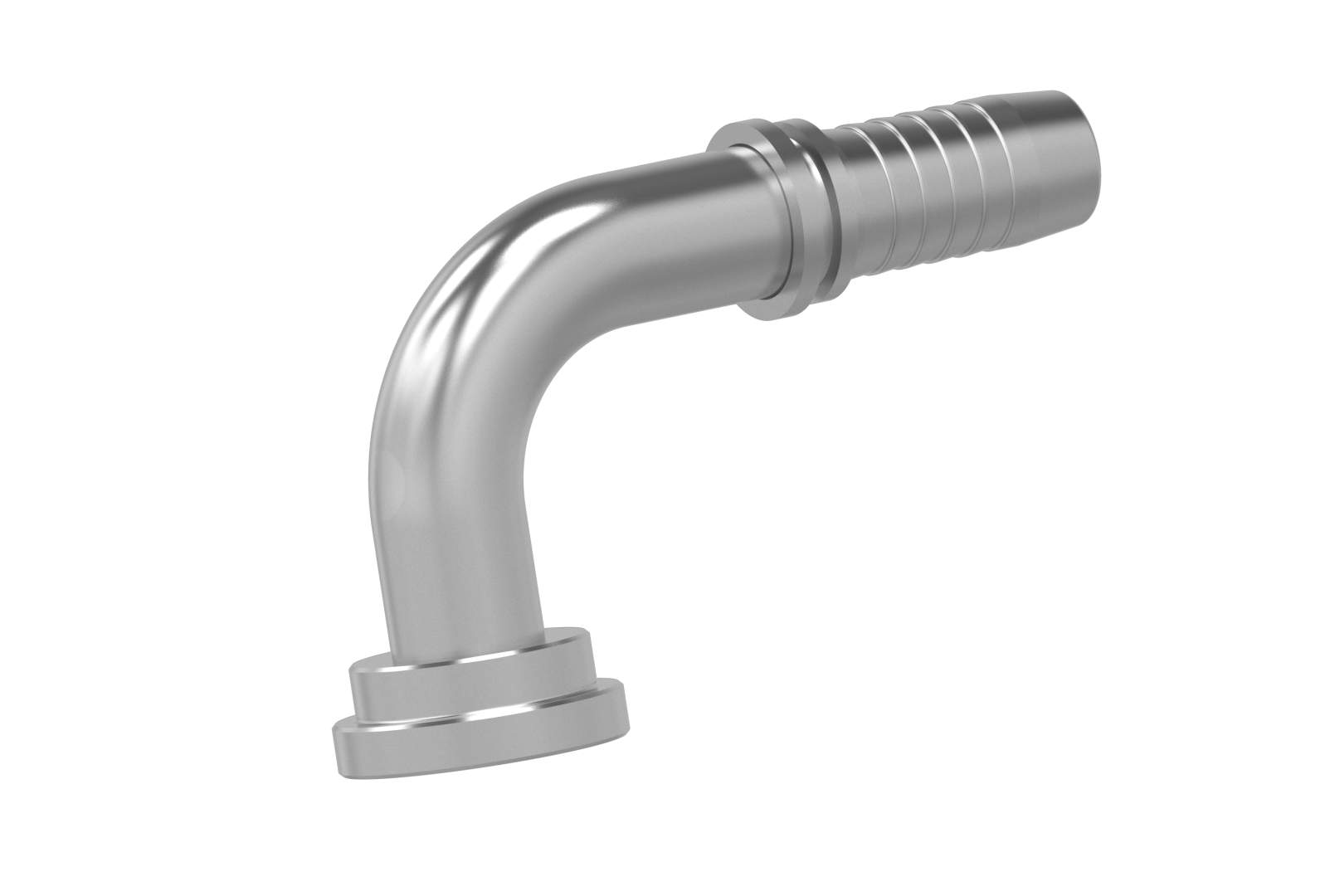

SFL 90°

Connection
SAE flange 3000PSI (L series)

Standard
ISO 6162-1

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

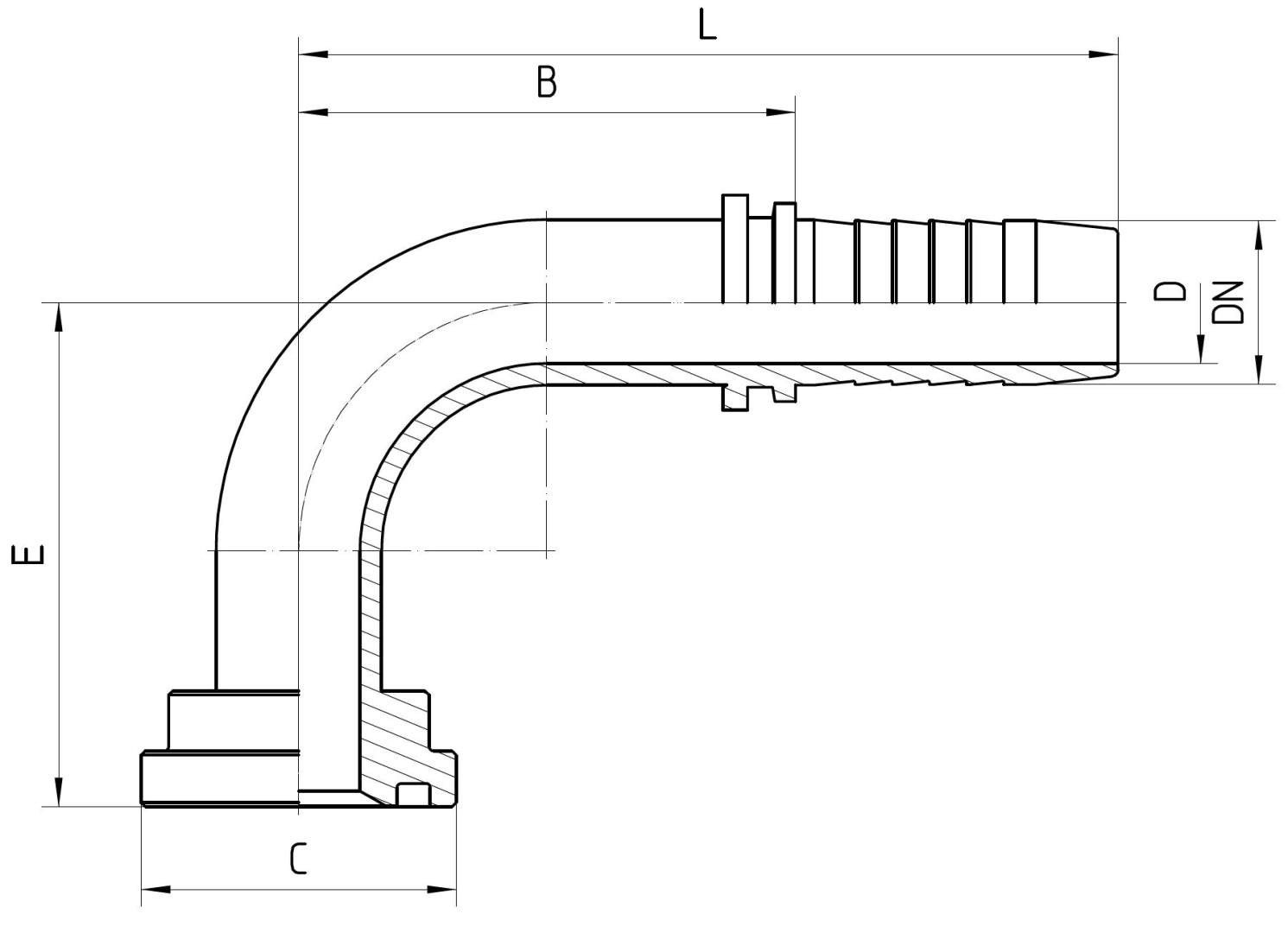

Order no. DN in mm flange in inch C in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.470-08-08 12 1/2 30,2 10,0 39 42 73
1.470-12-08 12 3/4 38,1 10,0 39 42 73
1.470-08-10 16 1/2 30,2 12,6 49 53 87
1.470-12-10 16 3/4 38,1 12,6 49 53 87
1.470-08-12 19 1/2 30,2 13,5 61 61 100
1.470-12-12 19 3/4 38,1 14,8 61 62 101
1.470-16-12 19 1 44,5 14,8 61 62 101
1.470-12-16 25 3/4 38,1 20,0 68 68 114
1.470-16-16 25 1 44,5 21,1 70 68 114
1.470-20-16 25 1 1/4 50,8 21,1 70 68 114
1.470-16-20 31 1 44,5 26,5 82 94 148
1.470-20-20 31 1 1/4 50,8 26,5 83 90 144
1.470-24-20 31 1 1/2 60,3 26,5 84 90 144
1.470-20-24 38 1 1/4 50,8 32,5 109 105 162
1.470-24-24 38 1 1/2 60,3 32,8 108 106 163
1.470-32-24 38 2 71,4 32,8 108 105 162
1.470-24-32 51 1 1/2 60,3 34,5 118 130 205
1.470-32-32 51 2 71,4 44,5 114 130 205
1.470-40-32 51 2 1/2 84,1 44,5 117 130 205
1.470-32-36 60 2 71,4 49,0 128 173 253
1.470-40-36 60 2 1/2 84,1 52,0 129 173 253
1.470-48-36 60 3 101,6 52,0 130 173 253
1.470-32-40 63 2 71,4 51.0 122 110 190
1.470-40-40 63 2 1/2 84,1 52.0 120 155 235
1.470-40-48 76 2 1/2 84,1 64,0 132 150 225
1.470-48-48 76 3 101,6 68,0 132 150 225
1.470-56-48 76 3 1/2 114,3 68,0 165 170 245
