Suction and low-pressure fittings

SFL straight

Connection
SAE flange 3000PSI (L series)

Standard
ISO 6162-1

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

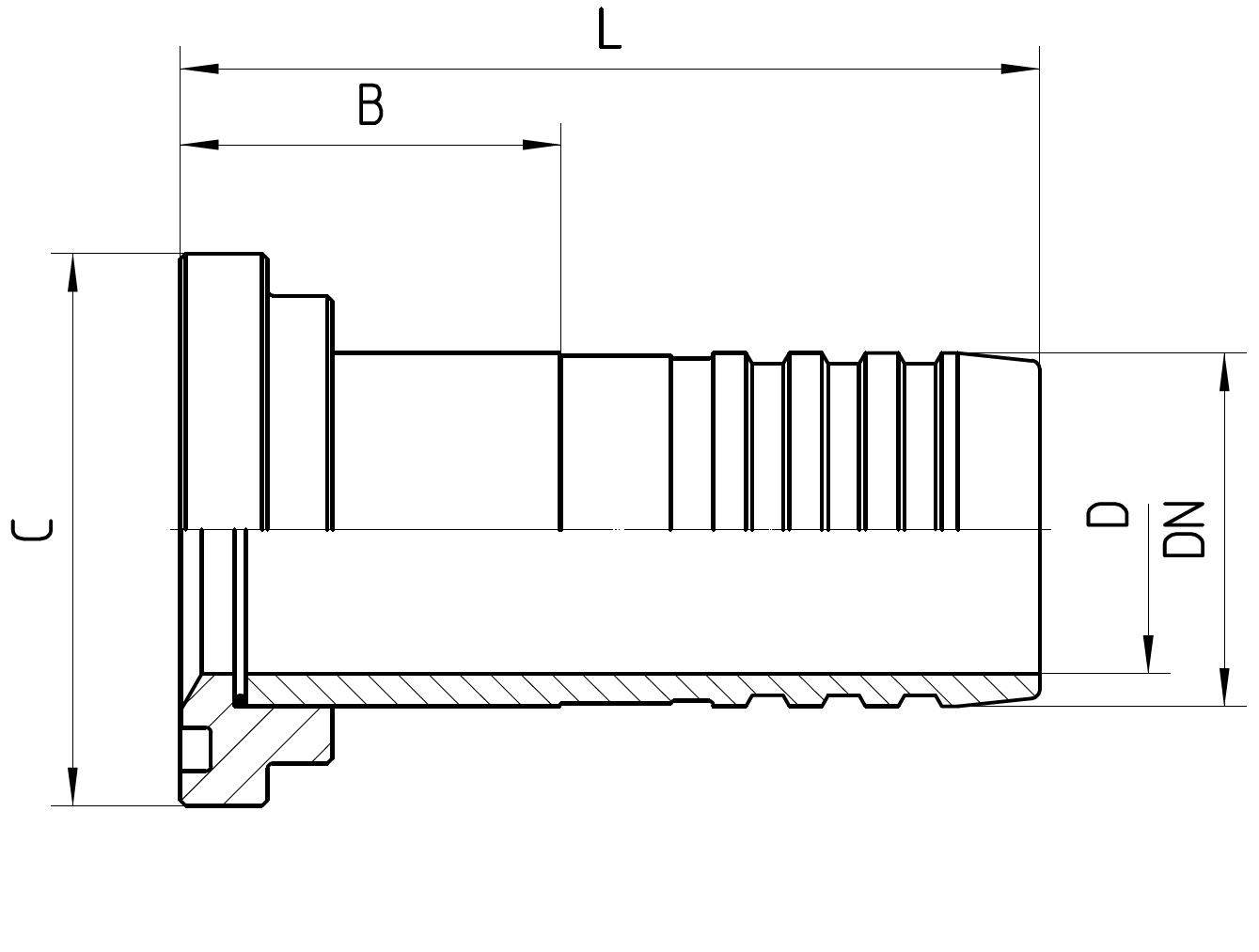

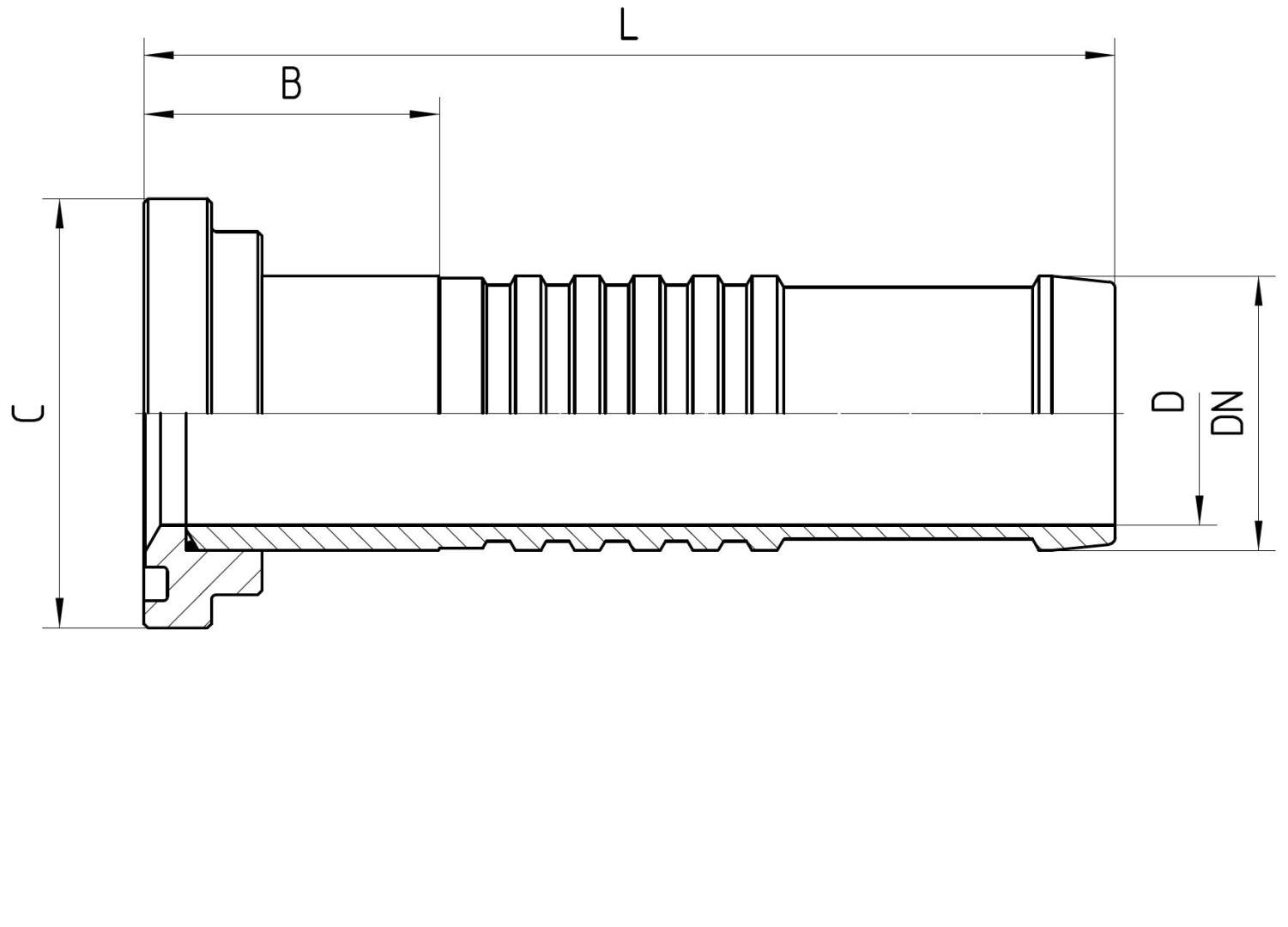

Order no. DN in mm flange in inch C in mm D in mm B±3 in mm L±3 in mm Order-No. B±3 in mm L±3 in mm
17.420-08-12 19 1/2 30,2 14 36 116 17.420K-08-12 32 76
17.420-12-12 19 3/4 38,1 14 27 107 17.420K-12-12 23 67
17.420-16-12 19 1 44,4 14 27 107 17.420K-16-12 23 67
17.420-20-12 19 1 1/4 50,8 14 24 104 17.420K-20-12 20 64
17.420-12-16 25 3/4 38,1 19 46 126 17.420K-12-16 42 86
17.420-16-16 25 1 44,4 19 27 107 17.420K-16-16 23 67
17.420-20-16 25 1 1/4 50,8 19 27 107 17.420K-20-16 23 67
17.420-24-16 25 1 1/2 60,3 19 28 108 17.420K-24-16 24 68
17.420-12-20 31 3/4 38,1 26 68 148 17.420K-12-20 44 88
17.420-16-20 31 1 44,4 26 47 127 17.420K-16-20 43 87
17.420-20-20 31 1 1/4 50,8 26 37 117 17.420K-20-20 33 77
17.420-24-20 31 1 1/2 60,3 26 38 118 17.420K-24-20 44 88
17.420-32-20 31 2 71,4 26 47 127 17.420K-32-20 43 87
17.420-16-24 38 1 44,4 32 49 129 17.420K-16-24 45 89
17.420-20-24 38 1 1/4 50,8 32 47 127 17.420K-20-24 43 87
17.420-24-24 38 1 1/2 60,3 32 28 108 17.420K-24-24 34 78
17.420-32-24 38 2 71,4 32 46 126 17.420K-32-24 42 86
17.420-40-24 38 2 1/2 84,1 32 46 126 17.420K-40-24 62 106
17.420-20-32 51 1 1/4 50,8 44 71 163 17.420K-20-32 73 118
17.420-24-32 51 1 1/2 60,3 44 63 155 17.420K-24-32 60 105
17.420-32-32 51 2 71,4 44 36 128 17.420K-32-32 53 98
17.420-40-32 51 2 1/2 84,1 44 46 138 17.420K-40-32 63 108
17.420-48-32 51 3 101,6 44 45 137 17.420K-48-32 63 108
17.420-24-36 60 1 1/2 60,3 53 62 154 17.420K-24-36 75 120
17.420-32-36 60 2 71,4 53 58 150 17.420K-32-36 65 110
17.420-40-36 60 2 1/2 84,1 53 38 130 17.420K-40-36 45 90
17.420-48-36 60 3 101,6 53 58 150 17.420K-48-36 65 110
17.420-56-36 60 3 1/2 114,3 53 127 219 17.420K-56-36 75 120
17.420-32-48 76 2 71,4 69 93 185 17.420K-32-48 100 145
17.420-40-48 76 2 1/2 84,1 69 77 169 17.420K-40-48 84 129
17.420-48-48 76 3 101,6 69 58 150 17.420K-48-48 64 109
17.420-56-48 76 3 1/2 114,3 69 67 159 17.420K-56-48 82 127
17.420-64-48 76 4 127,0 69 93 185 17.420K-64-48 80 125
17.420-40-56 90 2 1/2 84,1 82 100 192 17.420K-40-56 107 152
17.420-48-56 90 3 101,6 82 80 172 17.420K-48-56 87 132
17.420-56-56 90 3 1/2 114,3 82 80 172 17.420K-56-56 67 112
17.420-64-56 90 4 127,0 82 80 172 17.420K-64-56 97 142
17.420-80-56 90 5 152,4 82 146 238 17.420K-80-56 103 148
17.420-48-64 102 3 101,6 94 96 188 17.420K-48-64 98 146
17.420-56-64 102 3 1/2 114,3 94 83 175 17.420K-56-64 87 135
17.420-64-64 102 4 127,0 94 73 165 17.420K-64-64 77 125
17.420-80-64 102 5 152,4 94 91 183 17.420K-80-64 95 143
17.420-56-96 152 3 1/2 114,3 142 212 340 17.420K-56-96 205 285
17.420-64-96 152 4 127,0 142 210 338 17.420K-64-96 202 282
17.420-80-96 152 5 152,4 142 82 210 17.420K-80-96 92 172
