Pressure fittings

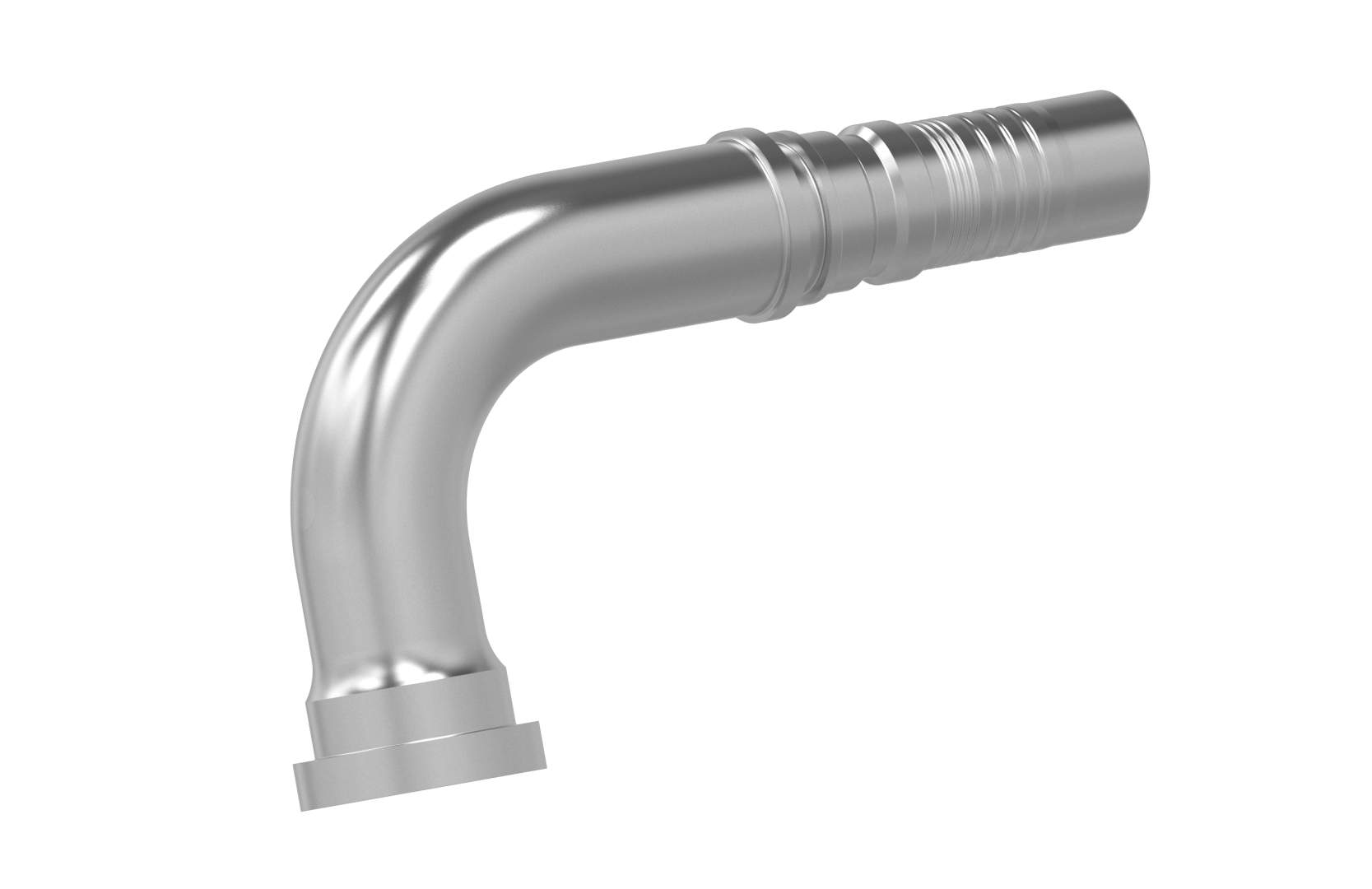

SFS 90°

Connection
SAE flange 6000PSI (S series)

Standard
ISO 6162-2

Application
4SH / R15 / R13 (DN51) flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

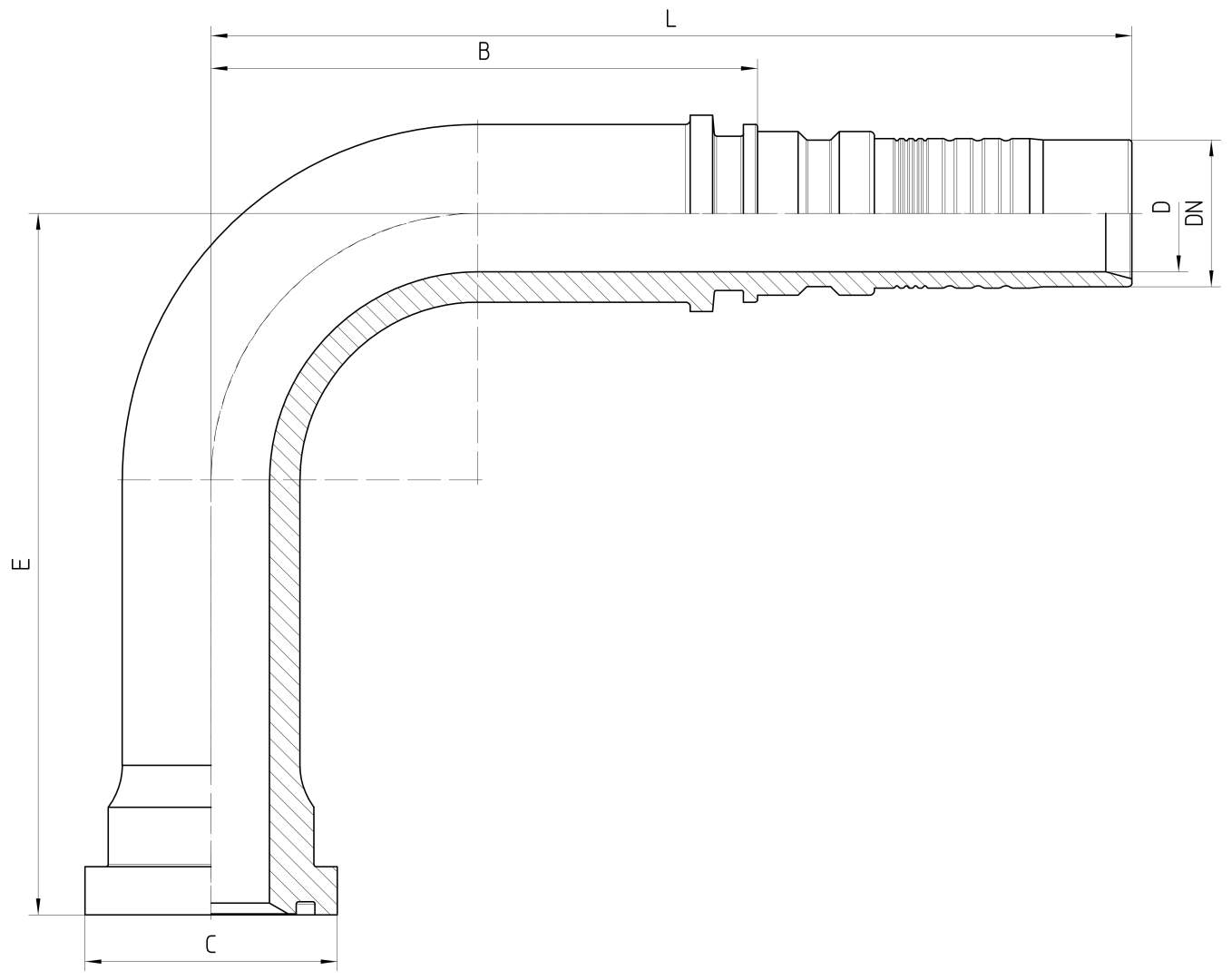

Order no. DN in mm flange in inch C in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
7.471-12-12 19 3/4 41,3 15,0 64 71 127
7.471-16-16 25 1 47,6 20,0 88 93 160
7.471-20-16 25 1 1/4 54,0 20,0 100 93 160
7.471-16-20 31 1 47,6 25,0 96 117 197
7.471-20-20 31 1 1/4 54,0 25,0 108 117 197
7.471-20-24 38 1 1/4 54,0 30,0 115 139 230
7.471-24-24 38 1 1/2 63,5 30,0 117 139 230
7.471-32-32 51 2 79,4 40,0 140 133 224
