Pressure fittings

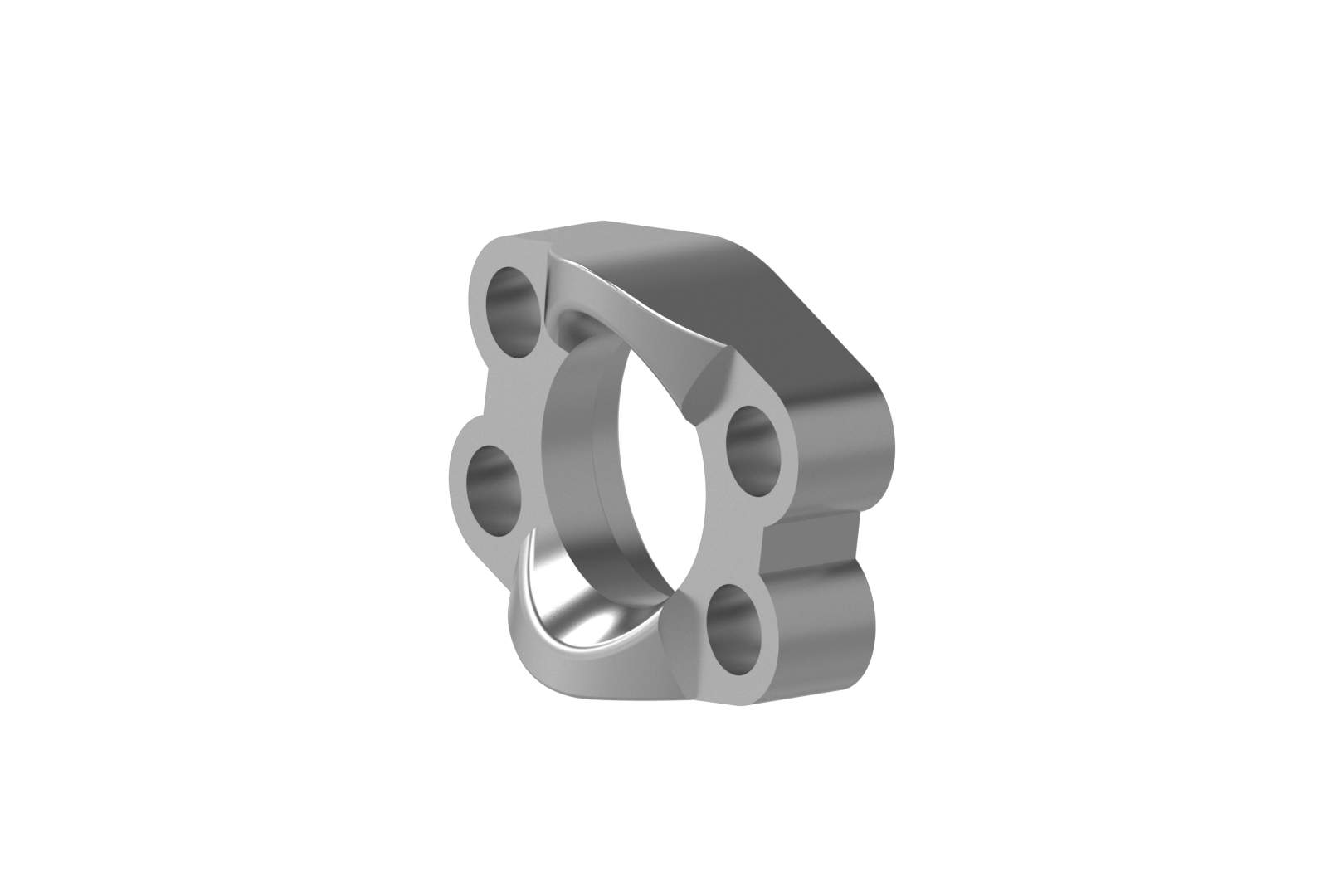

SAE 3000 PSI solid flange
Material
Steel
Surface protection
Zinc-electroplated

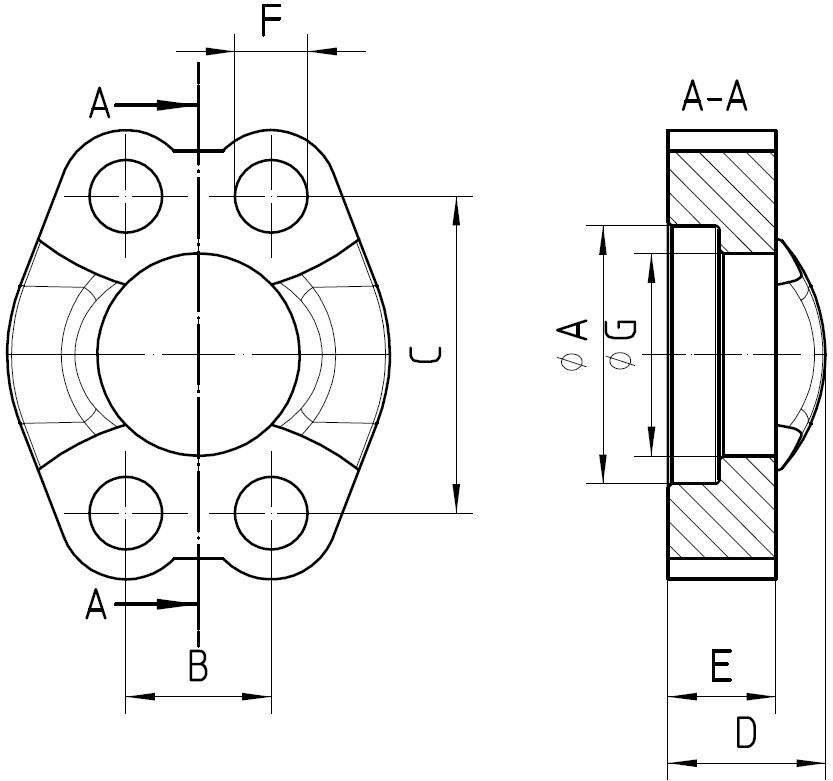

| Order no. | old Order no. | SAE-size in inch | A in mm | G in mm | B in mm | C in mm | D in mm | E in mm | strength class in mm | for bolt |
|---|---|---|---|---|---|---|---|---|---|---|
| 490-001 | 490- 8 | 1/2 | 31,0 | 24,3 | 17,5 | 38,1 | 19 | 13 | 8,8 | M 8x25 |
| 490-003 | 490-12 | 3/4 | 38,9 | 32,1 | 22,2 | 47,6 | 22 | 14 | 10,8 | M 10x30 |
| 490-005 | 490-16 | 1 | 45,2 | 38,5 | 26,2 | 52,4 | 24 | 16 | 10,8 | M 10x35 |
| 490-007 | 490-16 S | 1 | 45,2 | 38,5 | 26,2 | 52,4 | 26 | 26 | 10,8 | M 10x45 |
| 490-008 | 490-20 | 1 1/4 | 51,6 | 43,7 | 30,2 | 58,7 | 22 | 16 | 12,0 | M 10x35 |
| 490-010 | 490-20 S | 1 1/4 | 51,6 | 43,7 | 30,2 | 58,7 | 33 | 24 | 13,0 | M 12x45 |
| 490-011 | 490-24 | 1 1/2 | 61,1 | 50,8 | 35,7 | 69,9 | 25 | 16 | 13,5 | M 12x35 |
| 490-013 | 490-24 S | 1 1/2 | 61,1 | 50,8 | 35,7 | 69,9 | 37 | 27 | 13,5 | M 12x50 |
| 490-014 | 490-32 | 2 | 72,2 | 62,7 | 42,9 | 77,8 | 26 | 16 | 13,5 | M 12x35 |
| 490-017 | 490-32 S | 2 | 72,2 | 62,7 | 42,9 | 77,8 | 43 | 30 | 13,5 | M 12x50 |
| 490-018 | 490-40 | 2 1/2 | 84,9 | 74,9 | 50,8 | 88,9 | 38 | 19 | 13,5 | M 12x40 |
| 490-020 | 490-48 | 3 | 102,4 | 90,9 | 61,9 | 106,4 | 41 | 22 | 16,8 | M 16x45 |
| 490-023 | 490-56 | 3 1/2 | 115,1 | 102,4 | 69,8 | 120,6 | 28 | 22 | 17,0 | M 16x45 |
| 490-025 | 490-64 | 4 | 127,8 | 115,1 | 77,8 | 130,2 | 35 | 25 | 17,0 | M 16x50 |
| 490-027 | 490-80 | 5 | 153,2 | 140,5 | 92,1 | 152,4 | 41 | 28 | 17,0 | M 16x50 |
Product information last updated on 11.06.2019 12:21:07
Request this product
Are you interested in this product? Our contact partners are happy to answer any questions you may have about our products.
Individual customisations?
Do you require special sizes, different angles or complete customisation? We provide solutions tailored to your specific requirements.
Order today by 4 pm. If stock is available, dispatch will be on the same day.
