Pressure fittings

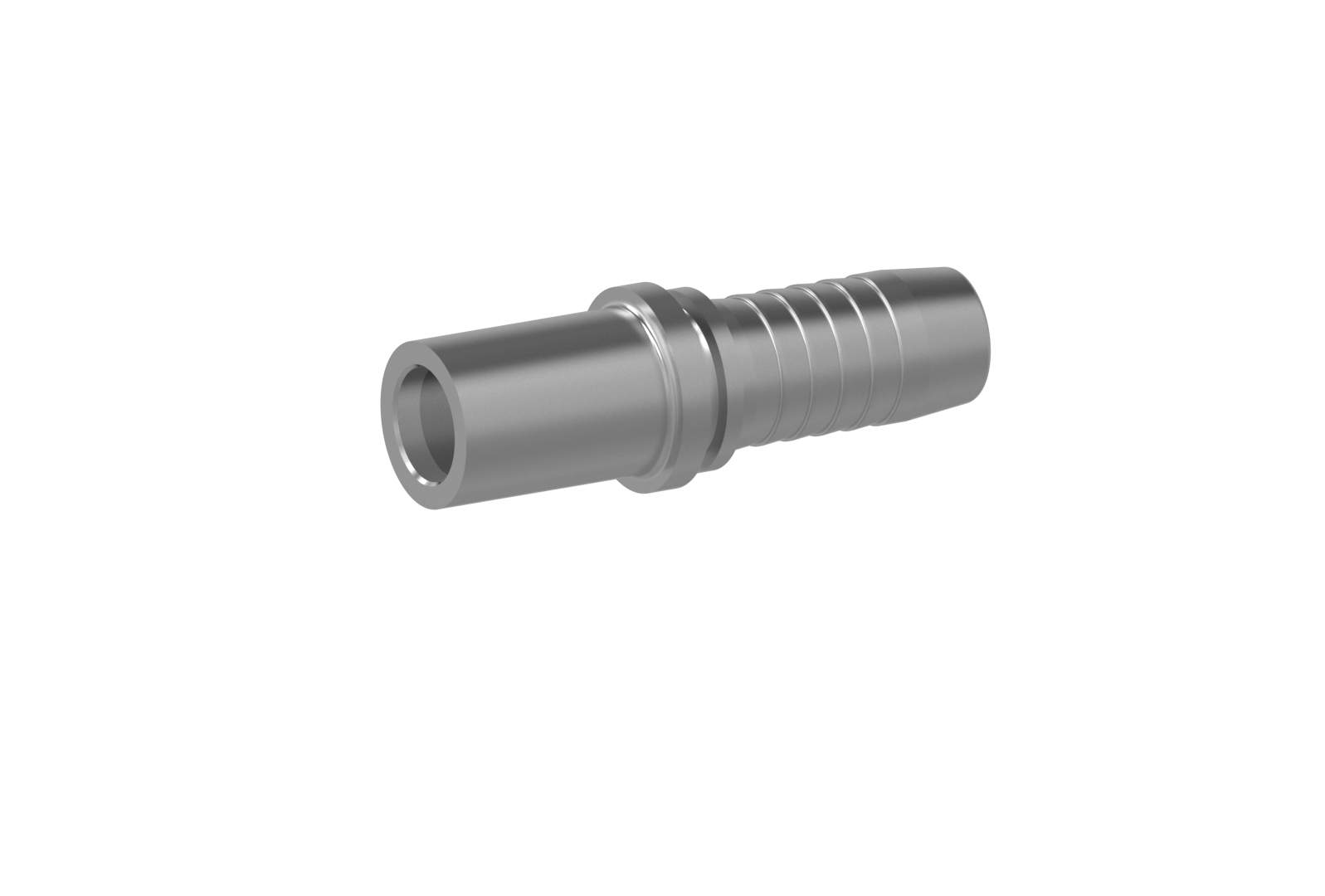

BEL straight

Connection
Pipe connection for cutting ring coupling L series

Standard
ISO 8434-1

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

Order no. DN in mm RA min. D in mm B±3 in mm L±3 in mm
1.103-03-04 06 6L 3,5 34 61
1.103-04-04 06 8L 4,0 34 61
1.103-05-04 06 10L 4,0 36 63
1.103-04-05 08 8L 4,0 30 57
1.103-05-05 08 10L 5,5 30 57
1.103-06-05 08 12L 5,5 32 59
1.103-05-06 10 10L 7,0 30 60
1.103-06-06 10 12L 7,0 32 62
1.103-08-06 10 15L 7,0 34 64
1.103-06-08 12 12L 7,0 34 65
1.103-08-08 12 15L 10,0 36 67
1.103-10-08 12 18L 10,0 39 70
1.103-10-10 16 18L 13,0 38 72
1.103-12-12 19 22L 15,0 41 80
1.103-16-16 25 28L 21,0 47 93
1.103-20-20 31 35L 27,0 47 101
1.103-24-24 38 42L 36,0 73 130

Product information last updated on 13.01.2020 11:16:19
