Pressure fittings

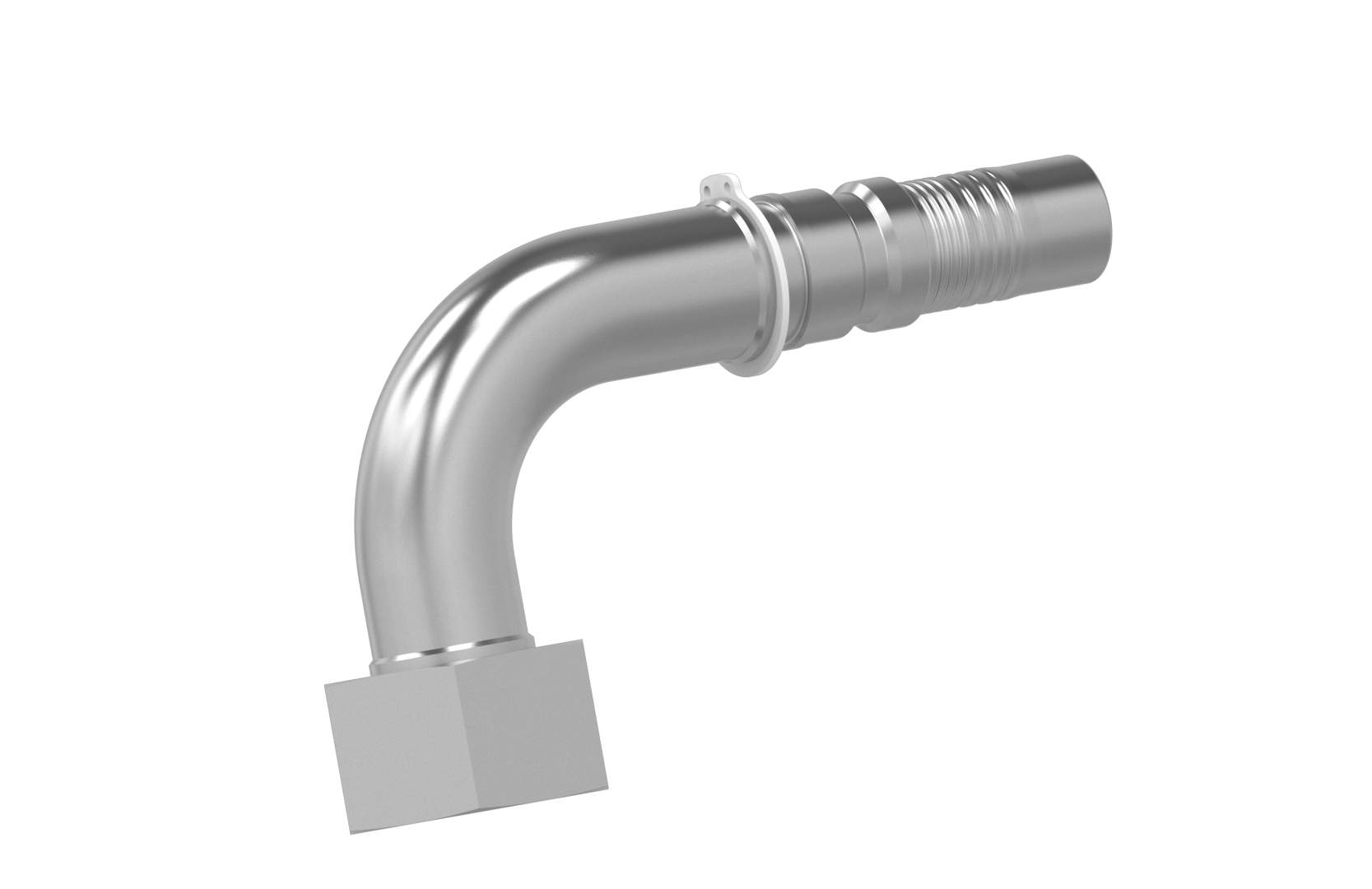

DKOS 90°

Connection
Sealing head 24° outside cone O-ring sealing with metric nut S series

Standard
ISO 8434-1

Application
4SH / R15 / R13 (DN51) flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

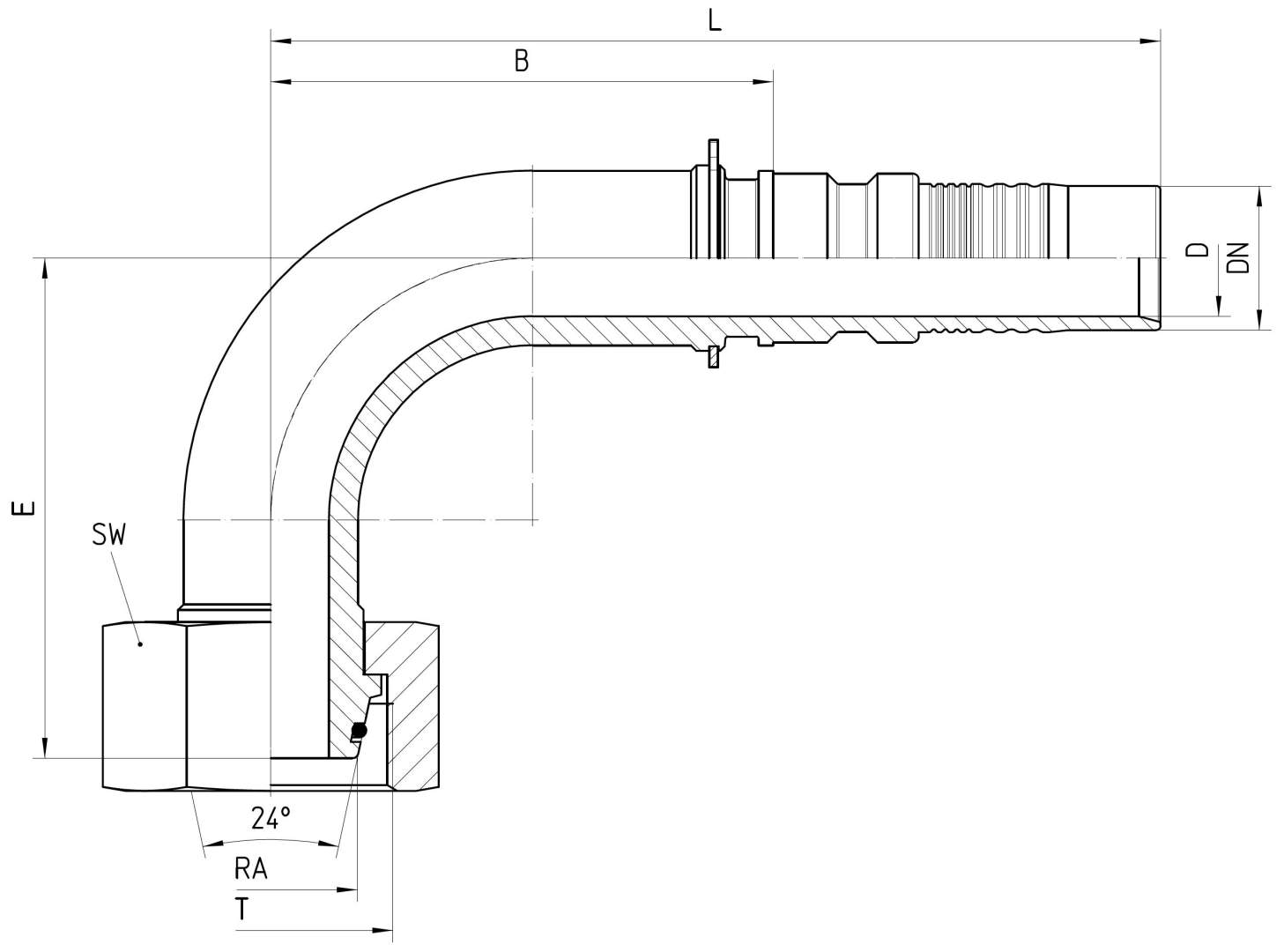

Order no. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm Note
7.089-10-10 16 20S M 30x2 36 12,0 59 52 104
7.089-12-12/SW41 19 25S M 36x2 41 15,0 71 65 121
7.089-12-12/SW46 19 25S M 36x2 46 15,0 71 65 121
7.089-16-12 19 30S M 42x2 50 15,0 74 65 121
7.089-12-16/SW46 25 25S M 36x2 46 17,0 94 93 160 *
7.089-16-16 25 30S M 42x2 50 20,0 86 84 153
7.589-20-16 25 38S M 52x2 60 20,0 111 84 151
7.589-20-20 31 38S M 52x2 60 25,0 110 117 197
7.589-20-24 38 38S M 52x2 60 25,0 135 124 215 *

Note
* wire nut
