Pressure fittings

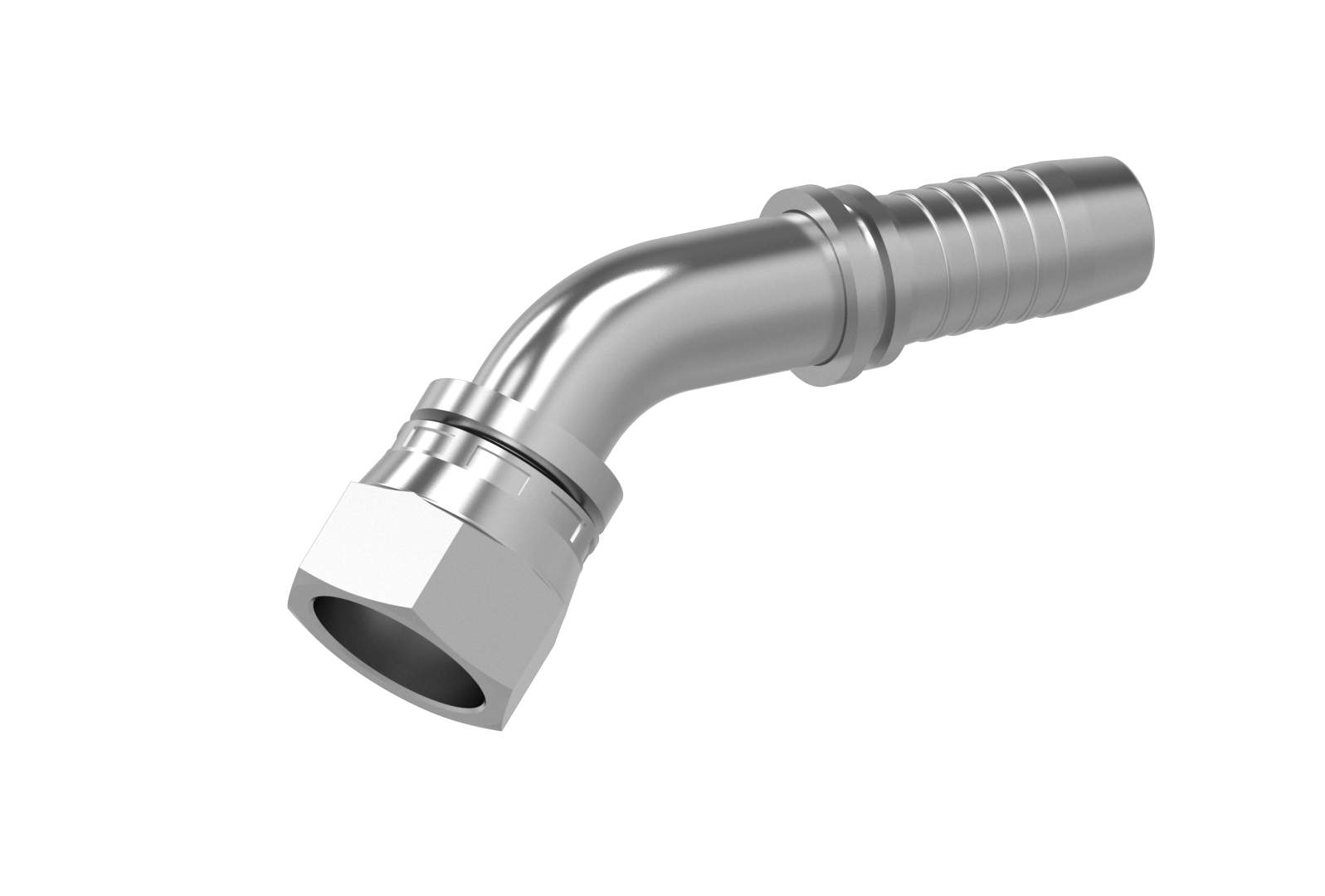

DKR 45°

Connection Sealing head 60° outside cone with BSPP nut (G)
Standard ISO 8434-6
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated
Order no. DN in mm T in inch SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.233-04-04 06 1/4 19 4,0 15 41 69
1.233-06-04 06 3/8 22 4,0 18 44 72
1.233-04-05 08 1/4 17 5,5 15 38 65
1.233-06-05 08 3/8 22 5,5 19 51 79
1.233-06-06 10 3/8 22 7,0 15 38 68
1.233-08-06 10 1/2 27 7,0 16 39 69
1.233-06-08 12 3/8 22 7,0 26 56 87
1.233-08-08 12 1/2 27 10,0 29 59 90
1.233-10-08 12 5/8 30 10,0 30 57 88
1.233-08-10 16 1/2 27 10,0 33 71 105
1.233-10-10 16 5/8 30 12,0 36 68 102
1.233-12-10 16 3/4 32 12,6 30 73 107
1.233-10-12 19 5/8 30 12,0 38 81 120
1.233-12-12 19 3/4 32 14,8 40 84 123
1.233-16-12 19 1 41 14,8 42 85 124
1.233-12-16 25 3/4 32 14,8 42 91 137
1.233-16-16 25 1 41 21,0 45 94 140
1.233-20-16 25 1 1/4 50 20,0 43 93 139
1.233-16-20 31 1 41 21,0 40 113 167
1.233-20-20 31 1 1/4 50 26,5 48 123 177
1.233-24-20 31 1 1/2 55 26,5 50 114 168
1.233-20-24 38 1 1/4 50 26,5 62 128 185
1.233-24-24 38 1 1/2 55 32,5 64 133 191
1.233-32-24 38 2 70 32,5 65 131 188
1.233-24-32 51 1 1/2 55 32,5 57 127 202
1.233-32-32 51 2 70 44,5 65 140 215
1.233-40-36 60 2 1/2 85 52,0 53 148 228
