Pressure fittings

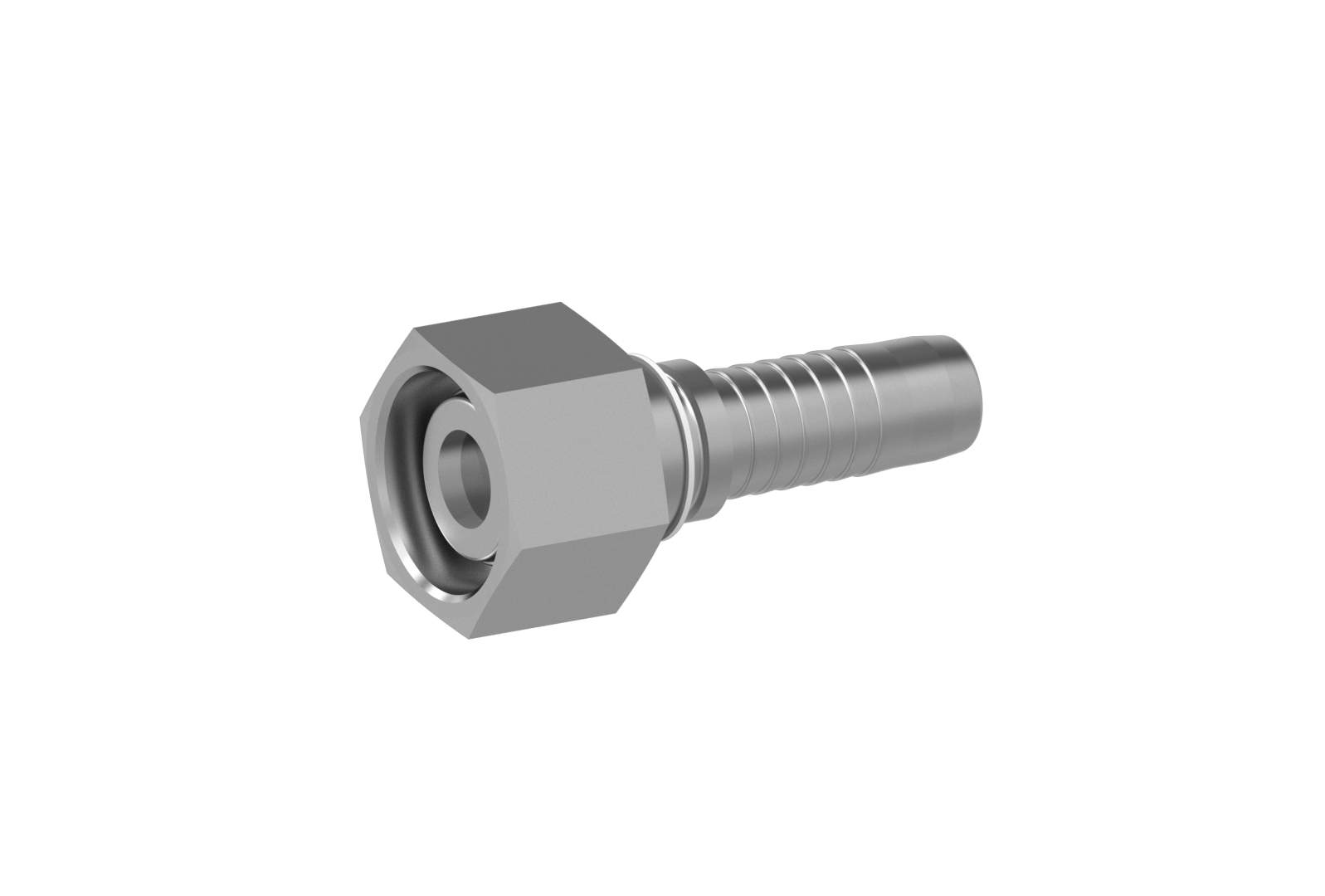

DKOS straight

Connection
Sealing head 24° outside cone O-ring sealing with metric nut S series

Standard
ISO 8434-1

Application
3SPC / 4SP hoses

Material
Steel

Surface protection
Zinc-electroplated

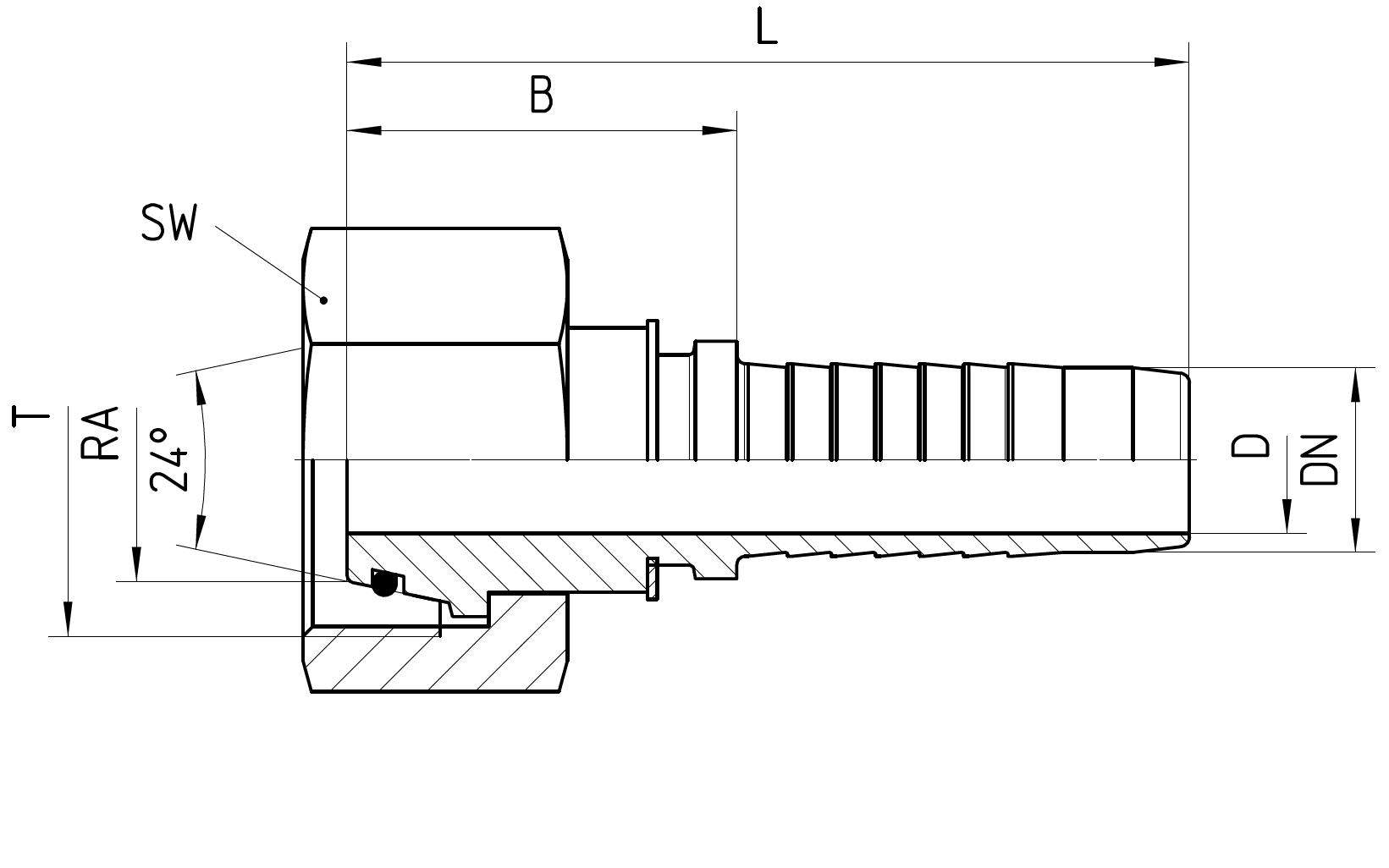

Order no. DN in mm RA T SW in mm min. D in mm B±3 in mm L±3 in mm
4.081-03-04 06 8S M 16x1.5 19 4,0 29 62
4.081-04-04 06 10S M 18x1.5 22 4,0 30 64
4.081-05-04 06 12S M 20x1.5 24 4,0 29 63
4.081-05-06 10 12S M 20x1.5 24 7,0 29 63
4.081-06-06 10 14S M 22x1.5 27 7,0 30 65
4.081-08-06 10 16S M 24x1.5 30 7,0 30 64
4.081-06-08 12 14S M 22x1.5 27 7,0 35 73
4.081-08-08 12 16S M 24x1.5 30 9,0 30 68
4.081-10-08 12 20S M 30x2.0 36 9,0 36 74
4.081-08-10 16 16S M 24x1.5 30 10,0 34 76
4.081-10-10 16 20S M 30x2.0 36 12,0 36 78
4.081-12-10/SW41 16 25S M 36x2.0 41 12,0 36 78
4.081-12-10/SW46 16 25S M 36x2.0 46 12,0 36 78
4.081-10-12 19 20S M 30x2.0 36 13,0 37 83
4.081-12-12/SW41 19 25S M 36x2.0 41 15,0 40 86
4.081-12-12/SW46 19 25S M 36x2.0 46 15,0 40 86
4.081-16-12 19 30S M 42x2.0 50 14,8 39 85
4.081-12-16/SW46 25 25S M 36x2.0 46 15,0 43 98
4.081-16-16 25 30S M 42x2.0 50 21,0 45 101
4.081-20-16 25 38S M 52x2.0 60 21,1 44 99

Product information last updated on 20.06.2018 12:01:48
