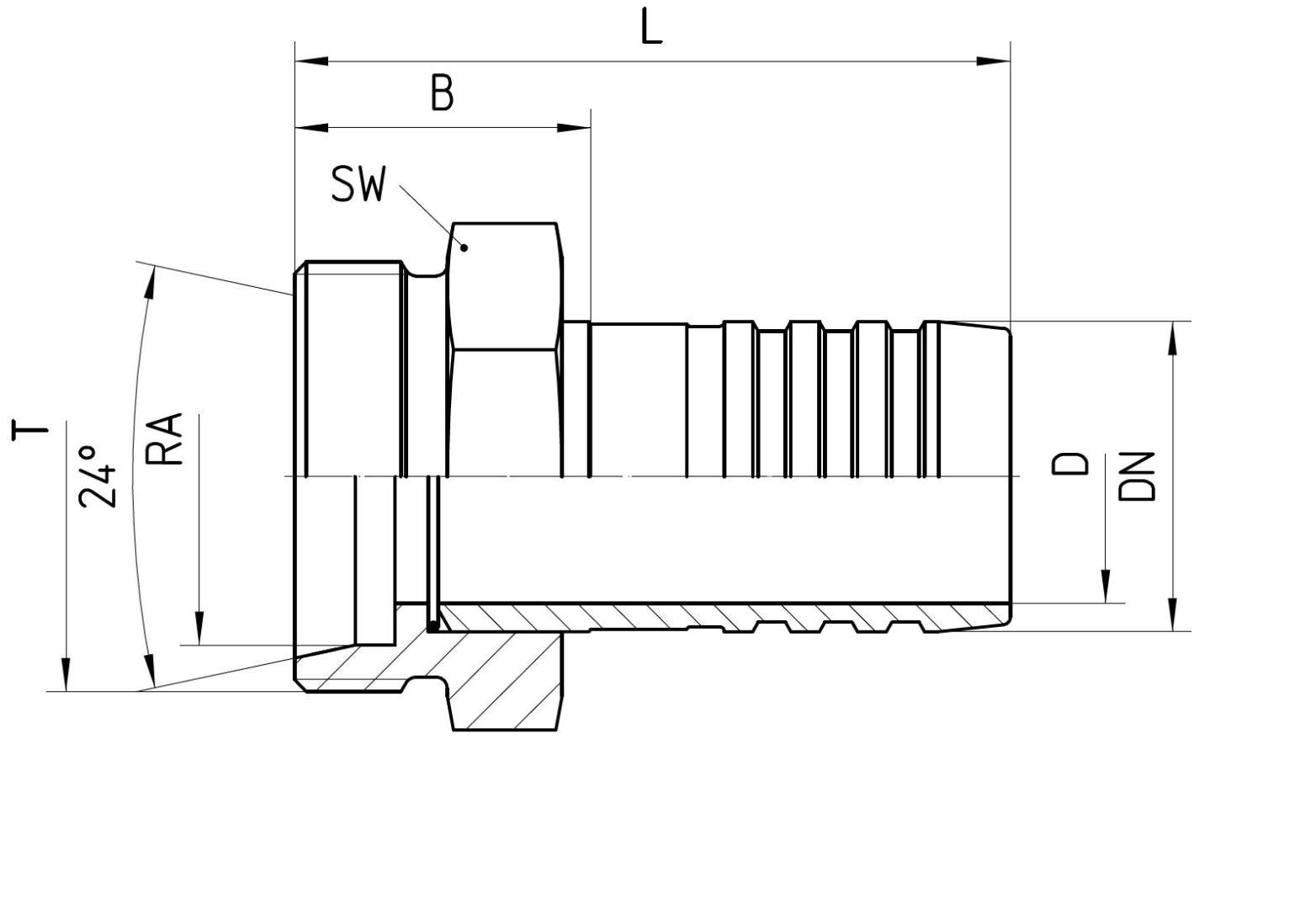

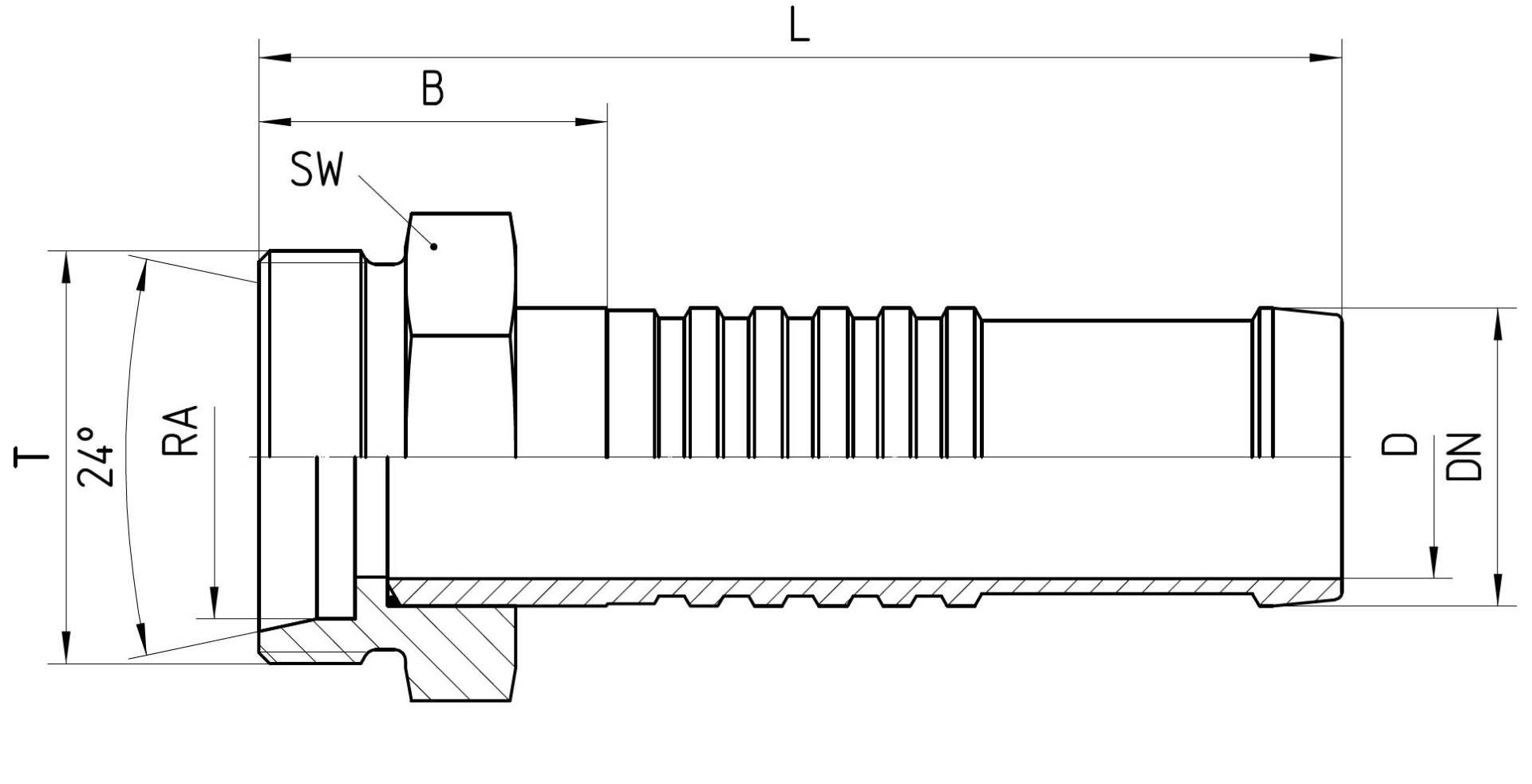

CEL straight

Connection
Metric male thread 24° with inner cone and pipe connection L series

Standard
ISO 8434-1

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

Order no. RA G DN in mm SW in mm D in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.170-10-12 18L M 26x1.5 19 27 14 32 112 17.170K-10-12 28 72
17.170-12-12 22L M 30x2.0 19 36 14 34 114 17.170K-12-12 30 74
17.170-16-12 28L M 36x2.0 19 36 14 35 115 17.170K-16-12 31 75
17.170-12-16 22L M 30x2.0 25 36 19 46 126 17.170K-12-16 42 86
17.170-16-16 28L M 36x2.0 25 36 19 35 115 17.170K-16-16 31 75
17.170-20-16 35L M 45x2.0 25 46 19 34 114 17.170K-20-16 34 78
17.170-24-16 42L M 52x2.0 25 55 19 41 121 17.170K-24-16 37 81
17.170-12-20 22L M 30x2.0 31 36 26 48 128 17.170K-12-20 44 88
17.170-16-20 28L M 36x2.0 31 36 26 37 117 17.170K-16-20 33 77
17.170-20-20 35L M 45x2.0 31 46 26 38 118 17.170K-20-20 34 78
17.170-24-20 42L M 52x2.0 31 55 26 48 128 17.170K-24-20 37 81
17.170-12-24 22L M 30x2.0 38 36 32 48 128 17.170K-12-24 37 81
17.170-16-24 28L M 36x2.0 38 36 32 47 127 17.170K-16-24 43 87
17.170-20-24 35L M 45x2.0 38 46 32 38 118 17.170K-20-24 44 88
17.170-24-24 42L M 52x2.0 38 55 32 41 121 17.170K-24-24 37 81
17.170-16-32 28L M 36x2.0 51 36 44 50 142 17.170K-16-32 57 102
17.170-20-32 35L M 45x2.0 51 46 44 79 171 17.170K-20-32 55 100
17.170-24-32 42L M 52x2.0 51 55 44 39 131 17.170K-24-32 46 91
17.170-20-36 35L M 45x2.0 60 46 53 58 150 17.170K-20-36 65 110
17.170-24-36 42L M 52x2.0 60 55 53 56 148 17.170K-24-36 63 108
