Pressure fittings
4SH SKIVE (540)
Application
SKIVE 4SH press holder for dH5000
4SH hoses
Material
Steel
Surface protection
Zinc-electroplated

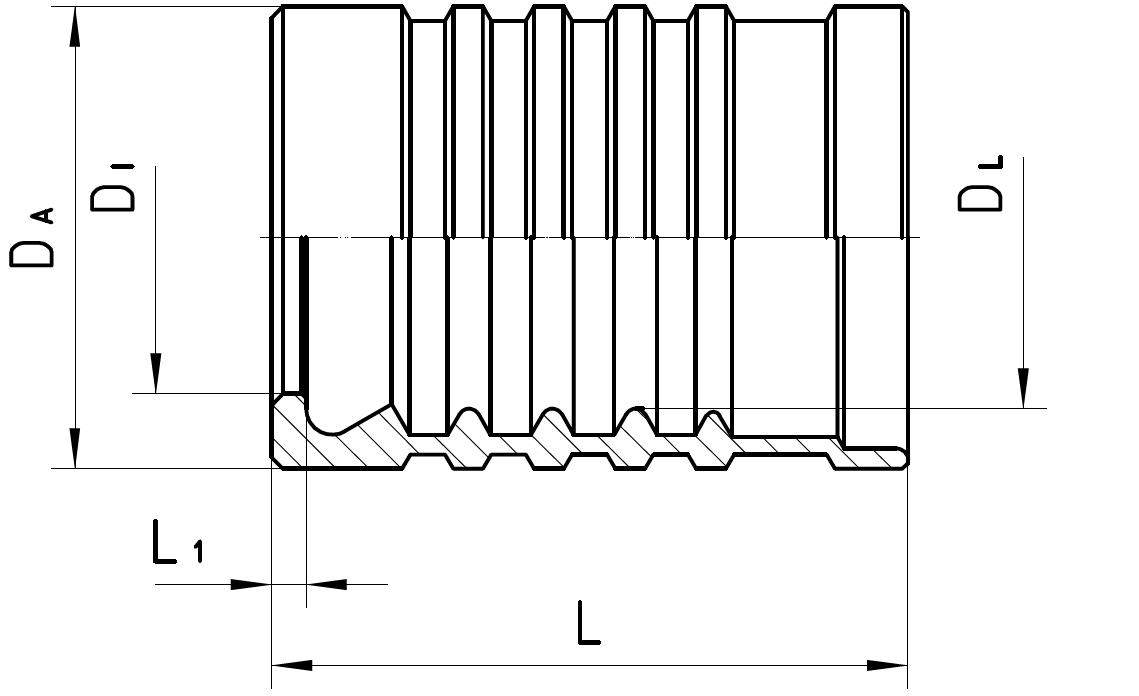

| Order no. | DN in mm | DA in mm | DI in mm | DL in mm | L in mm | L1 in mm | Note |
|---|---|---|---|---|---|---|---|
| 540-12 | 19 | 40,0 | 27,1 | 29,7 | 55,0 | 3,0 | |
| 540-16 | 25 | 48,6 | 33,5 | 36,6 | 68,5 | 3,4 | * |
| 540-20 | 31 | 57,0 | 40,0 | 45,0 | 75,1 | 3,5 | |
| 540-24 | 38 | 62,0 | 43,2 | 50,0 | 75,6 | 3,9 | |
| 540-32 | 51 | 78,2 | 57,9 | 65,9 | 75,0 | 5,0 |
Note
* The proper crimping of the fittings needs to be verfied by the hose manufacturer with appropriate tools.
