Pressure fittings

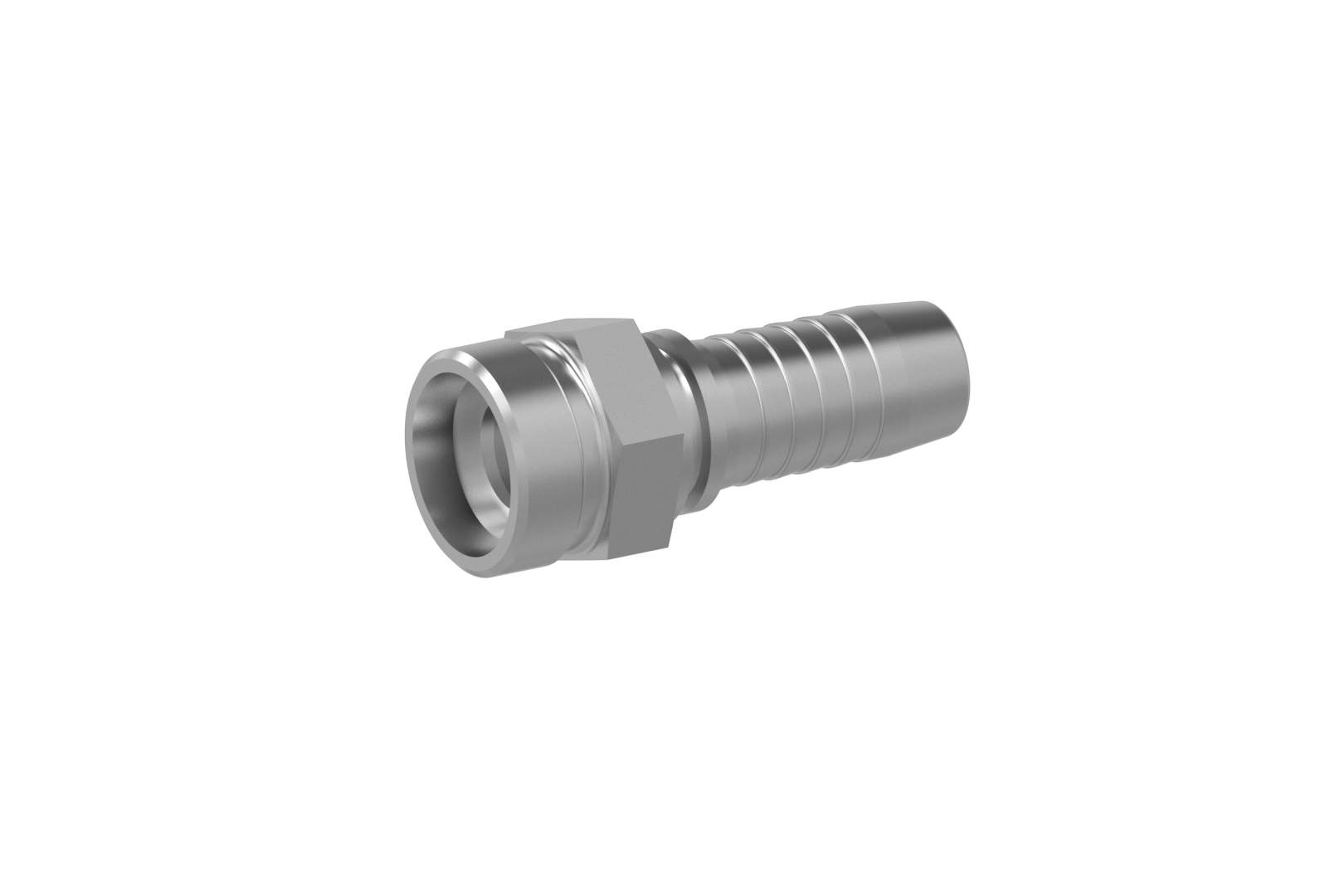

CES straight

Connection
Metric male thread 24° with inner cone, dan pipe connection S series

Standard
ISO 8434-1

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

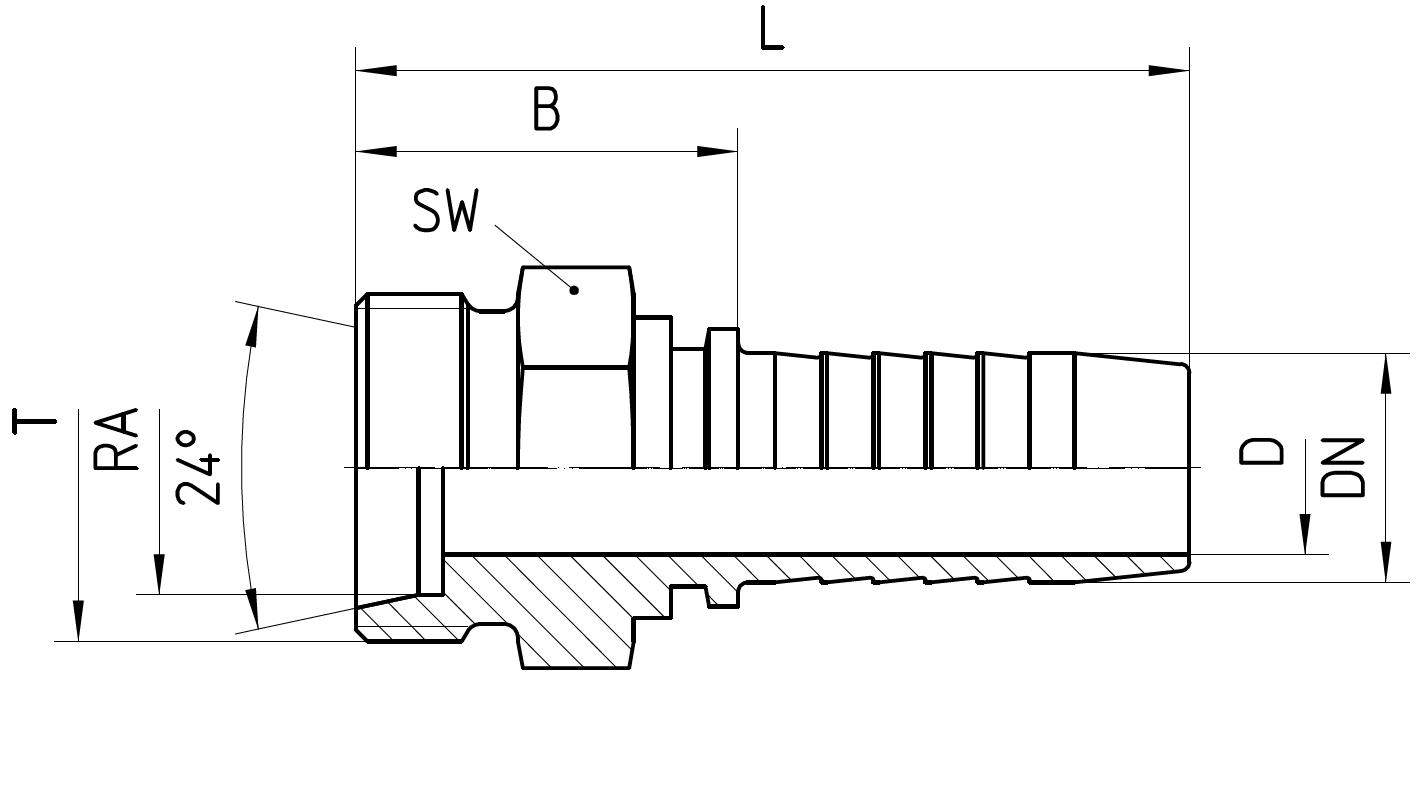

Order no. DN in mm RA T SW in mm min. D in mm B±3 in mm L±3 in mm
1.180-03-04 06 8S M 16x1.5 17 4,0 28 55
1.180-04-04 06 10S M 18x1.5 19 4,0 28 55
1.180-05-04 06 12S M 20x1.5 22 4,0 29 56
1.180-04-05 08 10S M 18x1.5 19 5,5 29 56
1.180-05-05 08 12S M 20x1.5 22 5,5 28 55
1.180-06-05 08 14S M 22x1.5 22 5,5 29 56
1.180-05-06 10 12S M 20x1.5 22 7,0 27 57
1.180-06-06 10 14S M 22x1.5 22 7,0 29 59
1.180-08-06 10 16S M 24x1.5 24 7,0 32 62
1.180-06-08 12 14S M 22x1.5 22 10,0 34 65
1.180-08-08 12 16S M 24x1.5 27 10,0 33 64
1.180-10-08 12 20S M 30x2.0 30 10,0 35 66
1.180-08-10 16 16S M 24x1.5 24 13,0 36 70
1.180-10-10 16 20S M 30x2.0 30 13,0 38 72
1.180-12-10 16 25S M 36x2.0 36 13,0 37 71
1.180-10-12 19 20S M 30x2.0 30 15,0 36 75
1.180-12-12 19 25S M 36x2.0 36 15,0 41 80
1.180-16-12 19 30S M 42x2.0 46 15,0 42 81
1.180-12-16 25 25S M 36x2.0 36 20,0 49 95
1.180-16-16 25 30S M 42x2.0 46 21,1 44 90
1.180-20-16 25 38S M 52x2.0 55 21,1 52 98
1.180-16-20 31 30S M 42x2.0 46 21,0 55 109
1.180-20-20 31 38S M 52x2.0 55 27,0 45 99
1.180-20-24 38 38S M 52x2.0 55 32,5 49 106
