Pressure fittings

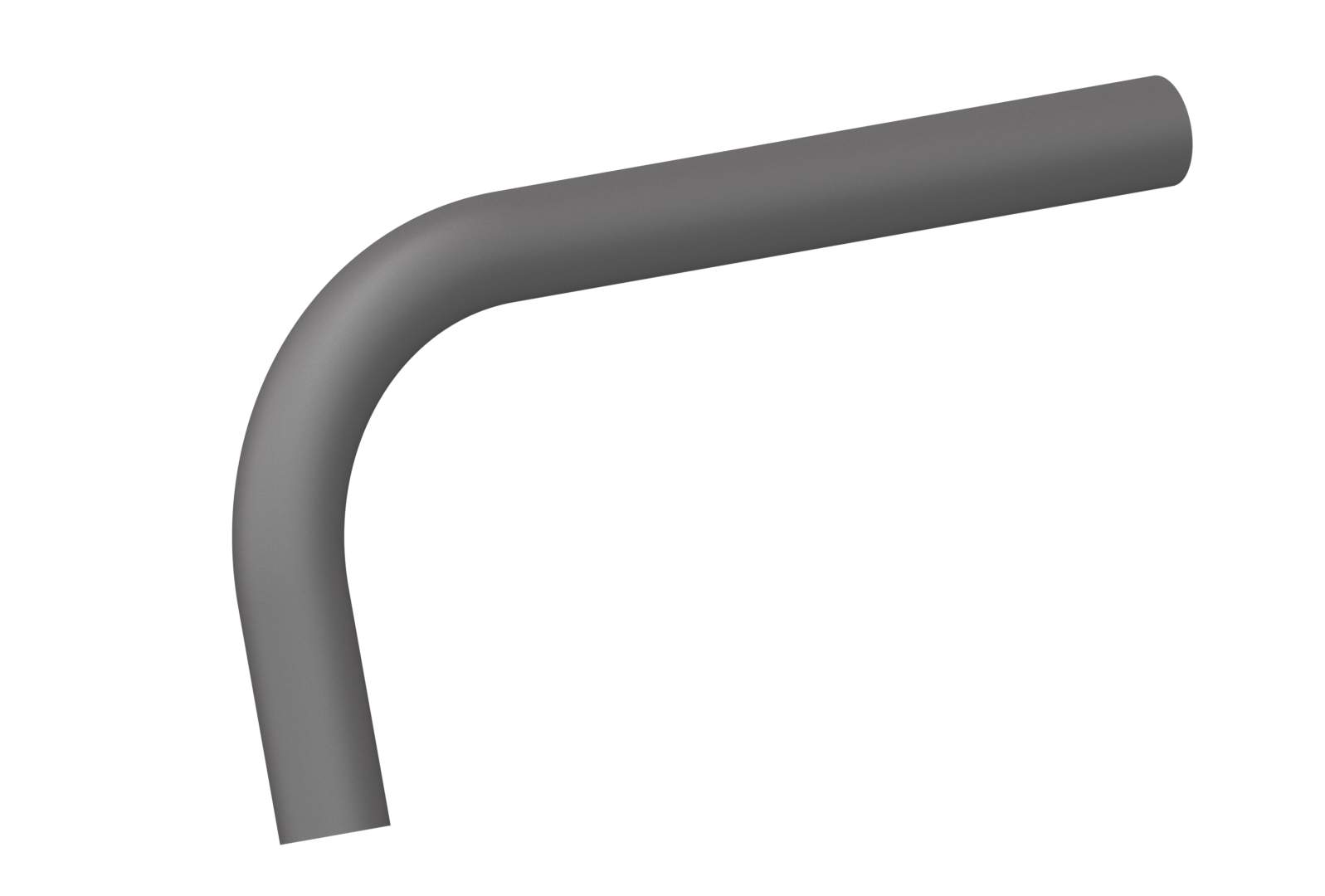

Seamless 90° pipe bends

Material
Steel

Surface protection
phospated

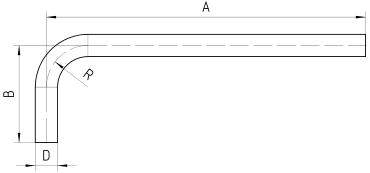

Order no. D in mm min. bending radiusR A±3 in mm B±3 in mm
90 1215 230 70 12 x 1,5 30 230 70
90 1220 230 70 12 x 2,0 30 230 70
90 1420 230 70 14 x 2,0 30 230 70
90 1515 230 70 15 x 1,5 30 230 70
90 1520 230 70 15 x 2,0 30 230 70
90 1615 230 70 16 x 1,5 30 230 70
90 1620 230 70 16 x 2,0 30 230 70
90 1815 236 72 18 x 1,5 36 236 72
90 1820 236 72 18 x 2,0 36 236 72
90 1830 236 72 18 x 3,0 36 236 72
90 2020 236 81 20 x 2,0 36 236 81
90 2025 236 81 20 x 2,5 36 236 81
90 2215 238 78 22 x 1,5 38 238 78
90 2220 238 78 22 x 2,0 38 238 78
90 2225 238 78 22 x 2,5 38 238 78
90 2235 238 78 22 x 3,5 38 238 78
90 2520 244 94 25 x 2,0 44 244 94
90 2525 244 94 25 x 2,5 44 244 94
90 2530 244 94 25 x 3,0 44 244 94
90 2540 244 94 25 x 4,0 44 244 94
90 2815 248 98 28 x 1,5 50 248 98
90 2820 248 98 28 x 2,0 50 248 98
90 2830 248 98 28 x 3,0 50 248 98
90 2835 248 98 28 x 3,5 50 248 98
90 3025 250 110 30 x 2,5 50 250 110
90 3030 250 110 30 x 3,0 50 250 110
90 3035 250 110 30 x 3,5 50 250 110
90 3040 250 110 30 x 4,0 50 250 110
90 3520 260 125 35 x 2,0 60 260 125
90 3525 260 125 35 x 2,5 60 260 125
90 3530 260 125 35 x 3,0 60 260 125
90 3540 260 125 35 x 4,0 60 260 125
90 3550 260 125 35 x 5,0 60 260 125
90 3825 265 140 38 x 2,5 65 265 140
90 3830 265 140 38 x 3,0 65 265 140
90 3840 265 140 38 x 4,0 65 265 140
90 3850 265 140 38 x 5,0 65 265 140
90 4220 280 165 42 x 2,0 80 280 165
90 4230 280 165 42 x 3,0 80 280 165
90 4250 280 165 42 x 5,0 80 280 165
90 5050 310 310 50 x 5,0 210 310 310
90 5060 310 310 50 x 6,0 210 310 310
90 6580 320 320 65 x 8,0 180 320 320

Product information last updated on 13.01.2020 11:16:19
