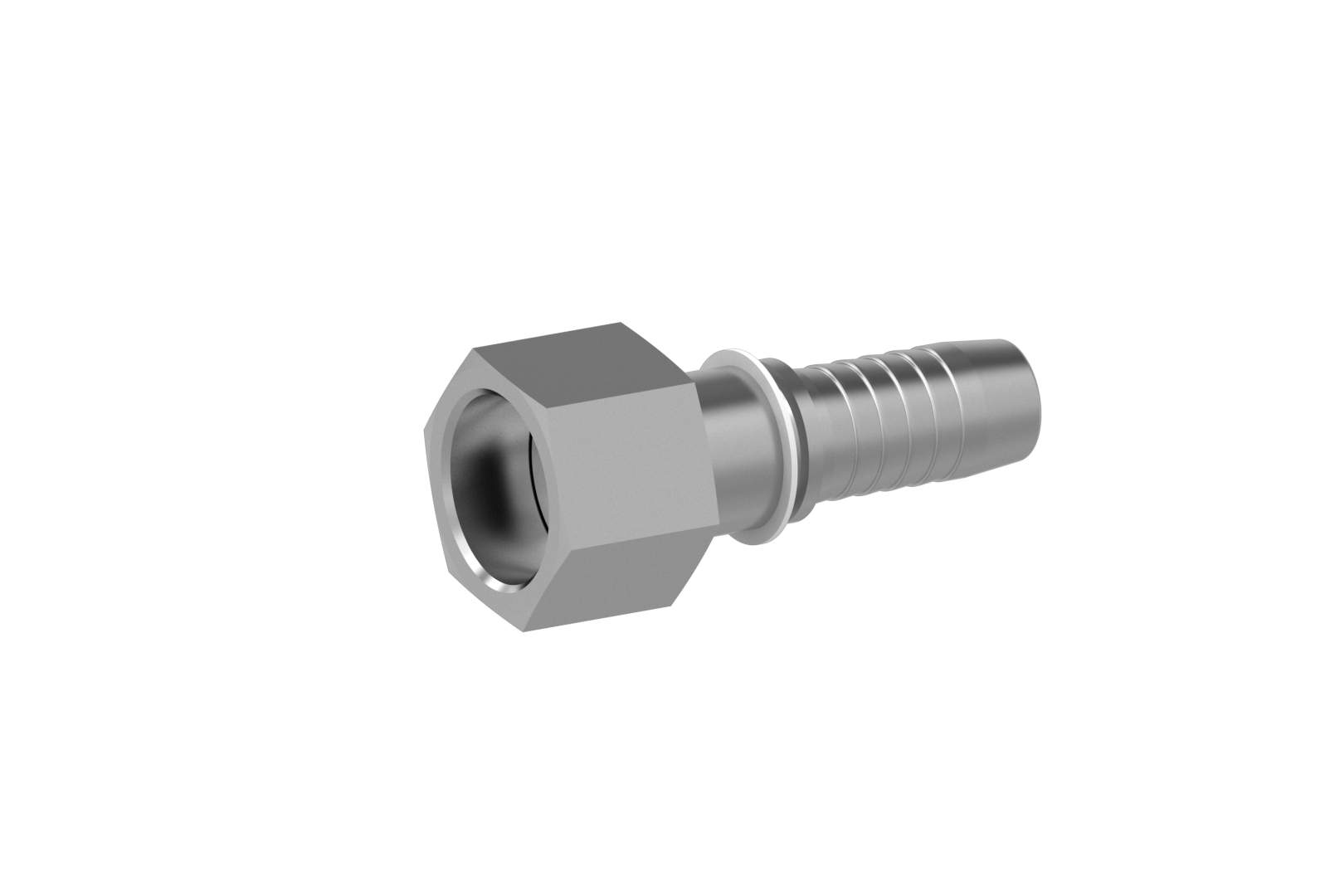

ORFS straight

Connection Flat sealing head with UN nut
Standard ISO 8434-3
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

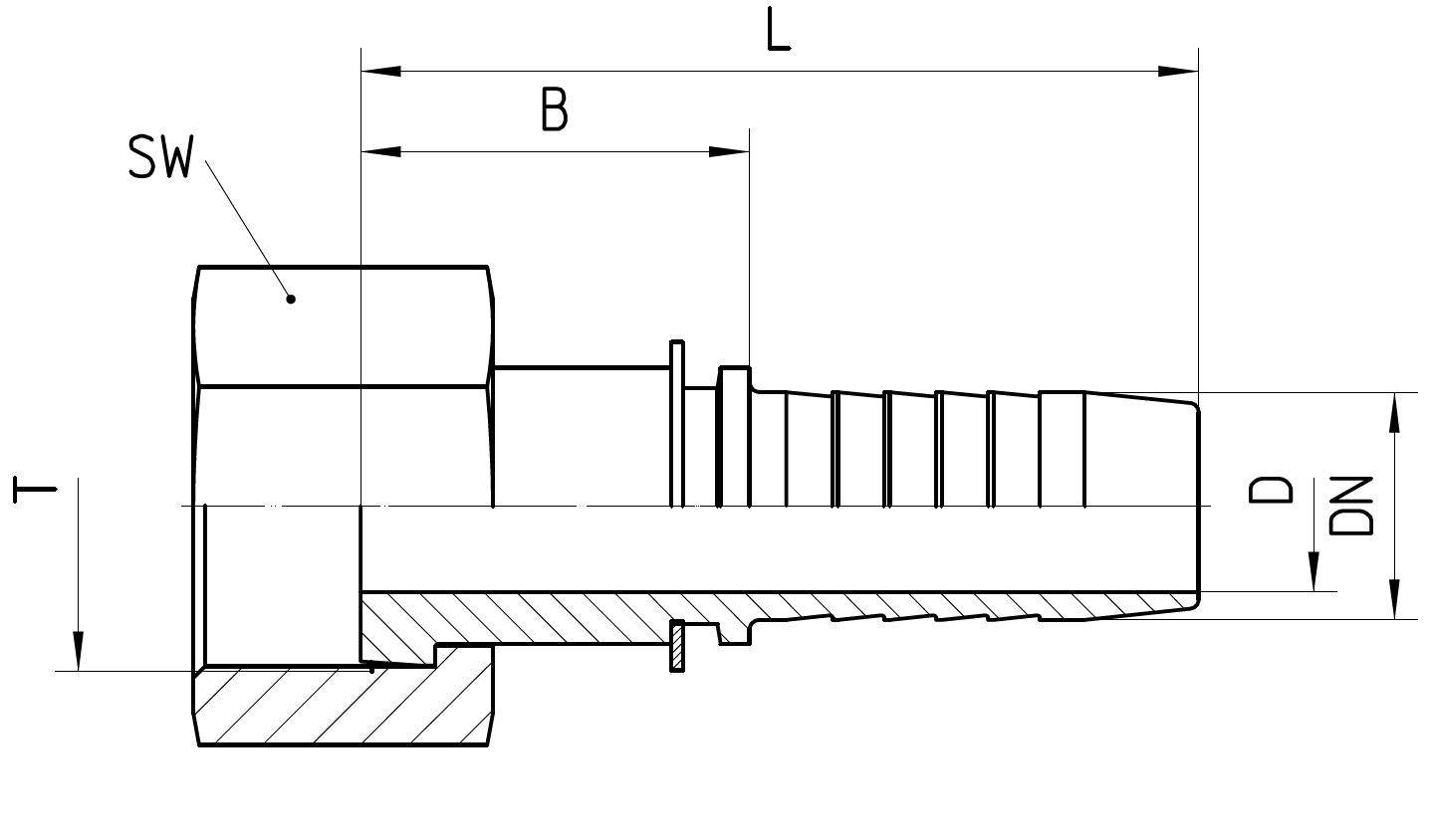

Order no. DN in mm T in UNF/UN/UNS SW in mm min. D in mm B±3 in mm L±3 in mm
1.315-04-04 06 9/16-18 UNF 17 4,0 22 49
1.315-06-04 06 11/16-16 UN 22 4,0 22 49
1.315-06-05 08 11/16-16 UN 22 5,5 22 49
1.315-04-06 10 9/16-18 UNF 17 4,0 22 51
1.315-06-06 10 11/16-16 UN 22 7,0 24 54
1.315-08-06 10 13/16-16 UN 24 7,0 22 52
1.315-06-08 12 11/16-16 UN 22 6,6 24 56
1.315-08-08 12 13/16-16 UN 24 10,0 21 52
1.315-10-08 12 1-14 UNS 30 10,0 25 56
1.315-08-10 16 13/16-16 UN 24 10,0 26 60
1.315-10-10 16 1-14 UNS 30 13,0 31 65
1.315-12-10 16 1 3/16-12 UN 36 13,0 27 61
1.315-12-12 19 1 3/16-12 UN 36 15,0 34 73
1.315-16-12 19 1 7/16-12 UN 41 15,0 30 69
1.315-16-16 25 1 7/16-12 UN 41 21,0 37 83
1.315-20-16 25 1 11/16-12 UN 50 21,0 34 80
1.315-20-20 31 1 11/16-12 UN 50 27,0 37 91
1.315-24-20 31 2-12 UN 60 27,0 38 92
1.315-24-24 38 2-12 UN 60 32,0 39 96

Product information last updated on 24.05.2022 14:32:49
