Adapters

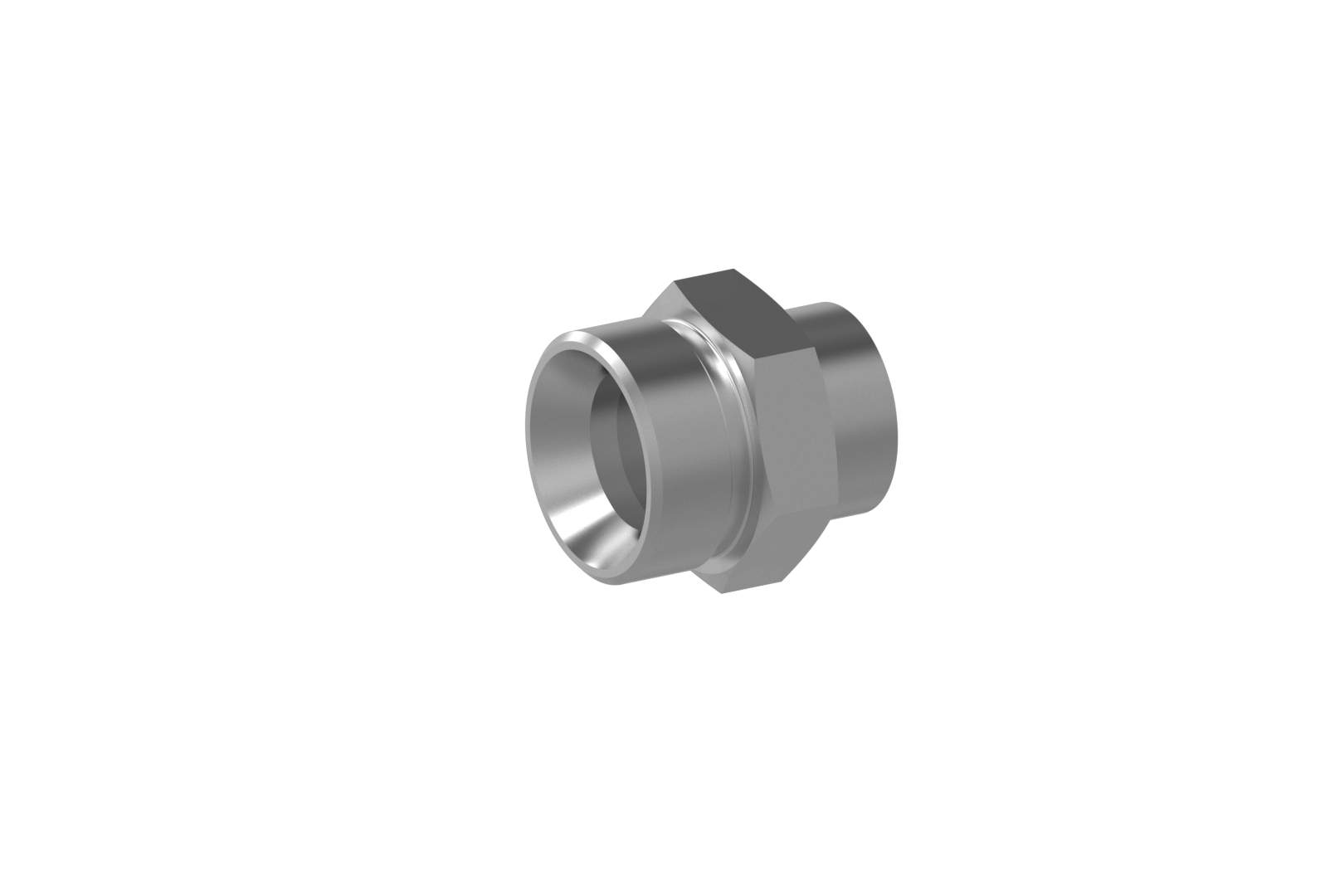

Weld-on branch

Connection
metric external thread with 60° internal cone LL series for weld-on

Standard
DIN 7631

Material
Steel

Surface protection
Zinc-electroplated

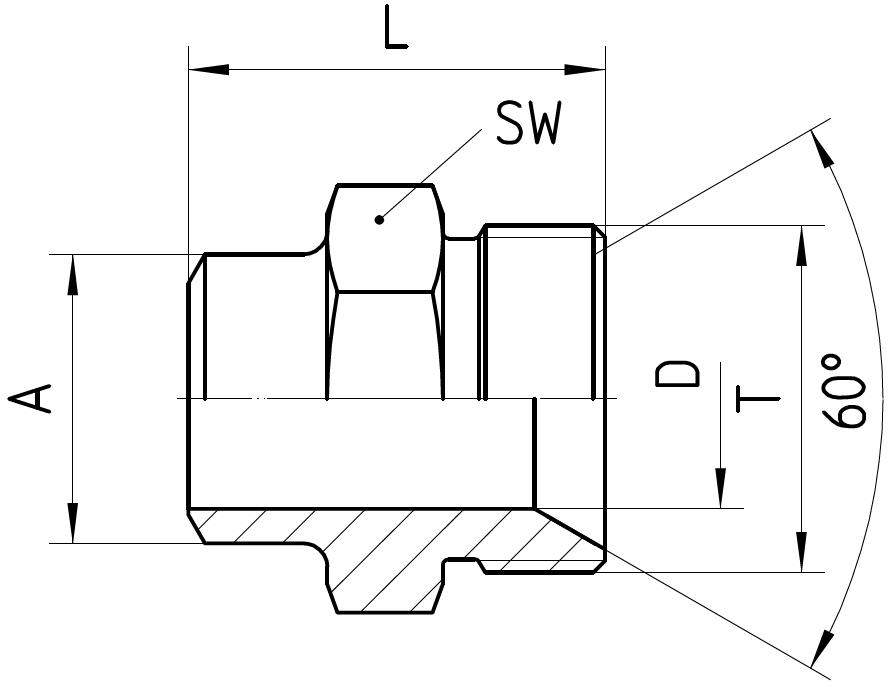

Order no. DN in mmm T1 SW in mm A in mm D in mm L ±3 in mm
AS M 30x1.5 20 M 30x1.5 32 25,0 19 36
AS M 38x1.5 25 M 38x1.5 41 32,0 25 38
AS M 45x1.5 32 M 45x1.5 46 38,0 31 42
AS M 52x1.5 38 M 52x1.5 55 46,0 38 44
AS M 65x2 51 M 65x2.0 65 61,0 50 46
AS M 78x2 60 M 78x2.0 80 76.5 60 47

Product information last updated on 23.11.2018 09:28:50
