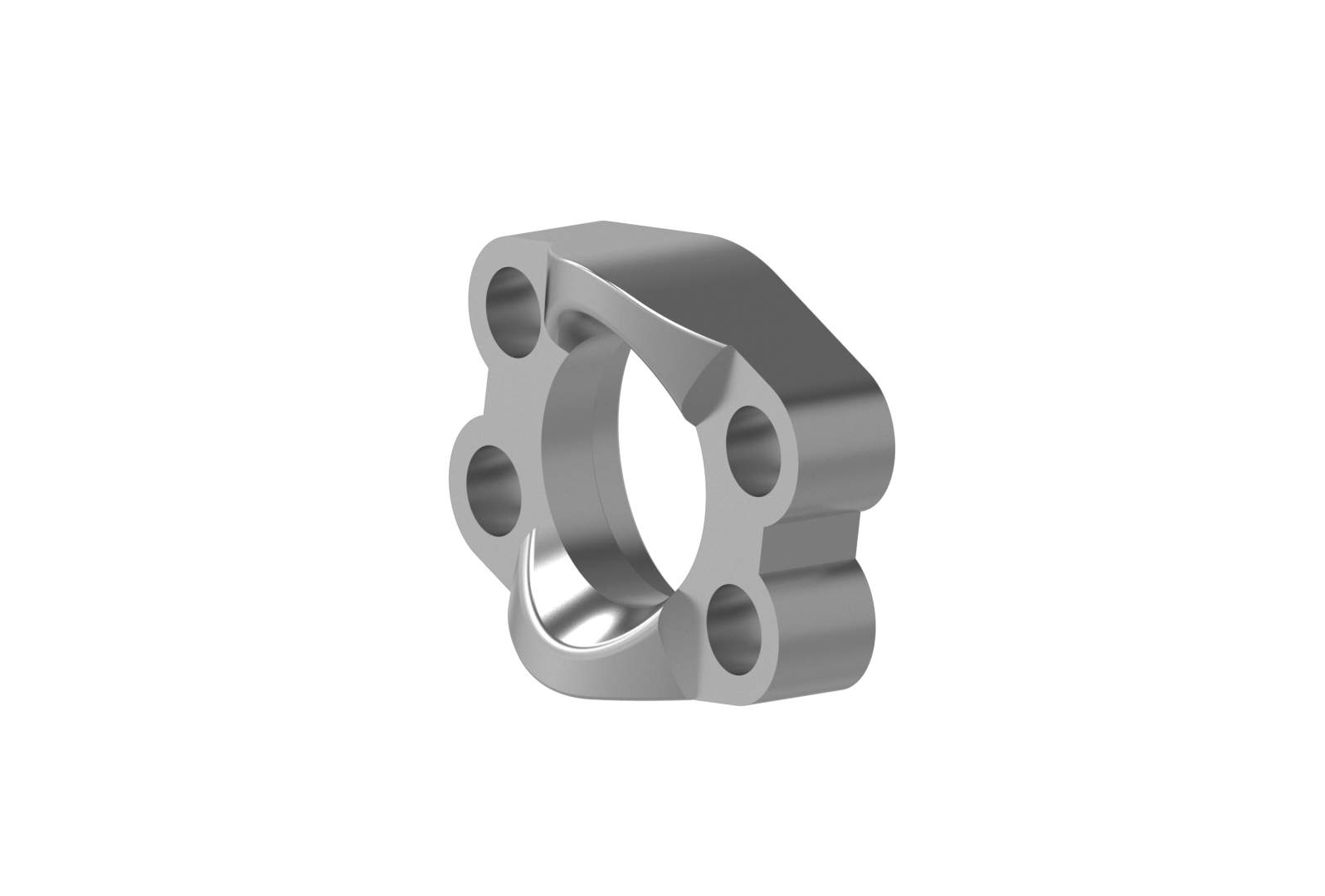

Material | Steel |
Surface protection | Zinc-electroplated |

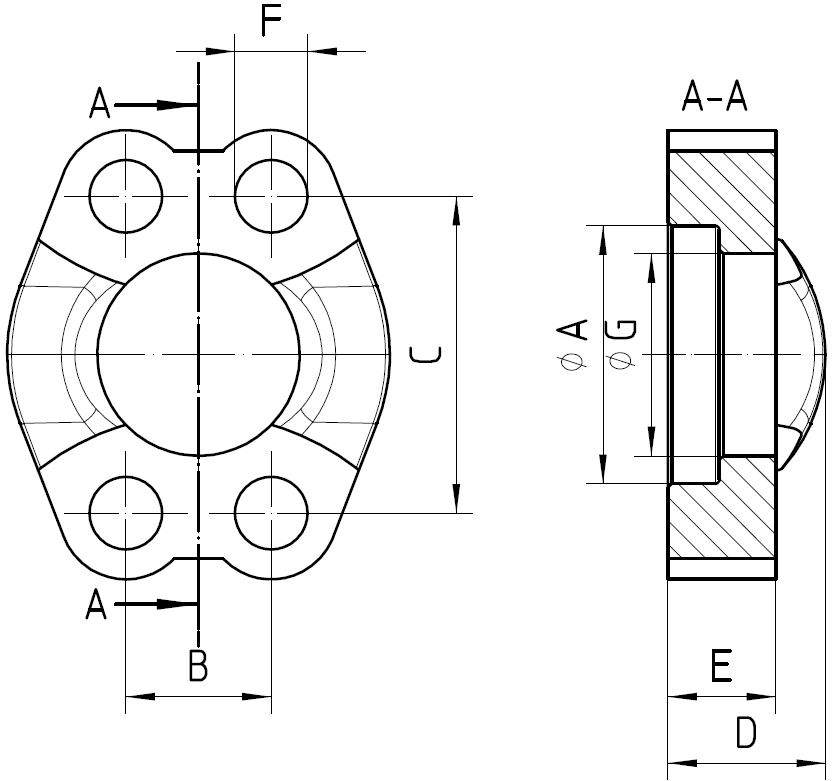

Order no. | old Order no. | SAE-size in inch | A in mm | G in mm | B in mm | C in mm | D in mm | E in mm | F in mm | for bolt UNC |
---|---|---|---|---|---|---|---|---|---|---|
491-001 | 491- 8 | 1/2 | 32,5 | 24,6 | 18,2 | 40,5 | 22 | 16 | 8,8 | M 8x30 |
491-004 | 491-12 | 3/4 | 42,1 | 32,5 | 23,8 | 50,8 | 28 | 19 | 11,0 | M 10x35 |
491-006 | 491-16 | 1 | 48,4 | 38,9 | 27,8 | 57,2 | 33 | 24 | 13,0 | M 12x45 |
491-008 | 491-16-I | 1 | 48,4 | 38,9 | 27,8 | 57,2 | 33 | 24 | 12,0 | (7/16 - 1 3/4) |
491-009 | 491-20 | 1 1/4 | 54,8 | 44,5 | 31,8 | 66,7 | 38 | 27 | 15,0 | M 14x50 |
491-011 | 491-24 | 1 1/2 | 64,3 | 51,6 | 36,5 | 79,4 | 43 | 30 | 17,0 | M 16x55 |
491-013 | 491-32 | 2 | 80,2 | 67,6 | 44,5 | 96,8 | 52 | 37 | 21,0 | M 20x65 |
