Suction and low-pressure fittings

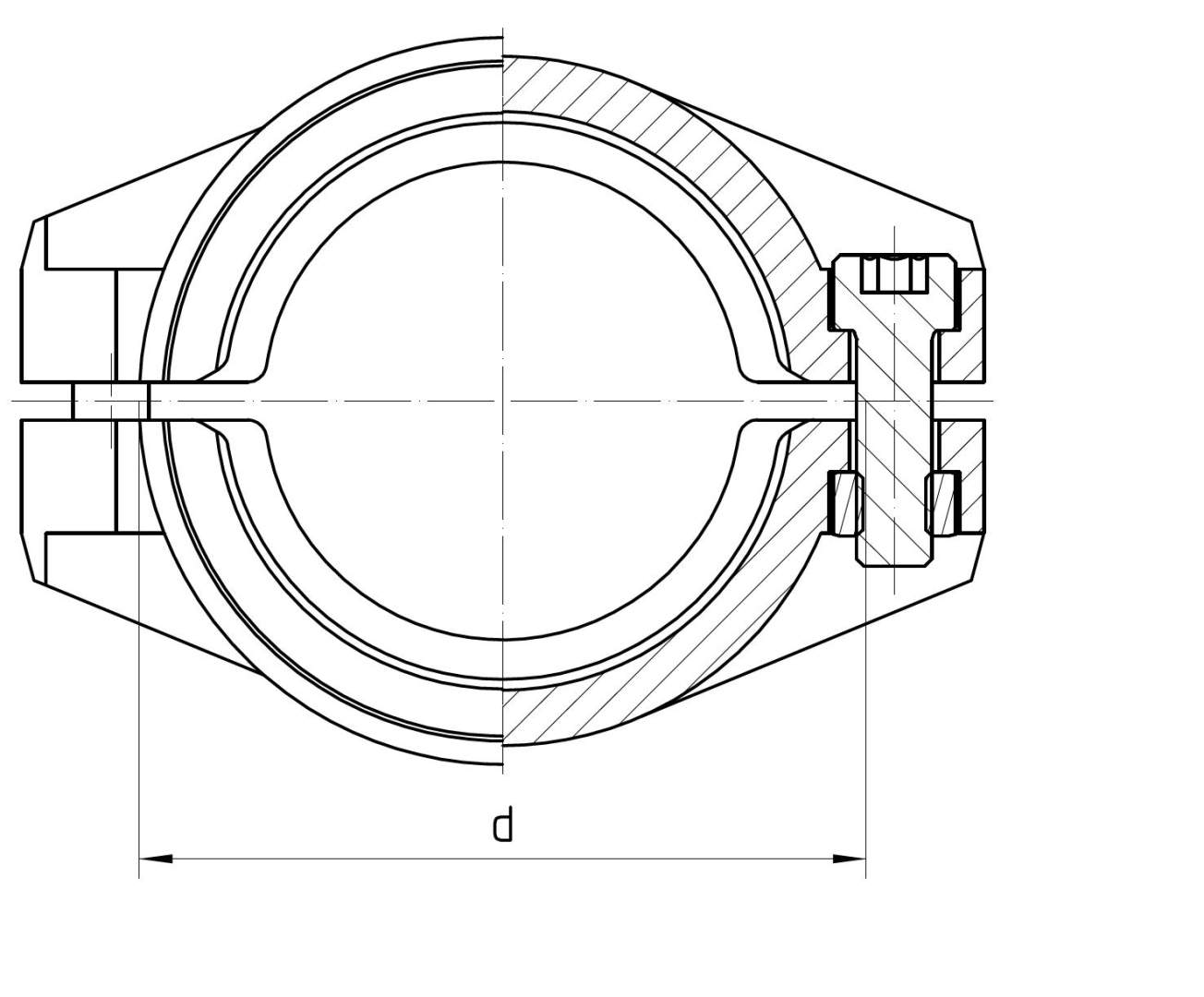

Clamp mouting 113

Application
fitting type dh1000 fittings up to DN31, fitting type dh13 for DN38 an bigger (on request)
14A / KARA25 hoses

Material
Aluminium / brass

Order no. Order no. old DN in mm clamp range d in mm
113-001 113-022024-Al 13 22 - 24
113-002 113-024026-MS 13 24 - 26
113-003 113-026028-MS 13 26 - 28
113-004 113-030033-Al 19 30 - 33
113-005 113-032034-MS 19 32 - 34
113-006 113-034036AL 19 34 - 36
113-007 113-036039-AL 25 36 - 39
113-008 113-037039-MS 25 37 - 39
113-009 113-039041-MS 25 39 - 41
113-010 113-040043-Al 25 40 - 43
113-011 113-041043-MS 25 41 - 43
113-012 113-043046-Al 31 43 - 46
113-013 113-047050-Al 31 47 - 50
113-014 113-050052-Al 38 50 - 52
113-016 113-053056-Al 38 53 - 56
113-017 113-057060-Al 38 57 - 60
113-018 113-058061-Al 40 58 - 61
113-019 113-064067-Al 52 64 - 67
113-020 113-067069-MS 52 67 - 69
113-021 113-069071-Al 52 69 - 71
113-022 113-073076-MS 52 73 - 76
113-023 113-078082-Al 65 78 - 82
113-024 113-084087-Al 65 84 - 87
113-025 113-088091-MS 65 88 - 91
113-026 113-089093-Al 75 89 - 93
113-027 113-094097-Al 75 94 - 97
113-029 113-098101-Al 75 98 - 101
113-030 113-099102-Al 80 99 - 102
113-031 113-114119-Al 102 114 - 119
113-032 113-118122-Al 102 118 - 122
113-033 113-122126-Al 102 122 - 126
113-034 113-126130-Al 102 126 - 130
113-035 113-130134-Al 102 130 - 134
113-036 113-143148-Al 125 143 - 148
113-037 113-149154-Al 125 149 - 154
113-038 113-153158-Al 125 153 - 158
113-039 113-168174-Al 152 168 - 174
113-040 113-174180-Al 152 174 - 180
113-041 113-178184-Al 152 178 - 184
113-042 113-222229-Al 200 222 - 229
113-043 113-230239-Al 200 230 - 239

Product information last updated on 16.08.2019 14:17:39


Request this product
Are you interested in this product? Our contact partners are happy to answer any questions you may have about our products.

Individual customisations?
Do you require special sizes, different angles or complete customisation? We provide solutions tailored to your specific requirements.

24 hours Immediate service

Order today by 4 pm. If stock is available, dispatch will be on the same day.
