Suction and low-pressure fittings

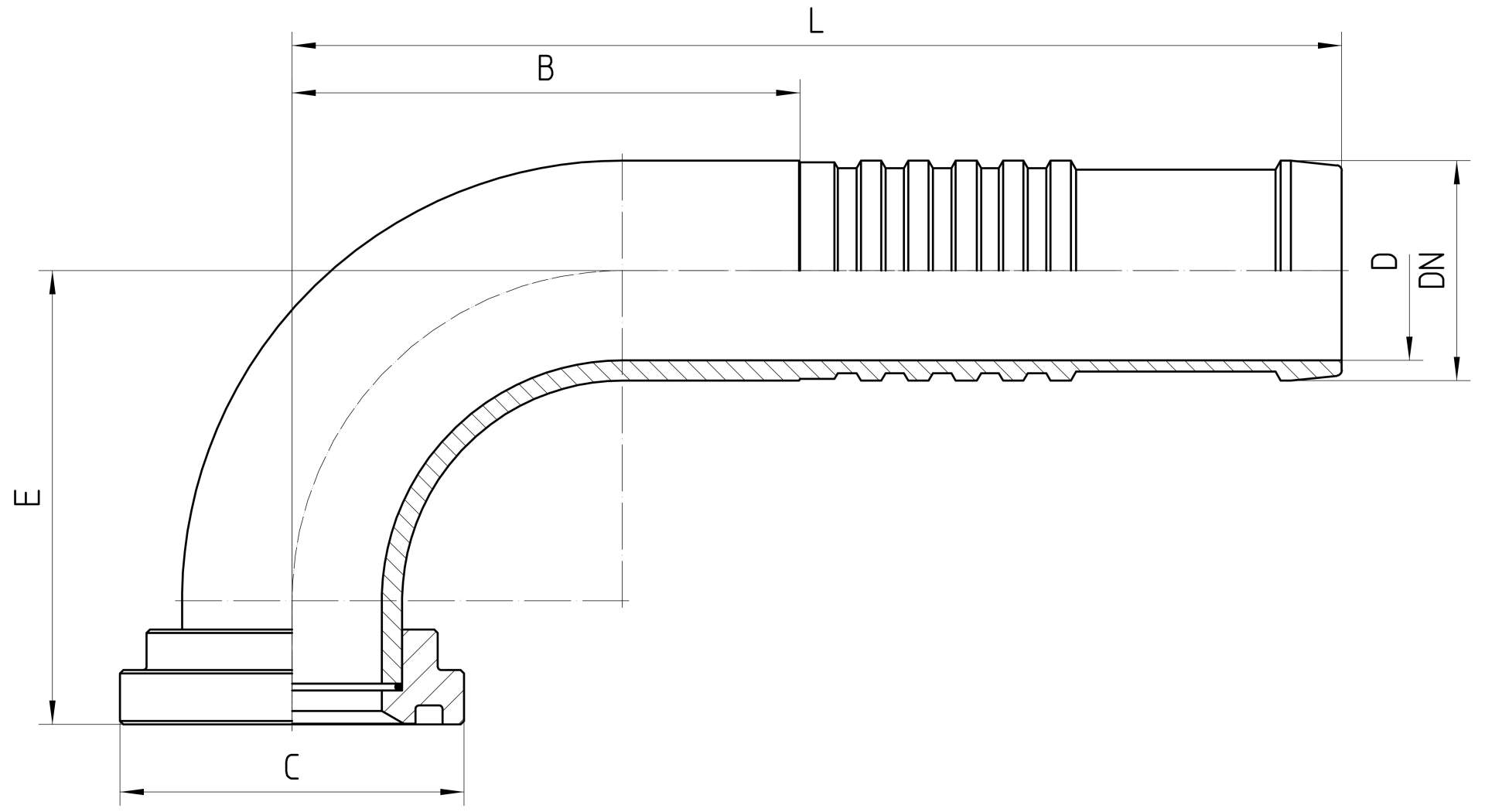

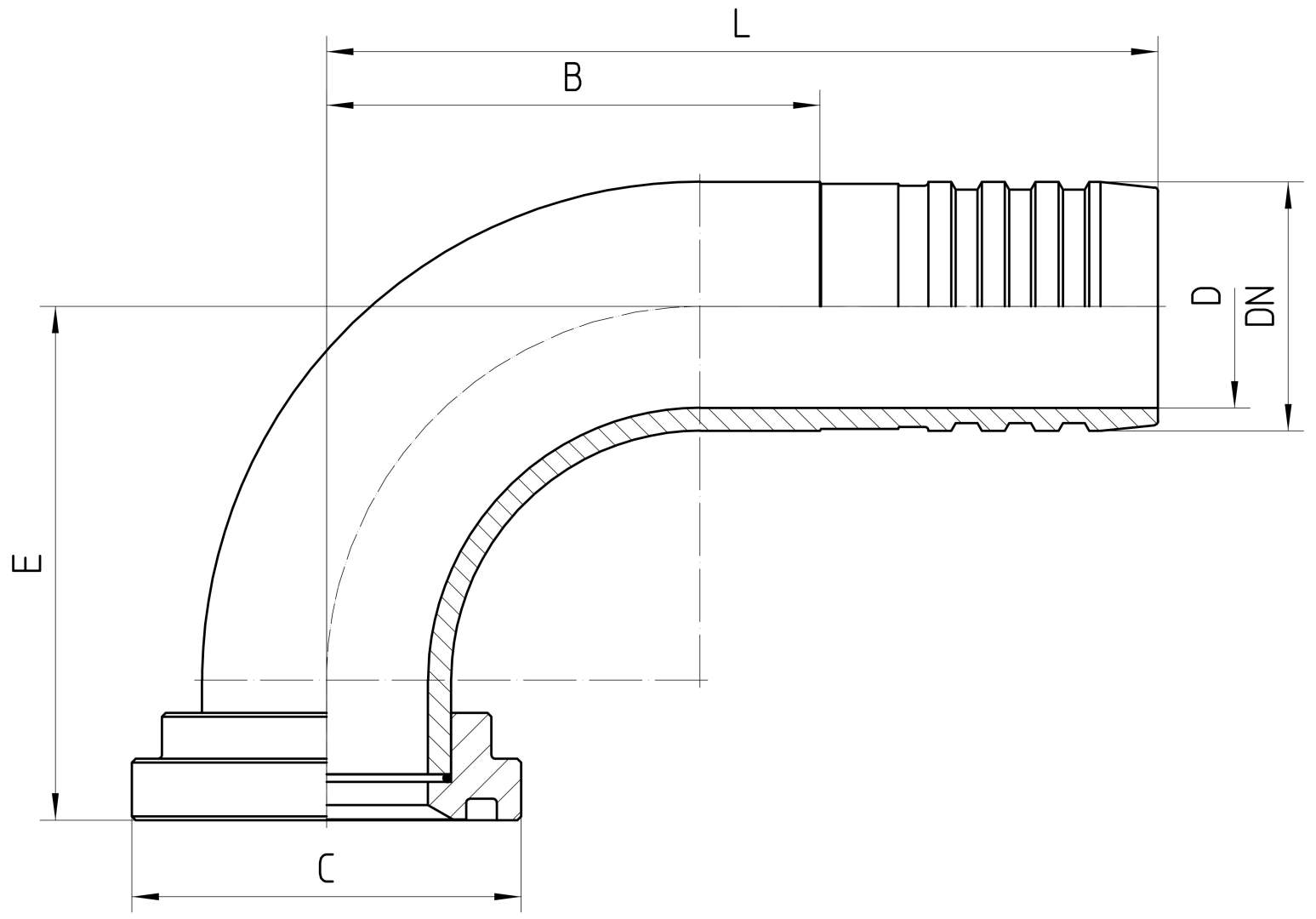

SFL 90°

Connection
SAE flange 3000PSI (L series)

Standard
ISO 6162-1

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

Order no. DN in mm flange in inch C in mm D in mm E±3 in mm B±3 in mm L±3 in mm Order-No. B±3 in mm L±3 in mm
17.470-08-12 19 1/2 30,2 14 57 47 127 17.470K-08-12 50 94
17.470-12-12 19 3/4 38,1 14 57 47 127 17.470K-12-12 50 94
17.470-16-12 19 1 44,4 14 57 47 127 17.470K-16-12 50 94
17.470-20-12 19 1 1/4 50,8 14 57 47 127 17.470K-20-12 50 94
17.470-12-16 25 3/4 38,1 19 63 59 139 17.470K-12-16 56 100
17.470-16-16 25 1 44,4 19 57 59 139 17.470K-16-16 56 100
17.470-20-16 25 1 1/4 50,8 19 54 59 139 17.470K-20-16 56 100
17.470-24-16 25 1 1/2 60,3 19 58 59 139 17.470K-24-16 56 100
17.470-12-20 31 3/4 38,1 26 90 75 155 17.470K-12-20 62 106
17.470-16-20 31 1 44,4 26 72 75 155 17.470K-16-20 62 106
17.470-20-20 31 1 1/4 50,8 26 67 75 155 17.470K-20-20 62 106
17.470-24-20 31 1 1/2 60,3 26 68 75 155 17.470K-24-20 62 106
17.470-32-20 31 2 71,4 26 96 75 155 17.470K-32-20 62 106
17.470-16-24 38 1 44,4 32 87 90 170 17.470K-16-24 71 115
17.470-20-24 38 1 1/4 50,8 32 87 90 170 17.470K-20-24 71 115
17.470-24-24 38 1 1/2 60,3 32 78 90 170 17.470K-24-24 71 115
17.470-32-24 38 2 71,4 32 95 90 170 17.470K-32-24 71 115
17.470-40-24 38 2 1/2 84,1 32 118 90 170 17.470K-40-24 71 115
17.470-20-32 51 1 1/4 50,8 44 117 128 220 17.470K-20-32 121 166
17.470-24-32 51 1 1/2 60,3 44 117 128 220 17.470K-24-32 121 166
17.470-32-32 51 2 71,4 44 117 128 220 17.470K-32-32 121 166
17.470-40-32 51 2 1/2 84,1 44 108 128 220 17.470K-40-32 121 166
17.470-48-32 51 3 101,6 44 110 128 220 17.470K-48-32 121 166
17.470-24-36 60 1 1/2 60,3 53 127 89 181 17.470K-24-36 96 141
17.470-32-36 60 2 71,4 53 108 89 181 17.470K-32-36 96 141
17.470-40-36 60 2 1/2 84,1 53 110 89 181 17.470K-40-36 96 141
17.470-48-36 60 3 101,6 53 120 89 181 17.470K-48-36 96 141
17.470-56-36 60 3 1/2 114,3 53 145 89 181 17.470K-56-36 96 141
17.470-32-48 76 2 71,4 69 160 123 215 17.470K-32-48 130 175
17.470-40-48 76 2 1/2 84,1 69 130 123 215 17.470K-40-48 130 175
17.470-48-48 76 3 101,6 69 130 123 215 17.470K-48-48 130 175
17.470-56-48 76 3 1/2 114,3 69 160 162 254 17.470K-56-48 149 194
17.470-64-48 76 4 127,0 69 160 163 255 17.470K-64-48 150 195
17.470-40-56 90 2 1/2 84,1 82 175 142 234 17.470K-40-56 149 194
17.470-48-56 90 3 101,6 82 165 142 234 17.470K-48-56 149 194
17.470-56-56 90 3 1/2 114,3 82 136 142 234 17.470K-56-56 149 194
17.470-64-56 90 4 127,0 82 160 142 234 17.470K-64-56 149 194
17.470-80-56 90 5 152,4 82 204 142 234 17.470K-80-56 149 194
17.470-48-64 102 3 101,6 94 200 161 253 17.470K-48-64 165 213
17.470-56-64 102 3 1/2 114,3 94 186 161 253 17.470K-56-64 165 213
17.470-64-64 102 4 127,0 94 160 161 253 17.470K-64-64 165 213
17.470-80-64 102 5 152,4 94 204 161 253 17.470K-80-64 165 213
17.470-56-96 152 3 1/2 114,3 142 265 222 350 17.470K-56-96 230 310
17.470-64-96 152 4 127,0 142 200 316 444 17.470K-64-96 230 310
17.470-80-96 152 5 152,4 142 243 222 350 17.470K-80-96 230 310
