Pressure fittings

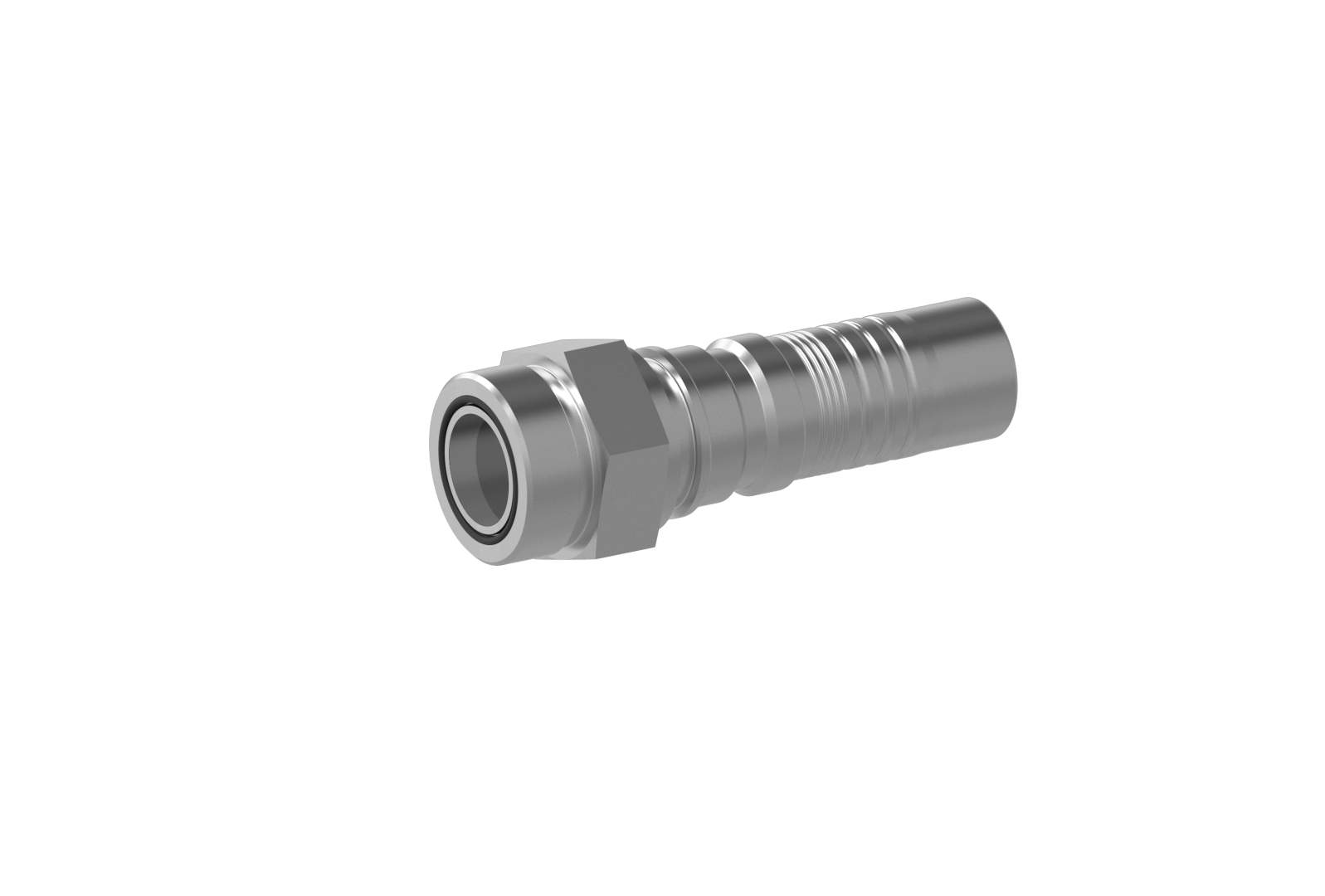

ORS straight

Connection
Frontal UN male thread O-ring sealing

Standard
ISO 8434-3

Application
4SH / R15 / R13 (DN51) flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

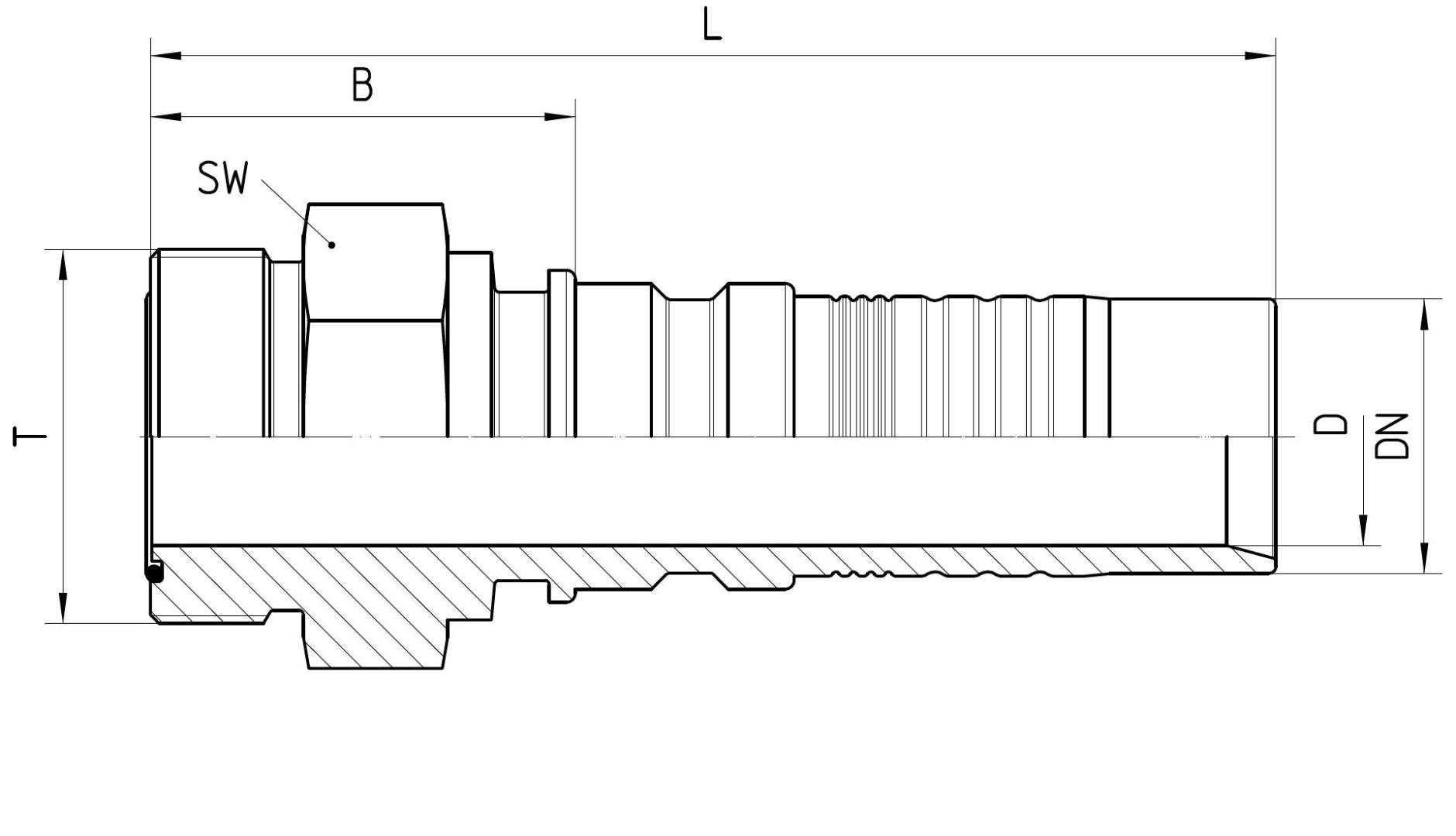

Order no. DN in mm T in UN SW in mm min. D in mm B±3 in mm L±3 in mm
7.380-12-12 19 1.3/16-12 UN 32 15,0 38 94
7.380-16-16 25 1.7/16-12 UN 41 20,0 45 112
7.380-20-20 31 1.11/16-12 UN 46 25,0 49 129
7.380-24-24 38 2-12 UN 55 30,0 49 140

Product information last updated on 20.06.2018 12:01:48
