Pressure fittings

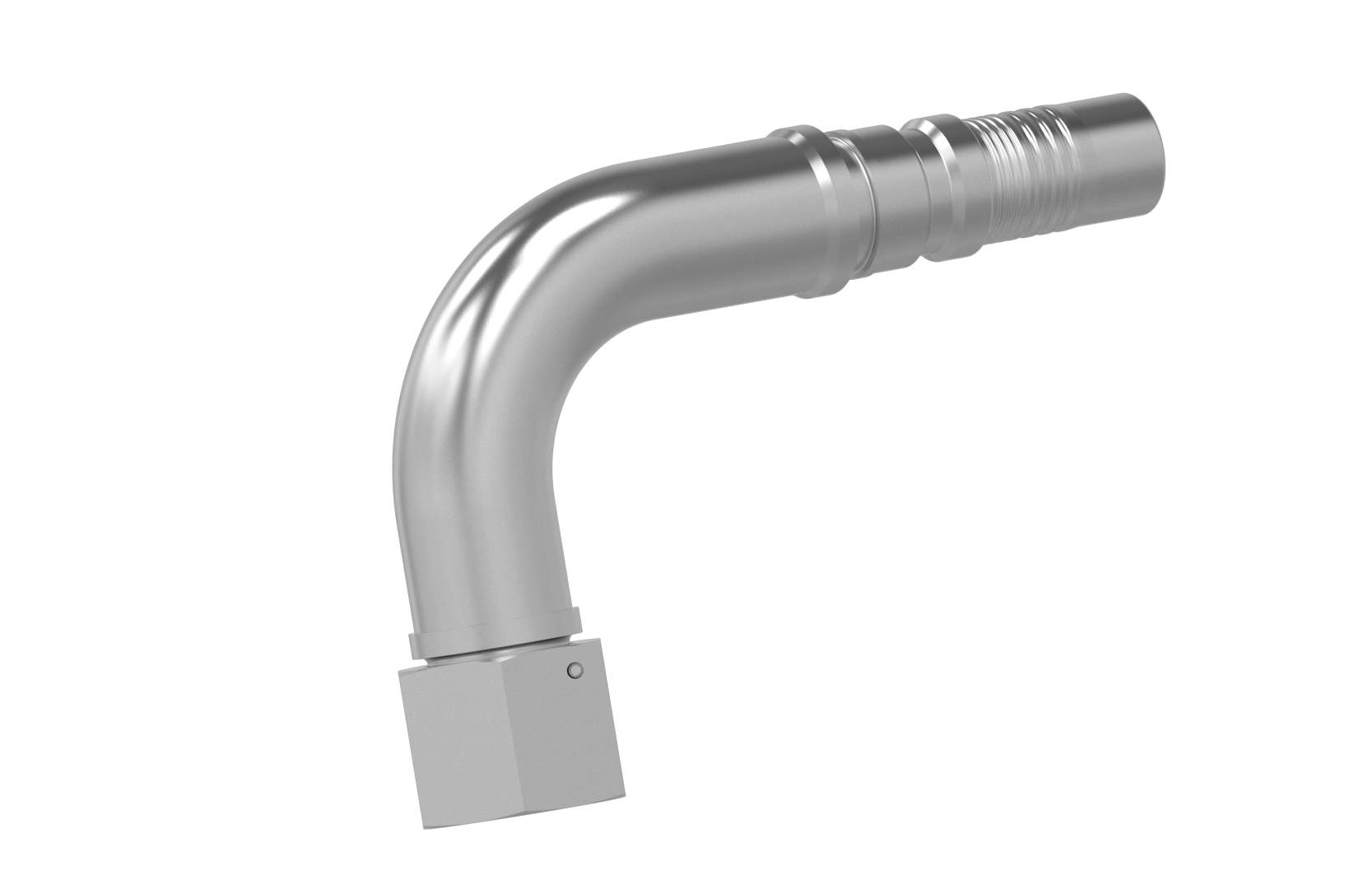

DKOR 90°

Connection
Sealing head 60° outside cone O-ring sealing with BSPP nut (G)

Standard
ISO 8434-6

Application
4SH / R15 / R13 (DN51) flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

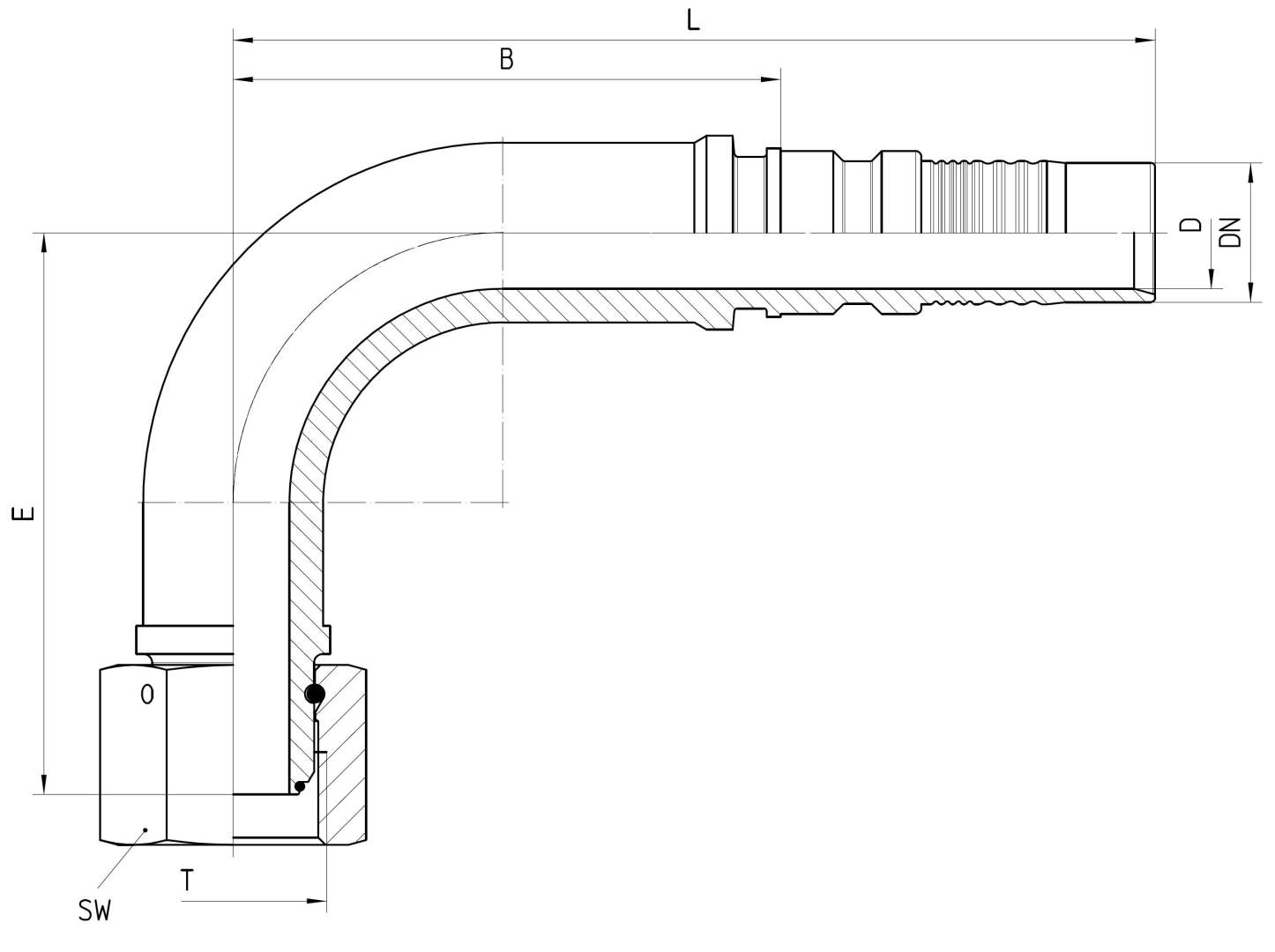

Order no. DN in mm T in inch SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
7.243-12-12/O 19 G 3/4 32 15,0 75 65 121
7.243-16-16/O 25 G 1 41 20,0 100 93 160
7.243-20-20/O 31 G 1 1/4 50 25,0 109 117 197
7.243-24-24/O 38 G 1 1/2 55 30,0 132 131 222
7.243-32-32/O 51 G 2 70 40,0 150 139 230

Product information last updated on 20.06.2018 12:01:48
