Suction and low-pressure fittings

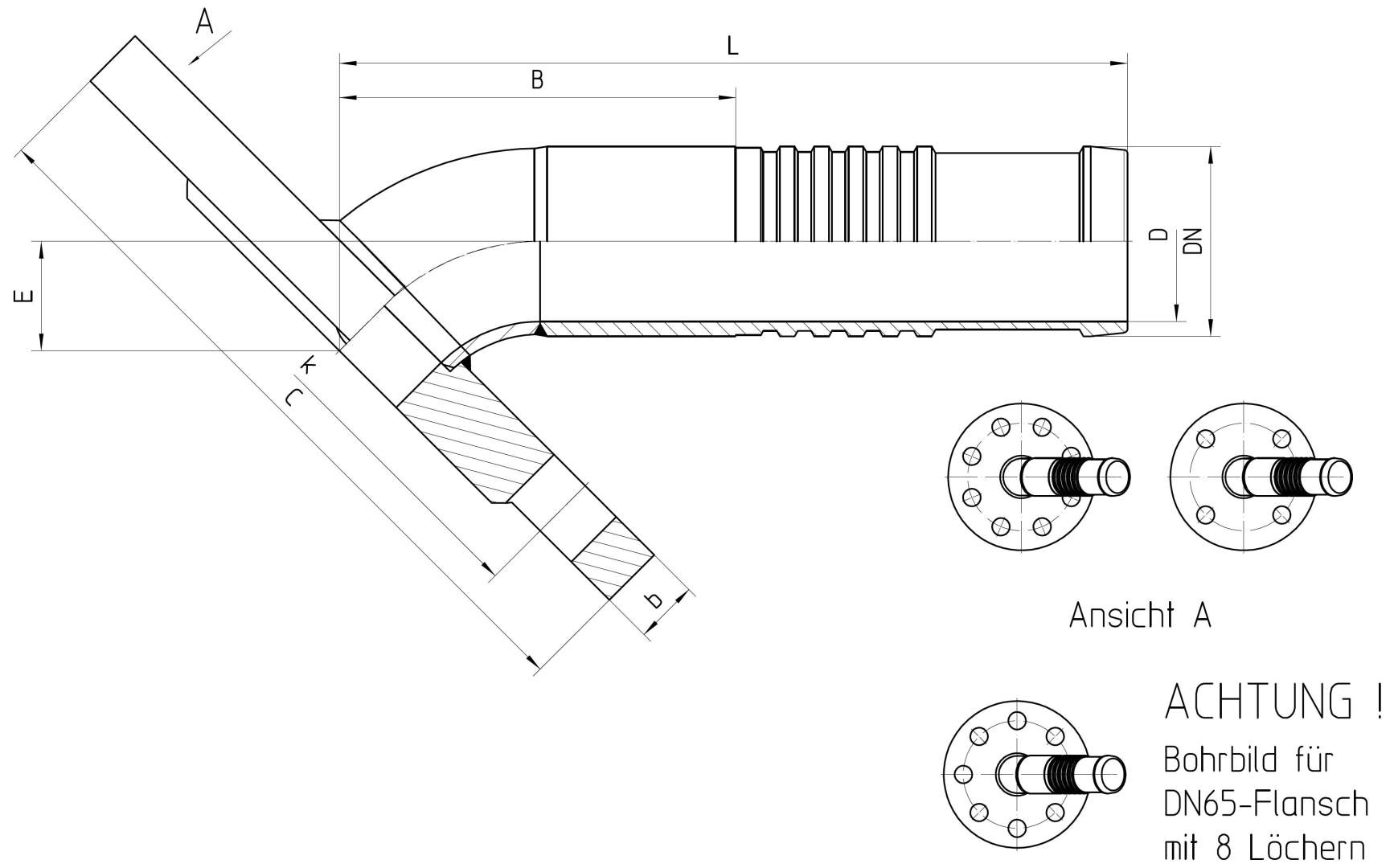

fixed DIN flange 45°

Connection
DIN flange fixed

Standard
DIN 2633/2527 (new: EN1092-1, Typ 11 PN16 and Typ 05 PN16)

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

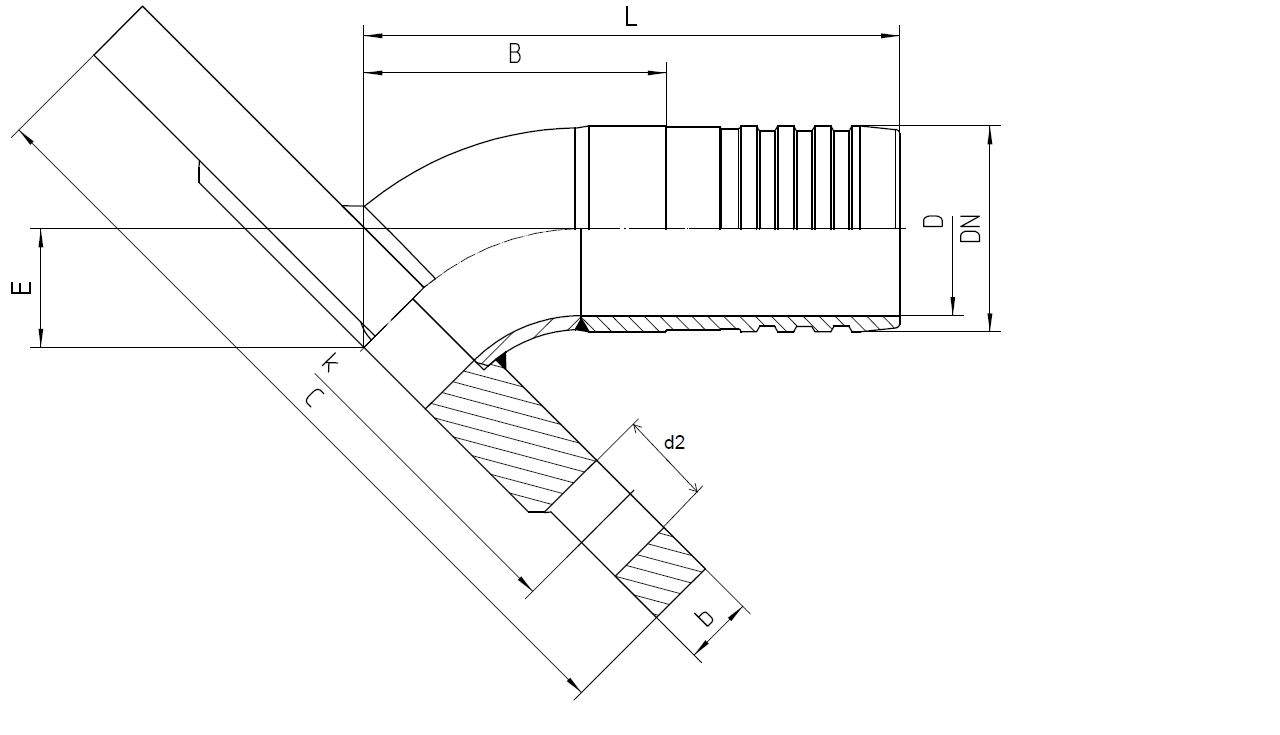

Order no. DN in mm DN DIN-Flange C in mm b in mm k in mm number of screws screws T d in mm D in mm E±3 mm B±3 mm L±3 mm Order No. B±3 mm L±3 mm
17.425-12-12 19 20 105 16 (18) 75 4 M12 14 14 20 (21) 112 (113) 192 (193) 17.425K-12-12 108 (109) 152 (153)
17.425-16-12 19 25 115 16 (18) 85 4 M12 14 14 20 (21) 112 (113) 192 (193) 17.425K-16-12 108 (109) 152 (153)
17.425-12-16 25 20 105 16 (18) 75 4 M12 14 19 22 (23) 122 (123) 202 (203) 17.425K-12-16 118 (119) 162 (163)
17.425-16-16 25 25 115 16 (18) 85 4 M12 14 19 22 (23) 122 (123) 202 (203) 17.425K-16-16 118 (119) 162 (163)
17.425-20-16 25 32 140 16 (18) 100 4 M16 18 19 22 (23) 132 (133) 212 (213) 17.425K-20-16 128 (129) 172 (173)
17.425-12-20 31 20 105 16 (18) 75 4 M12 14 26 22 (23) 76 (77) 156 (157) 17.425K-12-20 72 (73) 116 (117)
17.425-16-20 31 25 115 16 (18) 85 4 M12 14 26 22 (23) 76 (77) 156 (157) 17.425K-16-20 72 (73) 116 (117)
17.425-20-20 31 32 140 16 (18) 100 4 M16 18 26 22 (23) 86 (87) 166 (167) 17.425K-20-20 82 (83) 126 (127)
17.425-24-20 31 40 150 16 (18) 110 4 M16 18 26 27 (28) 87 (88) 167 (168) 17.425K-24-20 83 (84) 127 (128)
17.425-12-24 38 20 105 16 (18) 75 4 M12 14 32 22 (23) 74 (75) 154 (155) 17.425K-12-24 70 (71) 114 (115)
17.425-16-24 38 25 115 16 (18) 85 4 M12 14 32 22 (23) 74 (75) 154 (155) 17.425K-16-24 70 (71) 114 (115)
17.425-20-24 38 32 140 16 (18) 100 4 M16 18 32 22 (23) 86 (87) 166 (167) 17.425K-20-24 81 (83) 126 (127)
17.425-24-24 38 40 150 16 (18) 110 4 M16 18 32 22 (23) 83 (84) 163 (164) 17.425K-24-24 83 (84) 127 (128)
17.425-32-24 38 50 165 18 125 4 M16 18 32 34 103 183 17.425K-32-24 99 143
17.425-16-32 51 25 115 16 (18) 85 4 M12 14 44 22 (23) 74 (75) 166 (167) 17.425K-16-32 81 (82) 126 (127)
17.425-20-32 51 32 140 16 (18) 100 4 M16 18 44 27 (28) 69 (70) 161(162) 17.425K-20-32 76 (77) 121 (122)
17.425-24-32 51 40 150 16 (18) 110 4 M16 18 44 27 (28) 69 (70) 161(162) 17.425K-24-32 76 (77) 121 (122)
17.425-32-32 51 50 165 18 125 4 M16 18 44 34 93 185 17.425K-32-32 100 145
17.425-40-32 51 65 185 18 145 4 (8) M16 18 44 37 103 195 17.425K-40-32 110 155
17.425-16-36 60 25 115 16 (18) 85 4 M12 14 53 22 (23) 77 (78) 169 (170) 17.425K-16-36 84 (85) 129 (130)
17.425-20-36 60 32 140 16 (18) 100 4 M16 18 53 27 (28) 81 (82) 173 (174) 17.425K-20-36 88 (89) 133 (134)
17.425-24-36 60 40 150 16 (18) 110 4 M16 18 53 34 (35) 93 (94) 185 (186) 17.425K-24-36 89 (90) 134 (135)
17.425-32-36 60 50 165 18 125 4 M16 18 53 34 93 185 17.425K-32-36 100 145
17.425-40-36 60 65 185 18 145 4 (8) M16 18 53 37 100 192 17.425K-40-36 107 152
17.425-48-36 60 80 200 20 160 8 M16 18 53 50 118 210 17.425K-48-36 125 170
17.425-20-48 76 32 140 16 (18) 100 4 M16 18 69 27 (28) 106 (107) 198 (199) 17.425K-20-48 113 (114) 158 (159)
17.425-24-48 76 40 150 16 (18) 110 4 M16 18 69 34 (35) 116 (117) 208 (209) 17.425K-24-48 123 (124) 168 (169)
17.425-32-48 76 50 165 18 125 4 M16 18 69 37 120 212 17.425K-32-48 127 172
17.425-40-48 76 65 185 18 145 4 (8) M16 18 69 50 105 197 17.425K-40-48 112 157
17.425-48-48 76 80 200 20 160 8 M16 18 69 37 105 197 17.425K-48-48 112 157
17.425-64-48 76 100 220 20 180 8 M16 18 69 58 121 213 17.425K-64-48 128 173
17.425-24-56 90 40 150 16 (18) 110 4 M16 18 82 37 (38) 125 (126) 217 (218) 17.425K-24-56 132 (131) 177 (176)
17.425-32-56 90 50 165 18 125 4 M16 18 82 50 123 215 17.425K-32-56 130 175
17.425-40-56 90 65 185 18 145 4 (8) M16 18 82 50 123 215 17.425K-40-56 130 175
17.425-48-56 90 80 200 20 160 8 M16 18 82 45 118 210 17.425K-48-56 138 183
17.425-64-56 90 100 220 20 180 8 M16 18 82 69 152 244 17.425K-64-56 160 205
17.425-32-64 102 50 165 18 125 4 M16 18 94 50 145 237 17.425K-32-64 149 197
17.425-40-64 102 65 185 18 145 4 (8) M16 18 94 50 145 237 17.425K-40-64 149 197
17.425-48-64 102 80 200 20 160 8 M16 18 94 60 119 211 17.425K-48-64 123 171
17.425-64-64 102 100 220 20 180 8 M16 18 94 48 134 226 17.425K-64-64 149 197
17.425-80-64 102 125 250 22 210 8 M16 18 94 69 175 267 17.425K-80-64 179 227
17.425-64-96 152 100 220 20 180 8 M16 18 142 56 280 408 17.425K-64-96 167 247
17.425-80-96 152 125 250 22 210 8 M16 18 142 72 197 325 17.425K-80-96 188 268
17.425-96-96 152 150 285 22 240 8 M20 22 142 78 197 325 17.425K-96-96 160 240
17.425-128-96 152 200 340 24 295 12 M20 22 142 97 182 310 17.425K-128-96 190 270

Note
deviating measurements when En flanges are used
