Pressure fittings

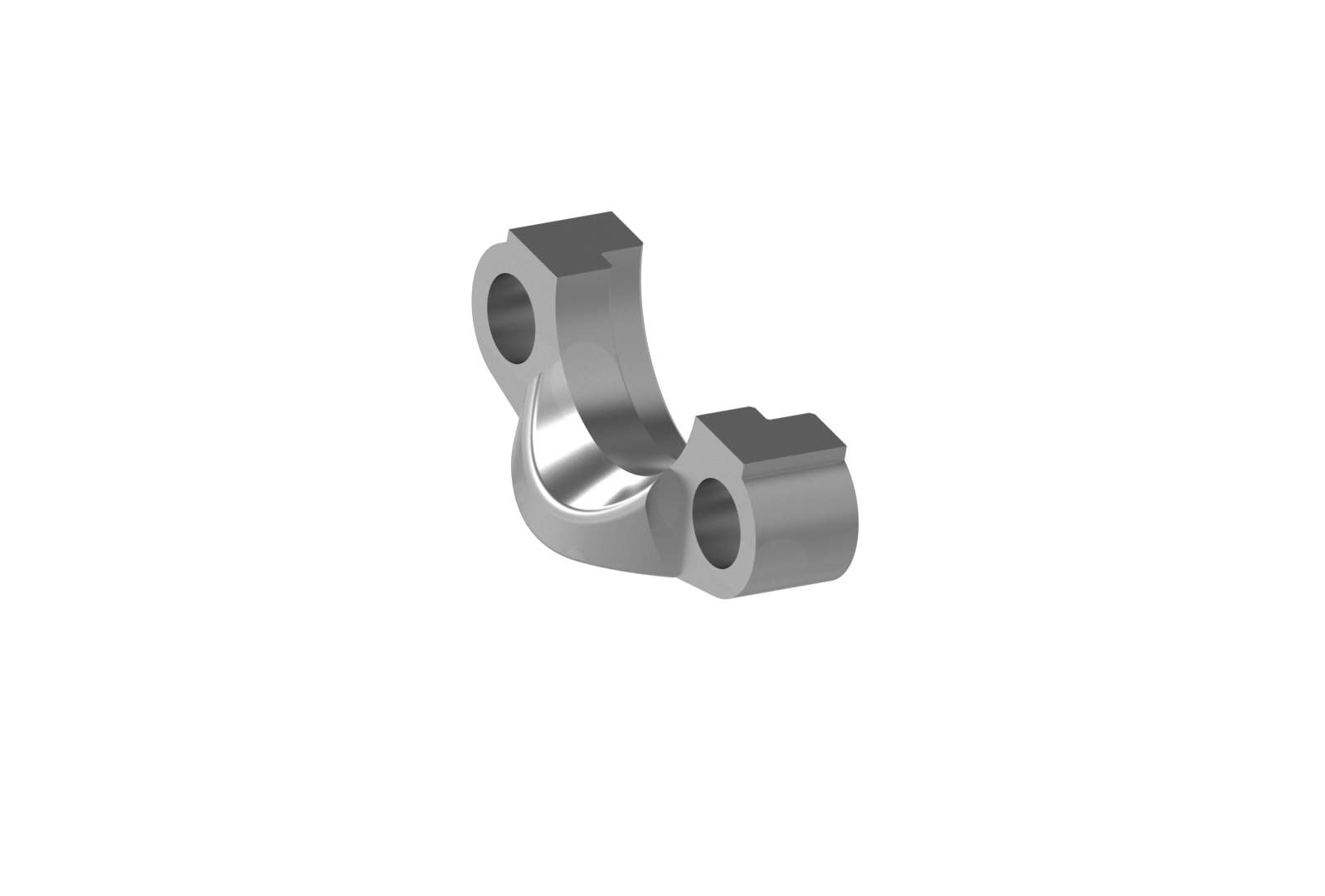

SAE 3000 PSI flange half

Material
Steel

Surface protection
Zinc-electroplated

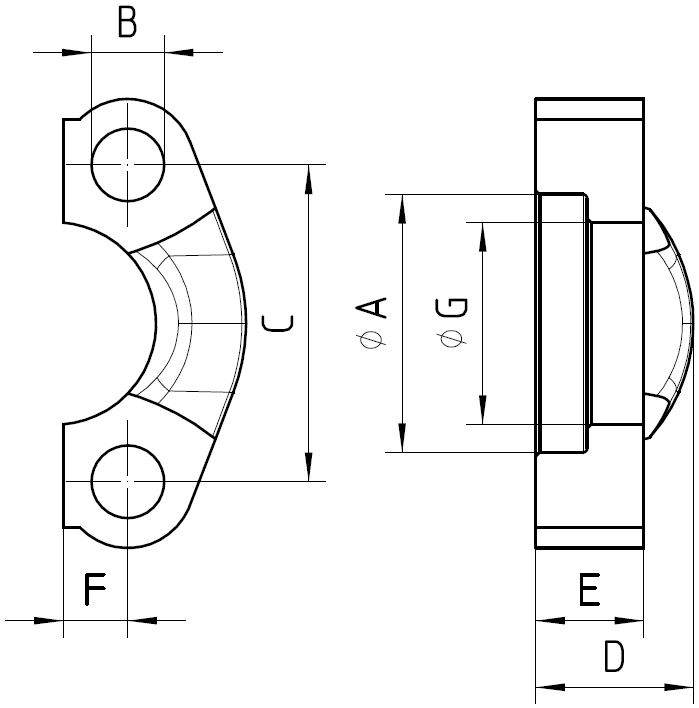

Order no. old Order no. SAE-size in inch A in mm G in mm B in mm C in mm D in mm E in mm strength class in mm for bolt
480-001 480- 8 1/2 31,0 24,3 8,7 38,1 19 13 8,8 M 8x25
480-003 480-12 3/4 38,9 32,1 11,1 47,6 22 14 10,8 M 10x30
480-006 480-16 1 45,2 38,5 13,1 52,4 24 16 10,8 M 10x30
480-008 480-20 1 1/4 51,6 43,7 15,1 58,7 22 16 12,0 M 10x35
480-010 480-20-I 1 1/4 51,6 43,7 15,1 58,7 22 16 10,5 M 10x35
480-011 480-20-II 1 1/4 51,6 43,7 15,1 58,7 22 16 12,5 M 12x35
480-012 480-24 1 1/2 61,1 50,8 17,9 69,9 25 16 13,5 M 12x35
480-014 480-32 2 72,2 62,7 21,4 77,8 26 16 13,5 M 12x35
480-016 480-40 2 1/2 84,9 74,9 25,4 88,9 38 19 13,5 M 12x40
480-019 480-48 3 102,4 90,9 31,0 106,4 41 22 17,0 M 16x45
480-022 480-56 3 1/2 115,1 102,4 34,9 120,6 28 22 17,0 M 16x45
480-024 480-64 4 127,8 115,1 38,9 130,2 35 25 17,0 M 16x50
480-026 480-80 5 153,2 140,5 46,0 152,4 41 28 17,0 M 16x50
