Pressure fittings

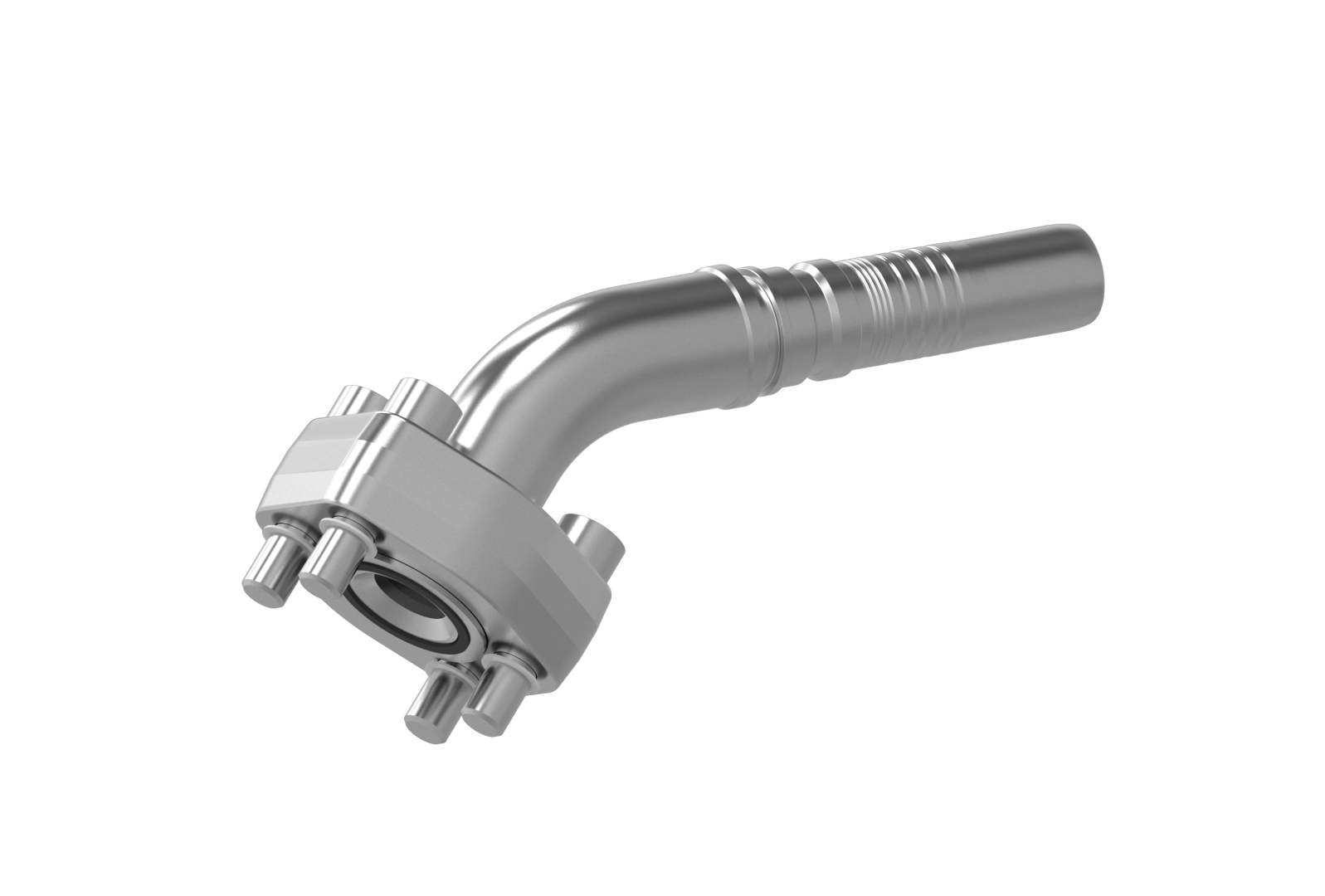

SFS 45°

Connection
SAE flange 6000 PSI (S series)

Standard
ISO 6162-2

Application
560 bar flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

Order no. DN in mm Flange in inch C in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm Z in mm S1 in mm S2 in mm T1 in mm T2 in mm cheese-head screw 4x DIN EN ISO 4762 12.9 Kantseal ring 90 Shore
8.851-12-12 19 3/4 41,3 14,0 37 93 163 28,5 ± 0,2 23,8 50,80 62,0 +0,9 -0,5 73,0 +0,9 -0,5 M10x45 24,99x3,40
8.851-16-12 19 1 48,0 14,0 38 93 164 28,5 ± 0,2 27,8 57,22 73,5 +0,9 -0,5 82,5 +0,9 -0,5 M12x50 32,99x3,40
8.851-16-16 25 1 48,0 19,0 46 134 222 28,5 ± 0,2 27,8 57,22 73,5 +0,9 -0,5 82,5 +0,9 -0,5 M12x50 32,99x3,40
8.851-20-16 25 1 1/4 54,0 19,0 51 137 225 35,5 ± 0,3 31,8 66,70 83,5 +1,1 -0,5 96,5 +1,1 -0,5 M14x55 37,69x3,40
8.851-20-20 31 1 1/4 54,0 24,0 61 134 243 35,5 ± 0,3 31,8 66,70 83,5 +1,1 -0,5 96,5 +1,1 -0,5 M14x55 37,69x3,40

Product information last updated on 20.06.2018 12:01:48
