Pressure fittings

ORFS 45°

Connection Flat sealing head with UN nut
Standard ISO 8434-3
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

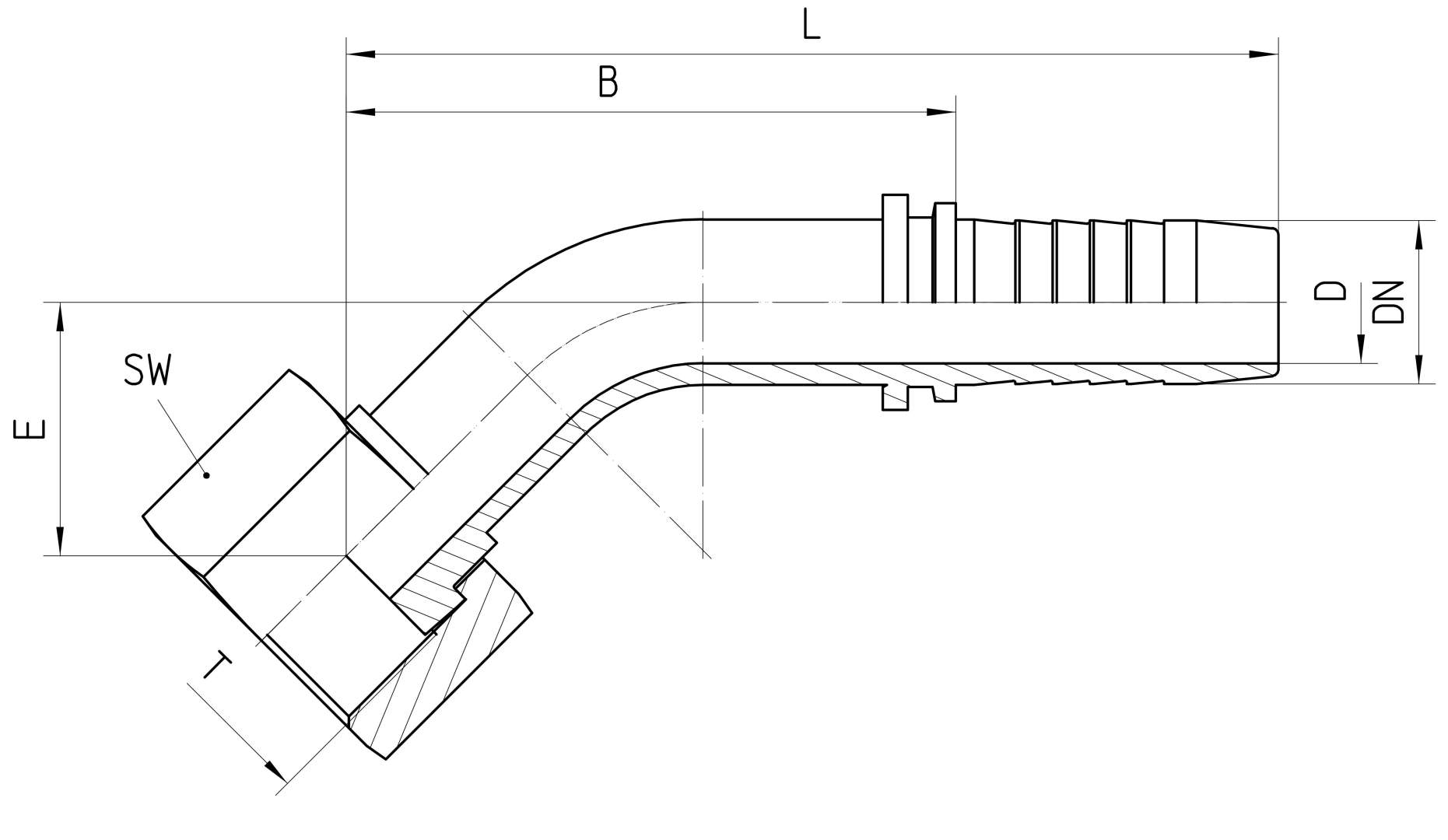

Order no. DN in mm T in UNF/UN/UNS SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.345-04-04 06 9/16-18 UNF 17 4,0 13 35 62
1.345-06-04 06 11/16-16 UN 22 4,0 13 35 62
1.345-06-05 08 11/16-16 UN 22 5,5 15 37 64
1.345-04-06 10 9/16-18 UNF 17 4,0 18 50 80
1.345-06-06 10 11/16-16 UN 22 6,6 15 36 66
1.345-08-06 10 13/16-16 UN 24 7,0 15 37 67
1.345-06-08 12 11/16-16 UN 22 6,6 21 63 94
1.345-08-08 12 13/16-16 UN 24 10,0 20 49 80
1.345-10-08 12 1-14 UNS 30 10,0 21 47 78
1.345-08-10 16 13/16-16 UN 24 10,0 25 66 100
1.345-10-10 16 1-14 UNS 30 12,6 27 60 94
1.345-12-10 16 1 3/16-12 UN 36 12,6 27 62 95
1.345-12-12 19 1 3/16-12 UN 36 14,8 29 75 114
1.345-16-12 19 1 7/16-12 UN 41 14,8 33 75 114
1.345-16-16 25 1 7/16-12 UN 41 21,0 37 83 129
1.345-20-16 25 1 11/16-12 UN 50 21,0 35 83 129
1.345-20-20 31 1 11/16-12 UN 50 26,5 45 114 168
1.345-24-20 31 2-12 UN 60 26,5 45 114 168
1.345-24-24 38 2-12 UN 60 32,8 55 122 179

Product information last updated on 11.01.2023 09:40:07
