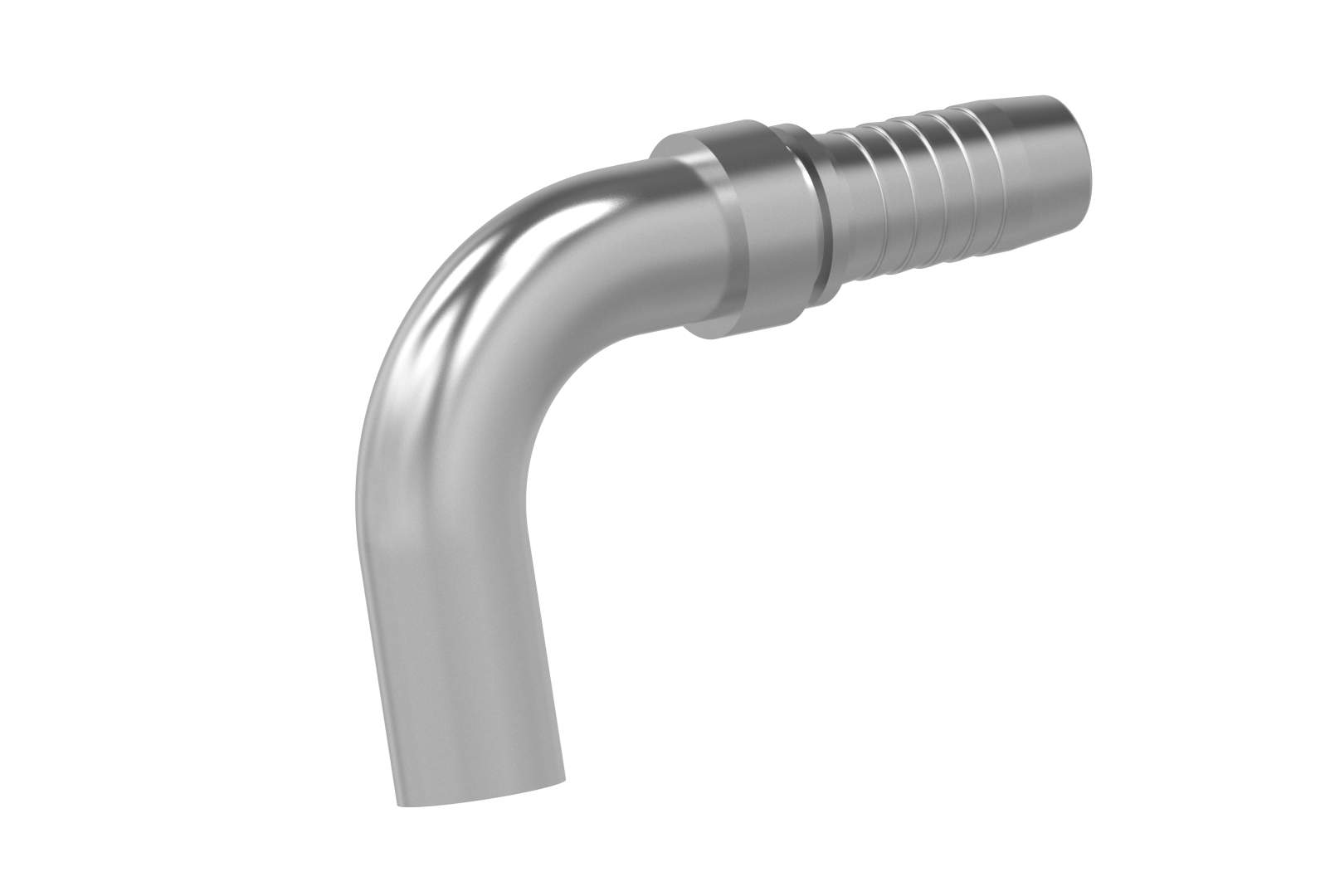

BEL 90°

Connection Pipe connection for cutting ring coupling L series
Standard ISO 8434-1
Application TE / SN / SC / SN-K / PTFE flexible tubes
Material Steel
Surface protection Zinc-electroplated

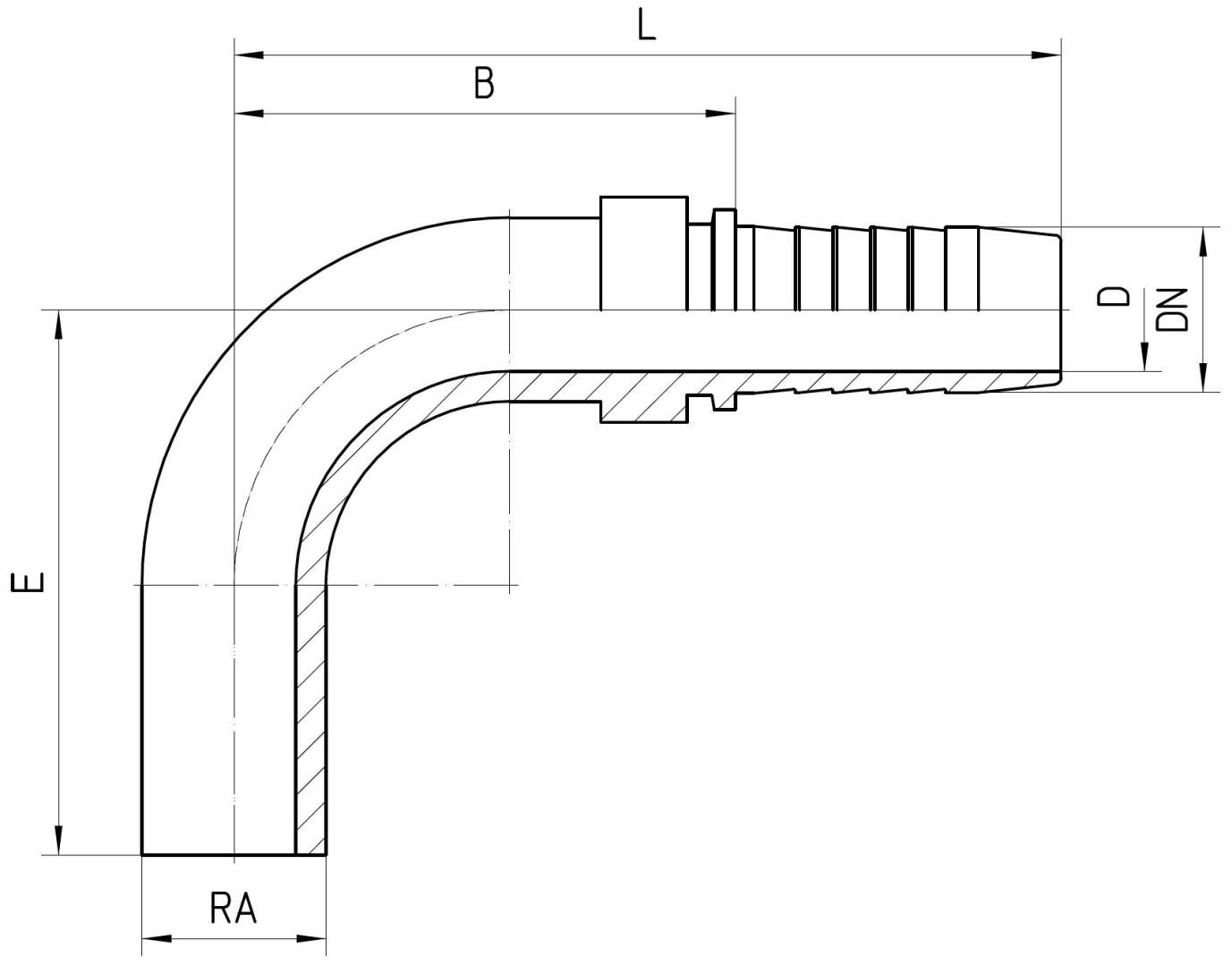

Order no. DN in mm RA min. D in mm E±3 in mm B±3 in mm L±3 in mm
1.109-03-04 06 6L 3,0 35 36 63
1.109-04-04 06 8L 4,0 38 38 65
1.109-05-04 06 10L 4,0 40 40 67
1.109-04-05 08 8L 5,0 35 42 69
1.109-05-05 08 10L 5,5 40 41 68
1.109-06-05 08 12L 5,5 42 47 74
1.109-05-06 10 10L 7,0 40 38 68
1.109-06-06 10 12L 7,0 42 45 75
1.109-08-06 10 15L 7,0 45 51 81
1.109-06-08 12 12L 7,0 42 48 79
1.109-08-08 12 15L 10,0 45 54 85
1.109-10-08 12 18L 10,0 60 62 93
1.109-10-10 16 18L 13,0 60 61 95
1.109-12-12 19 22L 15,0 65 71 110
1.109-16-16 25 28L 21,0 80 79 125
1.109-20-20 31 35L 27.0 90 91 145
1.109-24-24 38 42L 32.0 100 101 158
