DKOL 45°

Connection
Sealing head 24° outside cone O-ring sealing with metric nut L series

Standard
ISO 8434-1

Application
TE / SN / SC / SN-K / PTFE flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

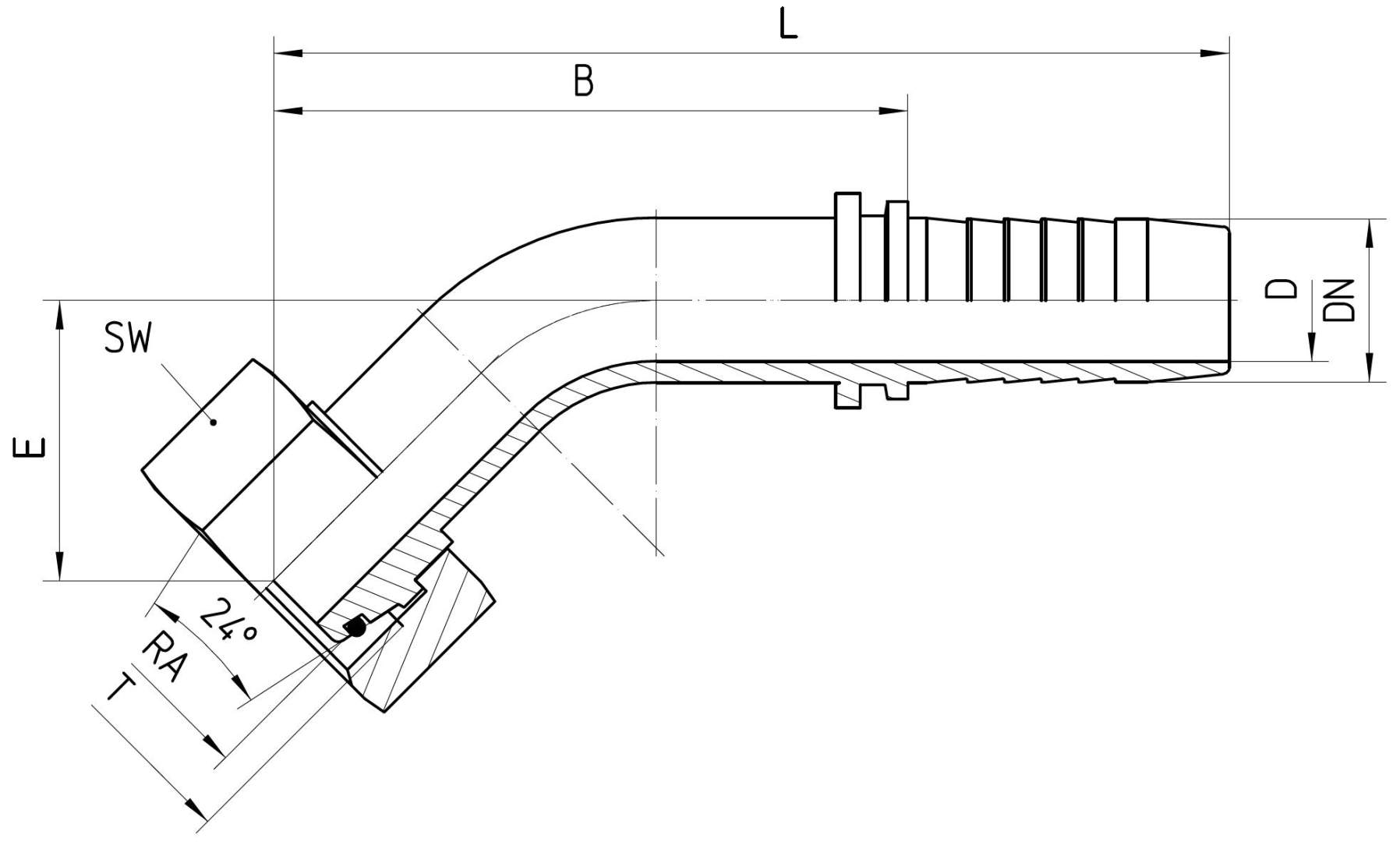

Order no. DN in mm RA T SW in mm min. D in mm E±3 in mm B±3 in mm L±3 in mm Note
1.055-03-04 06 6L M 12x1.5 14 2,8 15 40 63
1.055-04-04M 06 8L M 14x1.5 17 4,0 16 41 68
1.055-05-04 06 10L M 16x1.5 19 4,0 19 38 65
1.055-04-05 08 8L M 14x1.5 17 4,0 18 44 68
1.055-05-05M 08 10L M 16x1.5 19 5,5 18 41 68
1.055-06-05 08 12L M 18x1.5 22 5,5 20 45 69
1.055-05-06 10 10L M 16x1.5 19 5,5 19 40 70
1.055-06-06M 10 12L M 18x1.5 22 7,0 18 40 70
1.055-08-06 10 15L M 22x1.5 27 7,0 19 36 66
1.055-06-08 12 12L M 18x1.5 22 8,0 23 52 83
1.055-08-08M 12 15L M 22x1.5 27 10,0 23 52 83
1.055-10-08 12 18L M 26x1.5 32 10,0 23 50 81
1.055-08-10 16 15L M 22x1.5 27 10,0 28 65 99
1.055-10-10M 16 18L M 26x1.5 32 13,0 25 64 98
1.055-12-10 16 22L M 30x2.0 36 12,6 28 64 98
1.055-10-12 19 18L M 26x1.5 32 11,0 34 77 116
1.055-12-12 19 22L M 30x2.0 36 14,8 34 77 116
1.055-16-12 19 28L M 36x2.0 41 14,8 32 75 114
1.055-12-16 25 22L M 30x2.0 36 14,0 38 83 129
1.055-16-16 25 28L M 36x2.0 41 21,0 37 82 128
1.055-20-16 25 35L M 45x2.0 50 21,0 39 83 129
1.055-16-20 31 28L M 36x2.0 41 21,1 40 115 169
1.055-20-20 31 35L M 45x2.0 50 26,5 45 107 162
1.055-24-20 31 42L M 52x2.0 60 26,5 39 115 163
1.055-20-24 38 35L M 45x2.0 50 27,0 51 112 170
1.055-24-24 38 42L M 52x2.0 60 32,8 58 120 181
1.055-24-32 50 42L M 52x2.0 60 33,0 55 135,3 210 *

Note
* wire nut

Product information last updated on 20.06.2018 12:01:48
