DKM 45°

Connection
Sealing head 60° outside cone with metric nut LL series

Standard
DIN 3863

Application
14A / 17A flexible tubes

Material
Steel

Surface protection
Zinc-electroplated

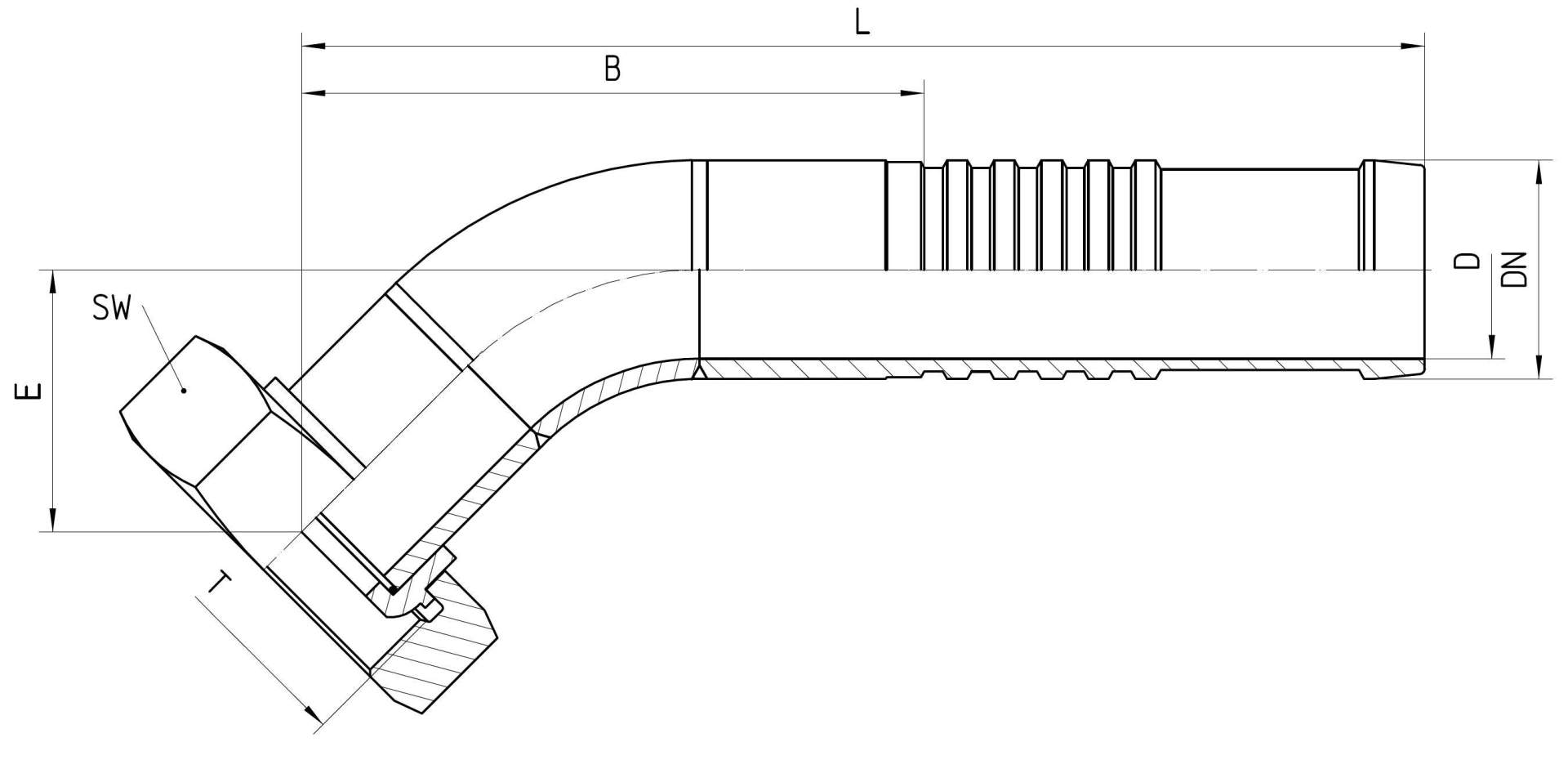

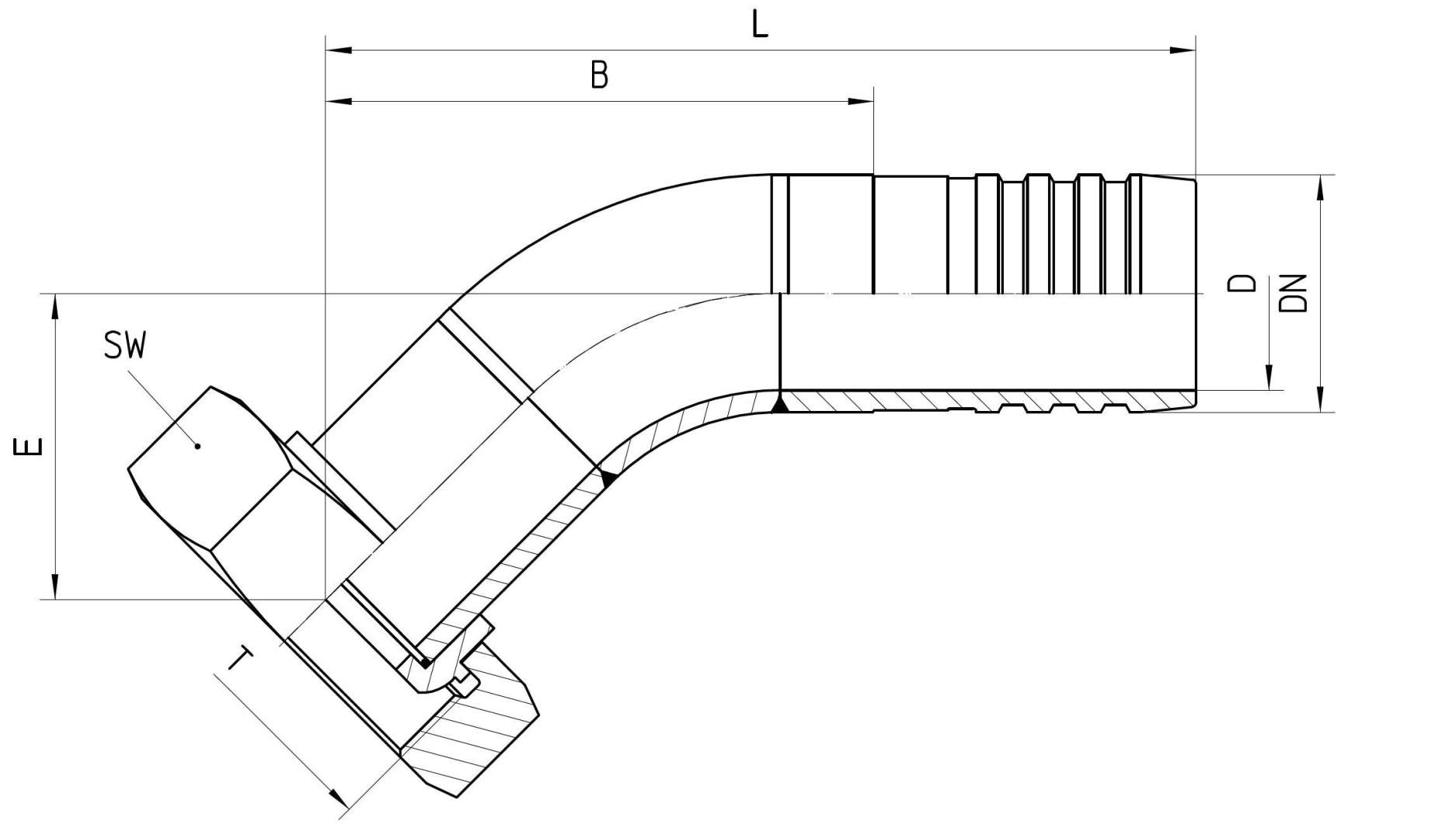

Order no. DN in mm T SW in mm D in mm E±3 in mm B±3 in mm L±3 in mm Order No. B±3 in mm L±3 in mm
17.015-12-12 19 M30x1.5 36 14 20 60 140 17.015K-12-12 56 100
17.015-16-12 19 M38x1.5 46 14 20 60 140 17.015K-16-12 56 100
17.015-12-16 25 M30x1.5 36 19 45 85 165 17.015K-12-16 81 125
17.015-16-16 25 M38x1.5 46 19 30 70 150 17.015K-16-16 66 110
17.015-20-16 25 M45x1.5 55 19 30 70 150 17.015K-20-16 66 110
17.015-12-20 31 M30x1.5 36 26 47 90 170 17.015K-12-20 86 130
17.015-16-20 31 M38x1.5 46 26 47 90 170 17.015K-16-20 86 130
17.015-20-20 31 M45x1.5 55 26 52 80 160 17.015K-20-20 76 120
17.015-24-20 31 M52x1.5 60 26 37 85 165 17.015K-24-20 81 125
17.015-16-24 38 M38x1.5 46 32 49 100 180 17.015K-16-24 96 140
17.015-20-24 38 M45x1.5 55 32 49 100 180 17.015K-20-24 96 140
17.015-24-24 38 M52x1.5 60 32 39 90 170 17.015K-24-24 86 130
17.015-32-24 38 M65x2.0 75 32 39 90 170 17.015K-32-24 86 130
17.015-20-32 51 M45x1.5 55 44 57 100 190 17.015K-20-32 105 150
17.015-24-32 51 M52x1.5 60 44 54 133 223 17.015K-24-32 105 150
17.015-32-32 51 M65x2.0 75 44 41 123 213 17.015K-32-32 90 135
17.015-40-32 51 M78x2.0 90 44 50 95 185 17.015K-40-32 100 145
17.015-24-36 60 M52x1.5 60 53 45 100 190 17.015K-24-36 105 150
17.015-32-36 60 M65x2.0 75 53 52 100 190 17.015K-32-36 105 150
17.015-40-36 60 M78x2.0 90 53 42 84 176 17.015K-40-36 95 140
17.015-48-36 60 M90x2.0 100 53 52 115 205 17.015K-48-36 120 165
17.015-32-48 76 M 65x2.0 75 69 65 140 230 17.015K-32-48 145 173
17.015-40-48 76 M 78x2.0 90 69 60 165 215 17.015K-40-48 115 160
17.015-48-48 76 M 90x2.0 100 69 54 105 195 17.015K-48-48 110 155
17.015-56-48 76 M100x2.0 110 69 60 110 215 17.015K-56-48 115 160
17.015-40-56 90 M 78x2.0 90 82 64 148 238 17.015K-40-56 153 198
17.015-48-56 90 M 90x2.0 100 82 75 160 250 17.015K-48-56 165 210
17.015-56-56 90 M100x2.0 110 82 75 160 250 17.015K-56-56 165 210
17.015-48-64 102 M 90x2.0 100 94 75 138 228 17.015K-48-64 140 188
17.015-56-64 102 M100x2.0 110 94 80 160 250 17.015K-56-64 162 210
