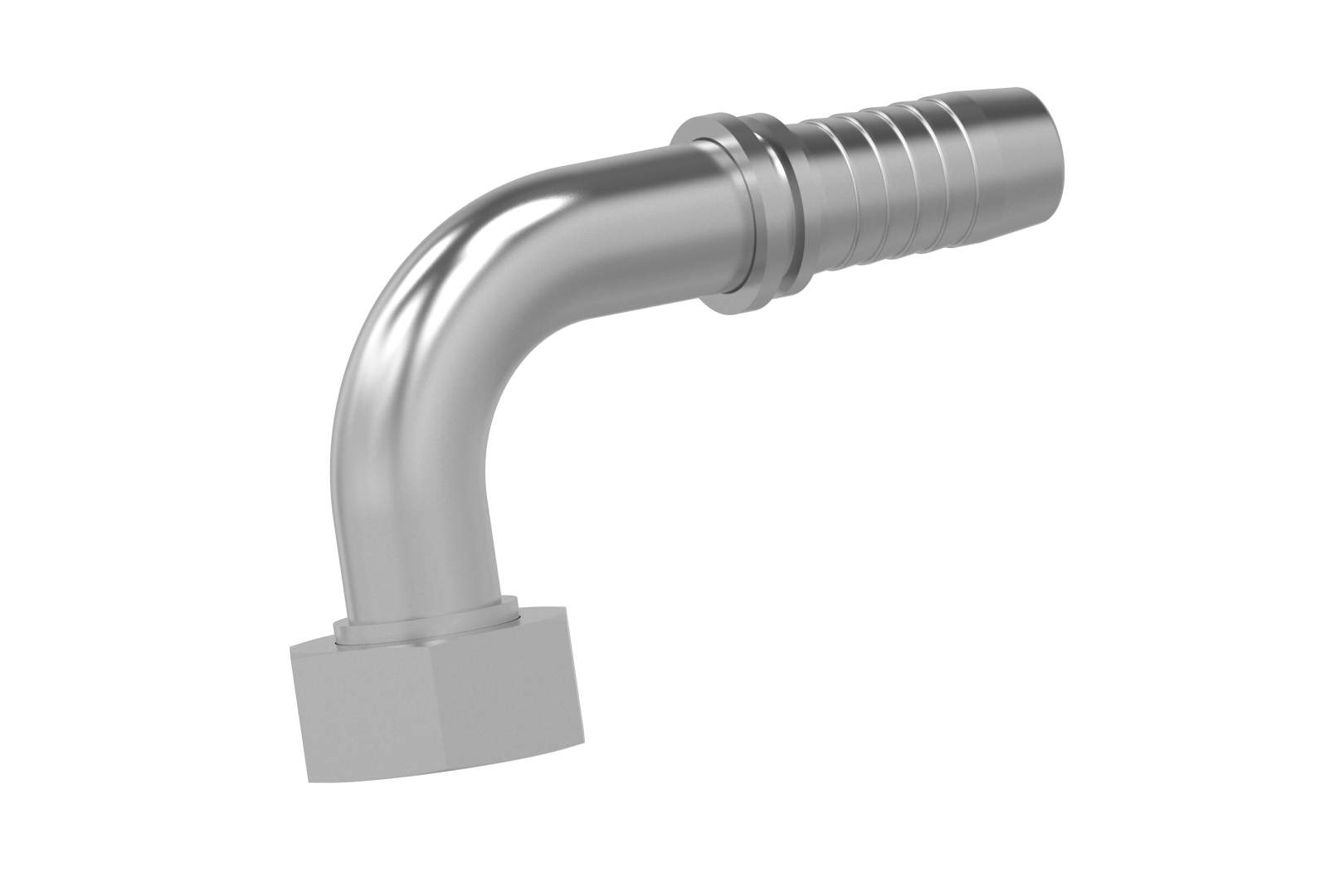

Connection | Sealing head 24° outside cone O-ring sealing with metric nut L series |
Standard | ISO 8434-1 |
Application | TE / SN / SC / SN-K / PTFE flexible tubes |
Material | Steel |
Surface protection | Zinc-electroplated |
Note | * wire nut |

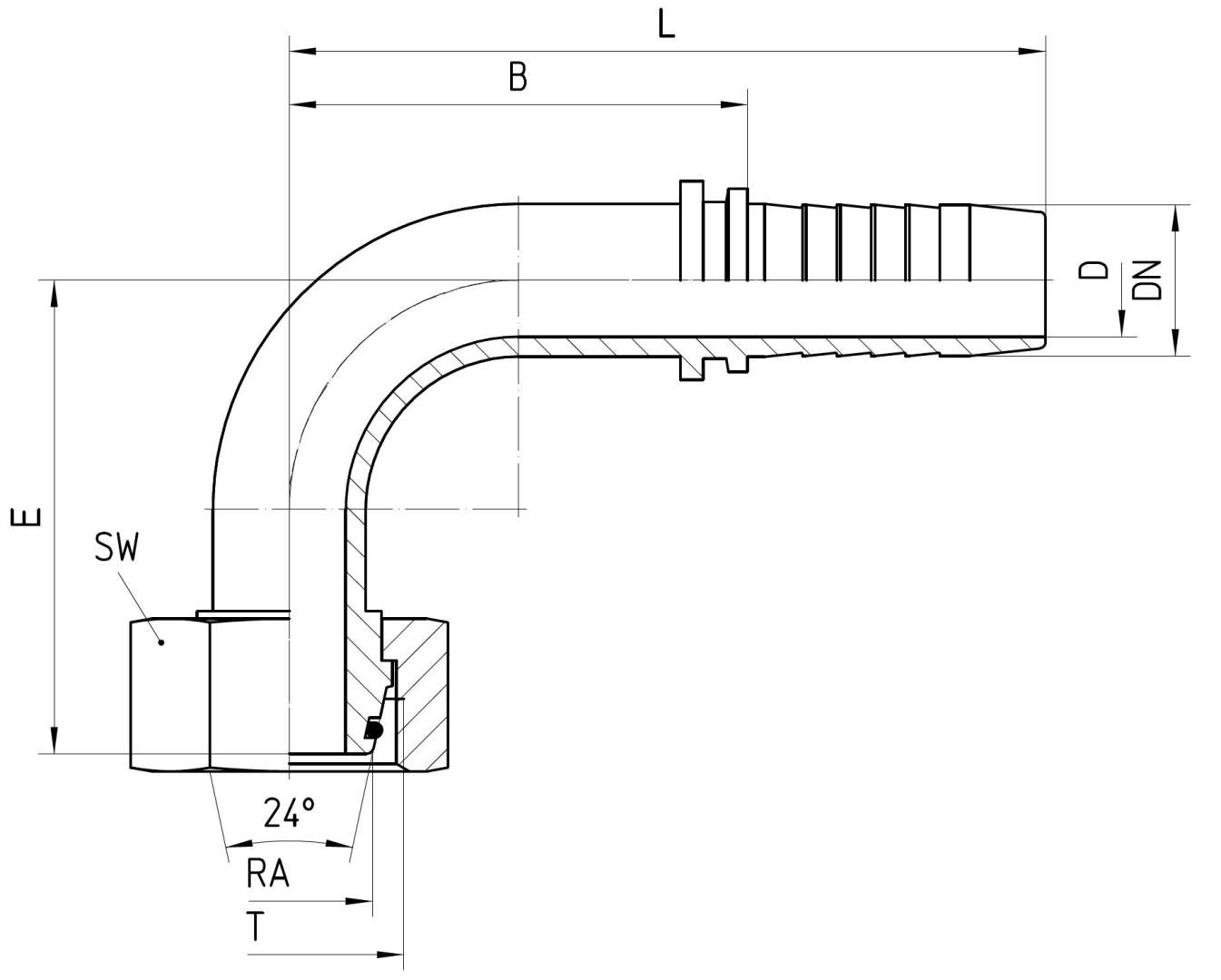

Order no. | DN in mm | RA | T | SW in mm | min. D in mm | E±3 in mm | B±3 in mm | L±3 in mm | Note |
---|---|---|---|---|---|---|---|---|---|
1.059-03-04 | 6 | 6L | M 12x1.5 | 14 | 2,8 | 28 | 26 | 53 | |
1.059-04-04M | 6 | 8L | M 14x1.5 | 17 | 4,0 | 31 | 23 | 50 | |
1.059-05-04 | 6 | 10L | M 16x1.5 | 19 | 4,0 | 33 | 26 | 53 | |
1.059-04-05 | 8 | 8L | M 14x1.5 | 17 | 4,0 | 33 | 30 | 57 | |
1.059-05-05M | 8 | 10L | M 16x1.5 | 19 | 5,5 | 36 | 30 | 57 | |
1.059-06-05 | 8 | 12L | M 18x1.5 | 22 | 5,5 | 35 | 30 | 57 | |
1.059-05-06 | 10 | 10L | M 16x1.5 | 19 | 5,5 | 35 | 30 | 60 | |
1.059-06-06M | 10 | 12L | M 18x1.5 | 22 | 7,0 | 34 | 30 | 60 | |
1.059-08-06 | 10 | 15L | M 22x1.5 | 27 | 7,0 | 35 | 32 | 62 | |
1.059-06-08 | 12 | 12L | M 18x1.5 | 22 | 8,0 | 44 | 42 | 73 | |
1.059-08-08M | 12 | 15L | M 22x1.5 | 27 | 10,0 | 43 | 42 | 73 | |
1.059-10-08 | 12 | 18L | M 26x1.5 | 32 | 10,0 | 42 | 42 | 73 | |
1.059-08-10 | 16 | 15L | M 22x1.5 | 27 | 10,0 | 55 | 50 | 84 | |
1.059-10-10M | 16 | 18L | M 26x1.5 | 32 | 13,0 | 48 | 47 | 81 | |
1.059-12-10 | 16 | 22L | M 30x2.0 | 36 | 12,6 | 54 | 52 | 86 | |
1.059-10-12 | 19 | 18L | M 26x1.5 | 32 | 11,0 | 64 | 60 | 99 | |
1.059-12-12 | 19 | 22L | M 30x2.0 | 36 | 14,8 | 62 | 61 | 100 | |
1.059-16-12 | 19 | 28L | M 36x2.0 | 41 | 14,8 | 63 | 60 | 99 | |
1.059-12-16 | 25 | 22L | M 30x2.0 | 36 | 14,0 | 72 | 68 | 114 | |
1.059-16-16 | 25 | 28L | M 36x2.0 | 41 | 21,0 | 74 | 66 | 112 | |
1.059-20-16 | 25 | 35L | M 45x2.0 | 50 | 21,0 | 74 | 68 | 114 | |
1.059-16-20 | 31 | 28L | M 36x2.0 | 41 | 21,1 | 87 | 94 | 148 | |
1.059-20-20 | 31 | 35L | M 45x2.0 | 50 | 26,5 | 90 | 87 | 141 | |
1.059-24-20 | 31 | 42L | M 52x2.0 | 60 | 26,5 | 89 | 87 | 141 | |
1.059-20-24 | 38 | 35L | M 45x2.0 | 50 | 27,0 | 106 | 105 | 162 | |
1.059-24-24 | 38 | 42L | M 52x2.0 | 60 | 32,8 | 103 | 105 | 162 | |
1.059-24-32 | 51 | 42L | M52x2.0 | 60 | 32,0 | 130 | 130 | 205 | * |
